Cruise Control System
›
Cruise Control System
›
Location
Cruise Control System: Location

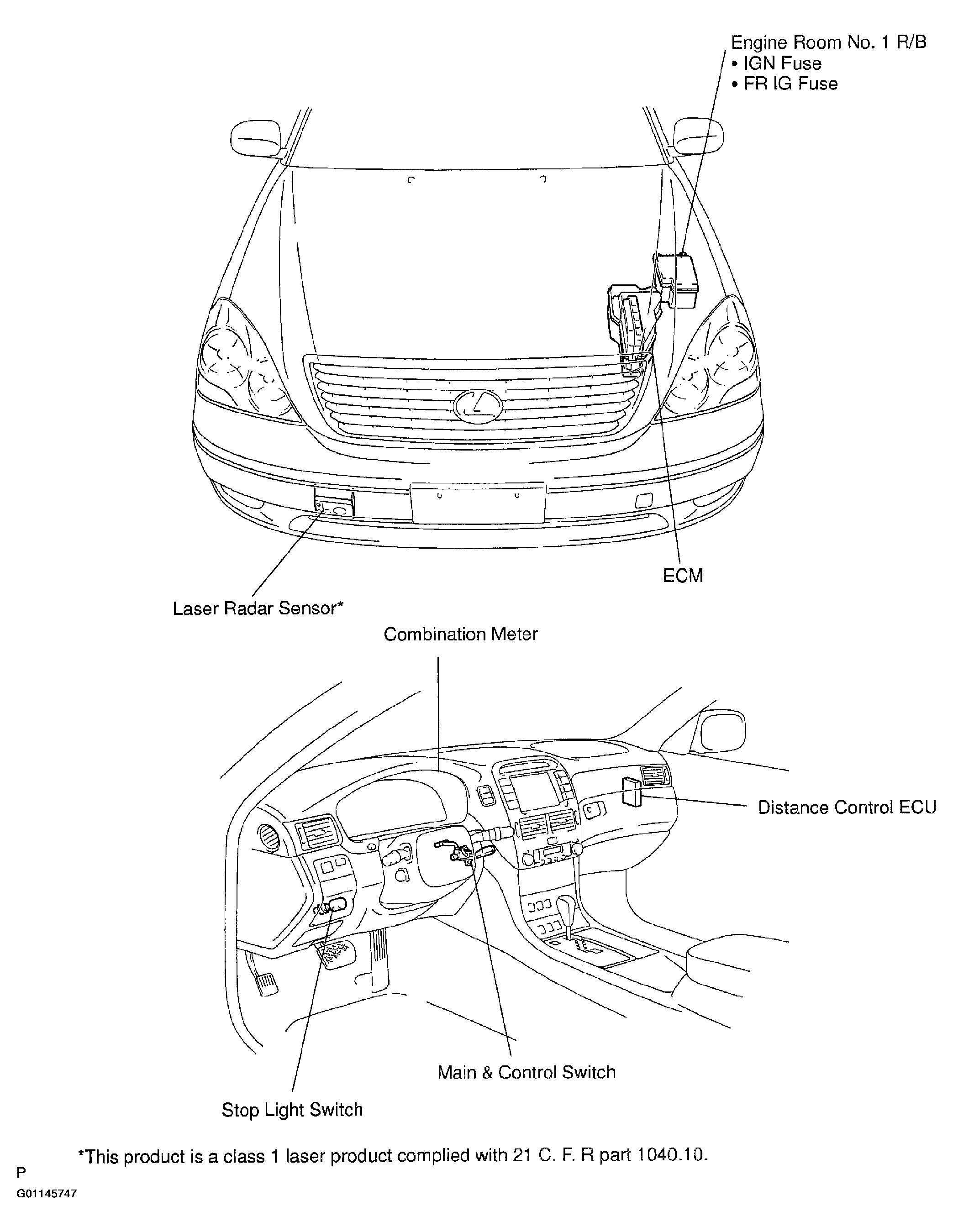

Fig 1: Locating Cruise Control System Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
