Front Bumper: Components

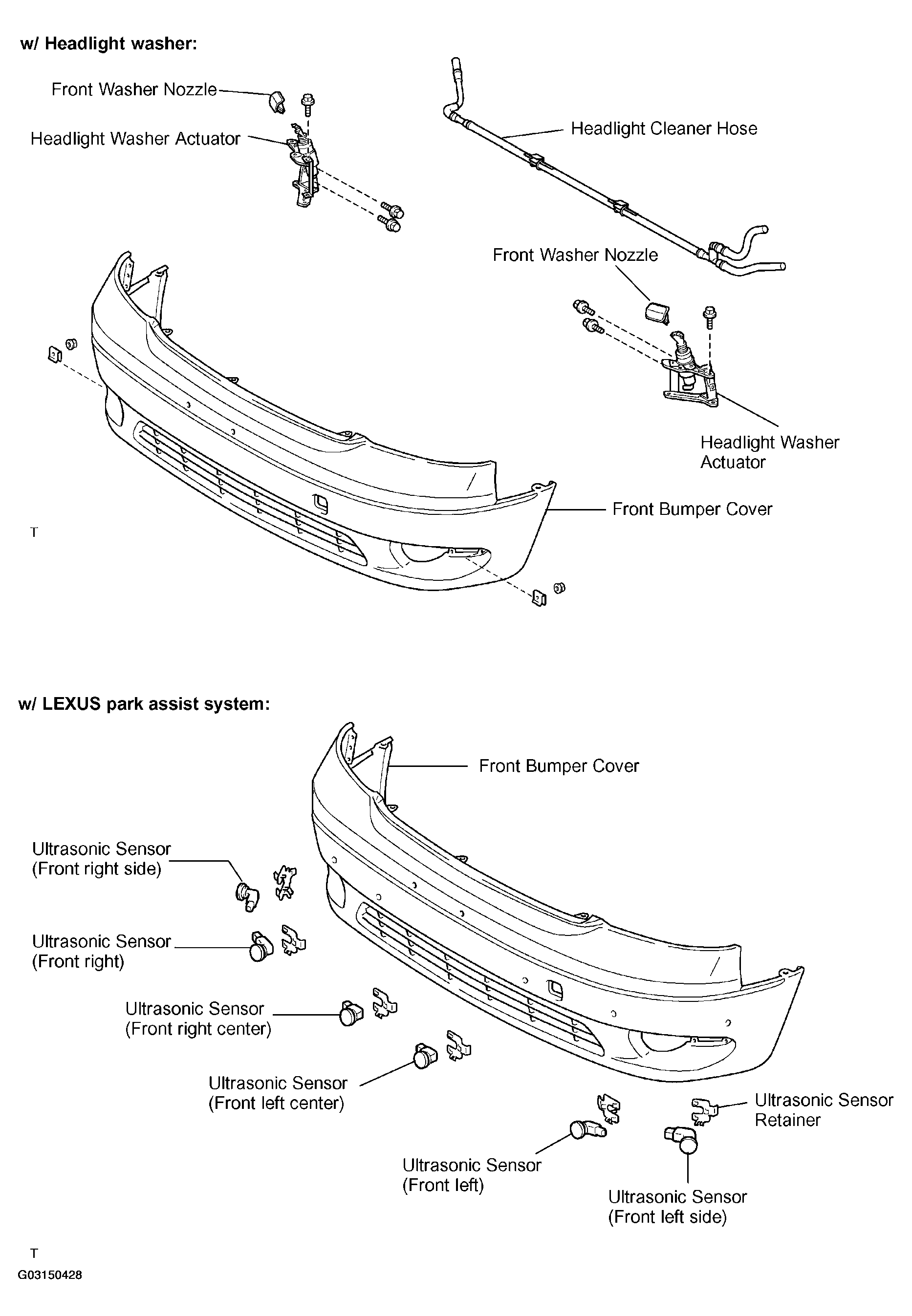

Fig 1: Exploded View Of Front Bumper Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Exploded View Of Front Bumper Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
