Hood Lock Control: Components

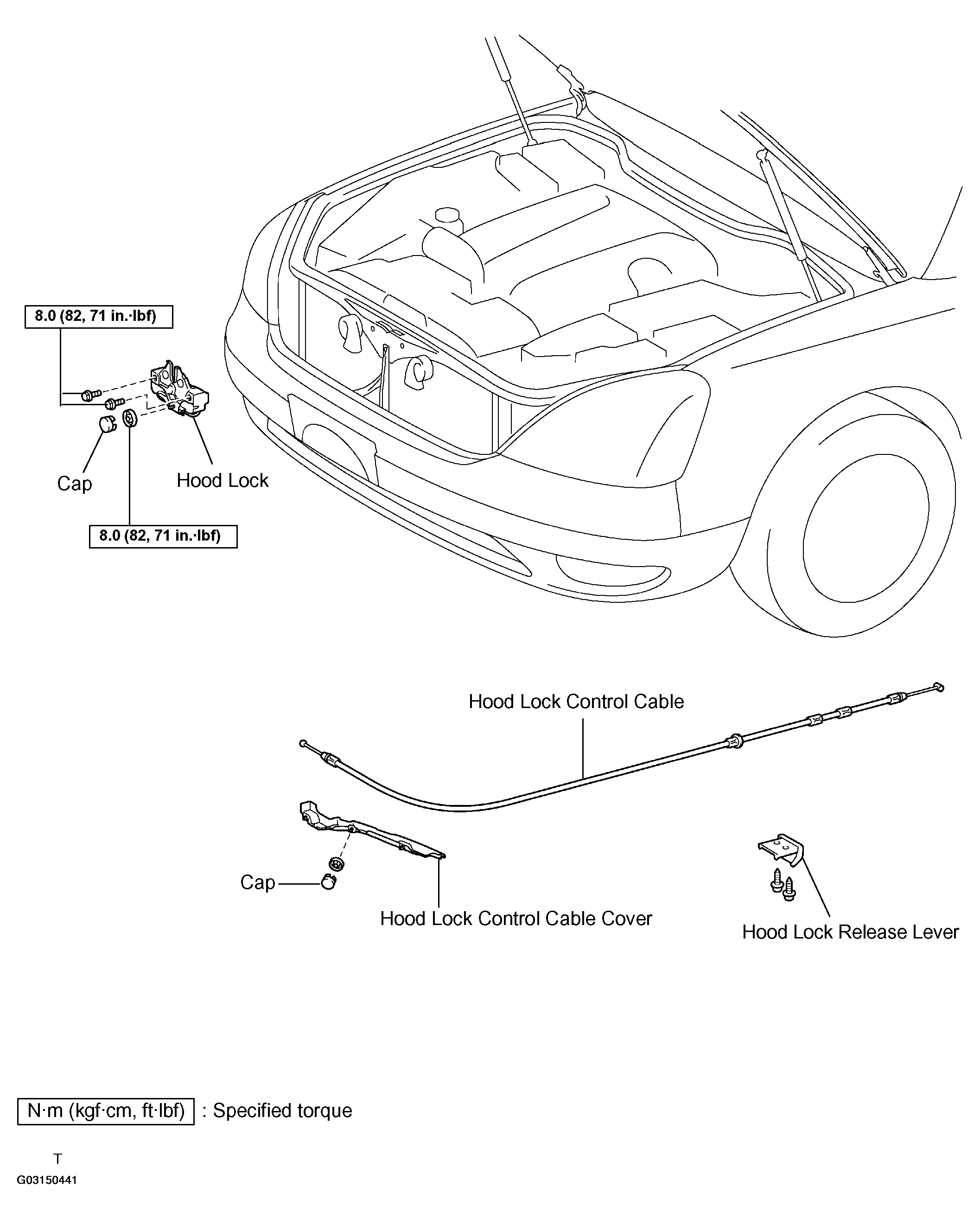

Fig 1: Identifying Hood Lock Control Components
G03150441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
