Exterior/Interior Trim: Hood: Components

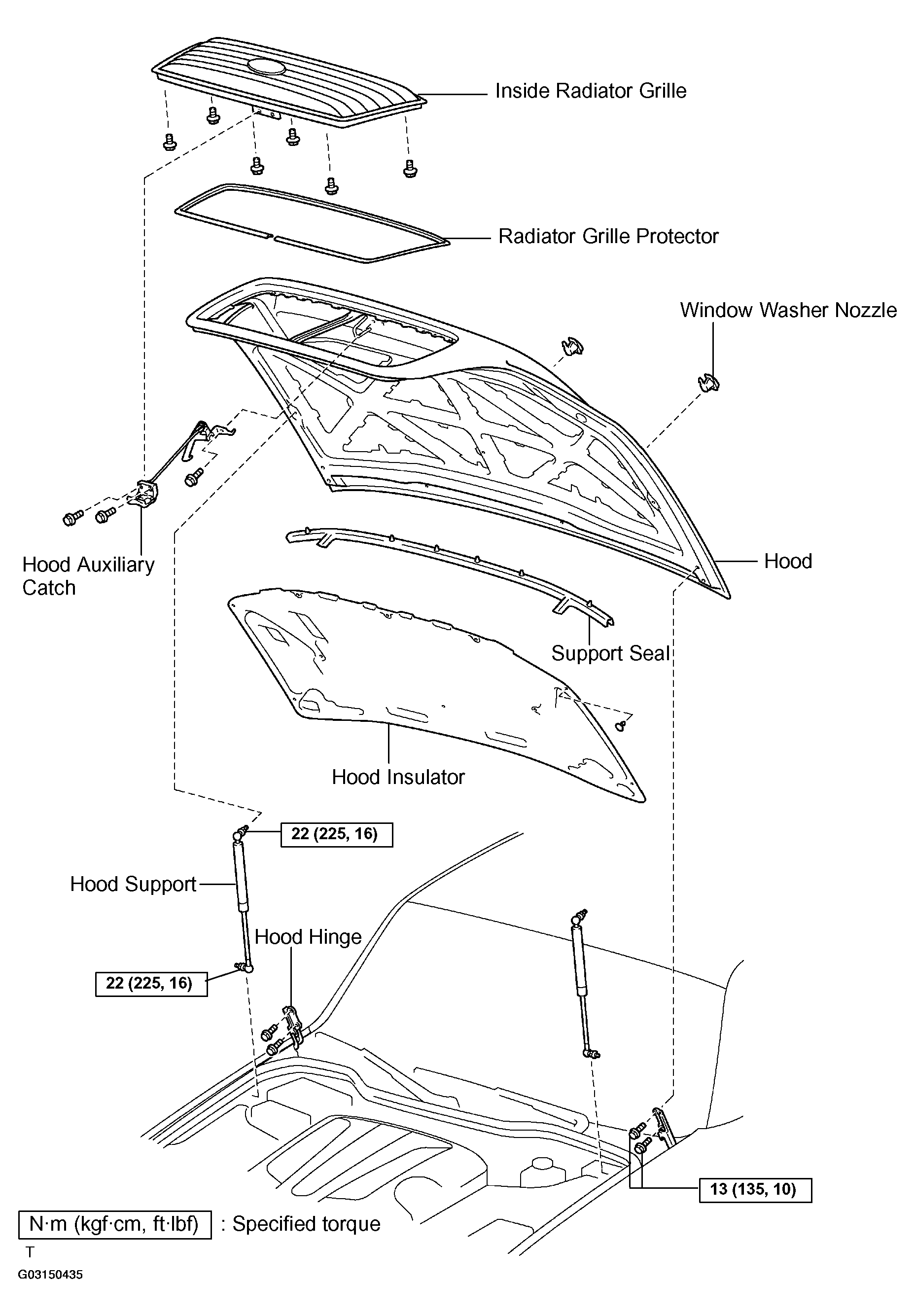

Fig 1: Identifying Hood Components
G03150435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
