Sliding Roof: Components

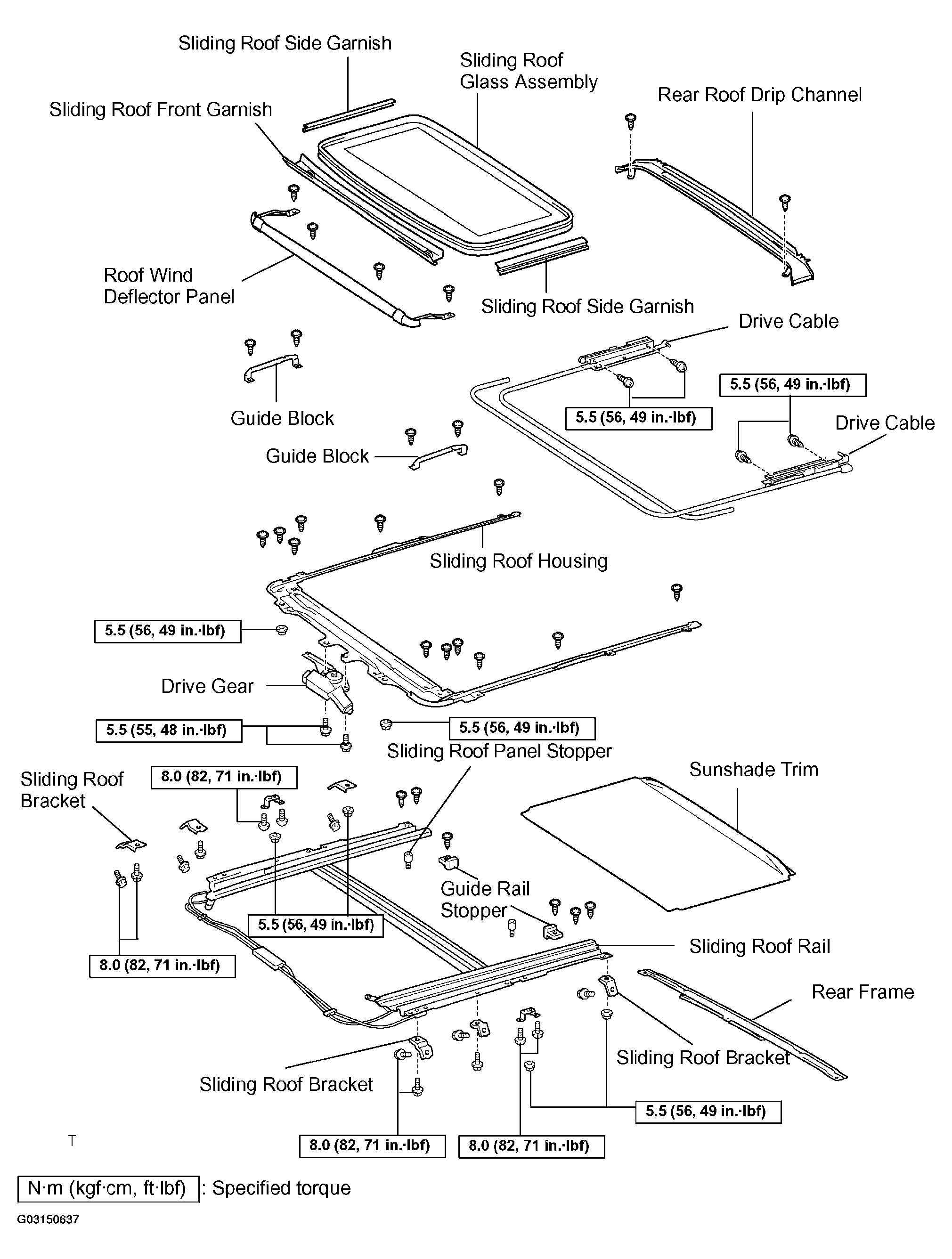

Fig 1: Exploded View Of Sliding Roof Components

G03150637

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
