Sliding Roof: Disassembly

REMOVE GUIDE RAIL STOPPER
1. Remove the screw and stopper.
2. Employ the same manner described above to the other side.
REMOVE SUNSHADE TRIM

Fig 1: Removing Sunshade Trim
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ROOF DRIP CHANNEL
Remove the roof drip channel as shown in the illustration.

Fig 2: Removing Roof Drip Channel
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR FRAME
Remove the 4 screws and rear frame.

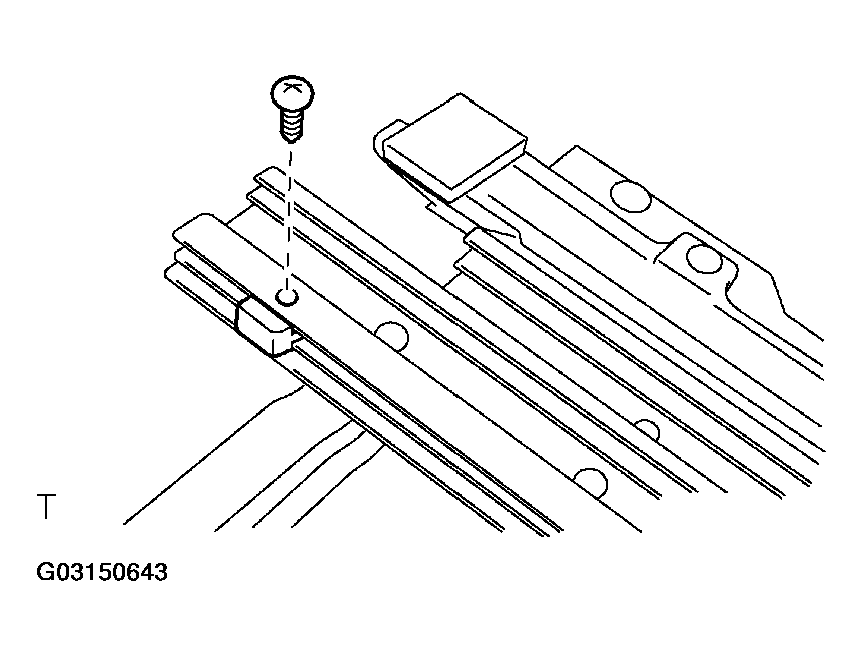

REMOVE DRIVE CABLE
1. Remove the screw and sliding roof panel stopper.

  Fig 3: Removing Drive Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Slide the drive cable rearward, then remove it.
3. Employ the same manner described above to the other side.

  Fig 4: Sliding Drive Cable Rearward
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

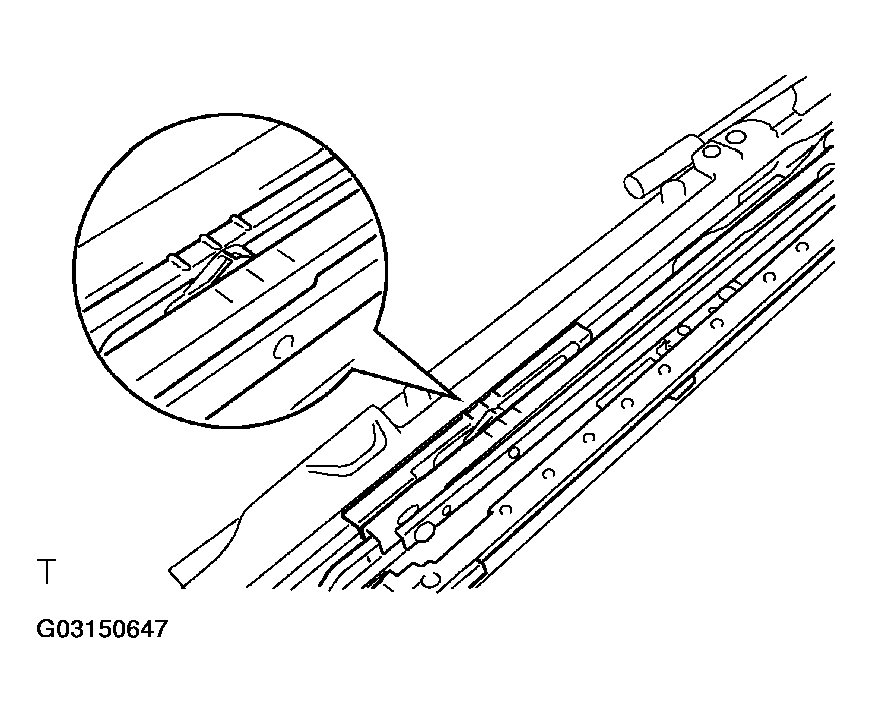

  NOTE: At the time of reassembly, please refer to the following items.
  - Adjust the drive cable to a closed and tilted down position.
  - Slide the cable forward or backward to align the 2 marks as shown in the illustration.
  - Slide the cable to the forefront with your hand.

    Fig 5: Sliding Drive Cable Forward
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

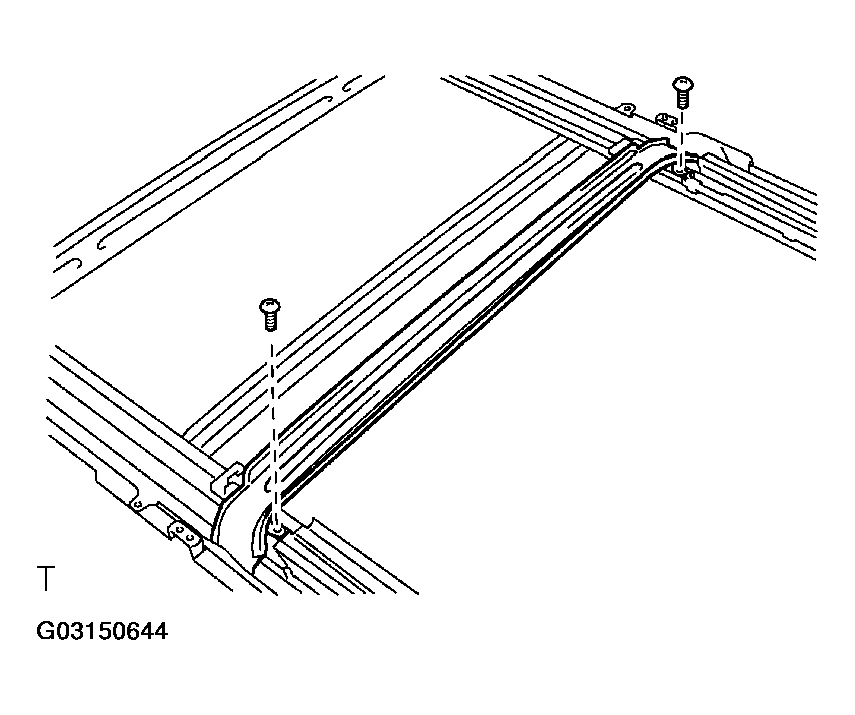

REMOVE ROOF WIND DEFLECTOR PANEL
Remove the 4 screws and roof wind deflector panel.

Fig 6: Removing Roof Wind Deflector Panel
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE GUIDE BLOCK
1. Remove the 2 screws and guide block.
2. Employ the same manner described above to the other side.
REMOVE 2 CUSHIONS

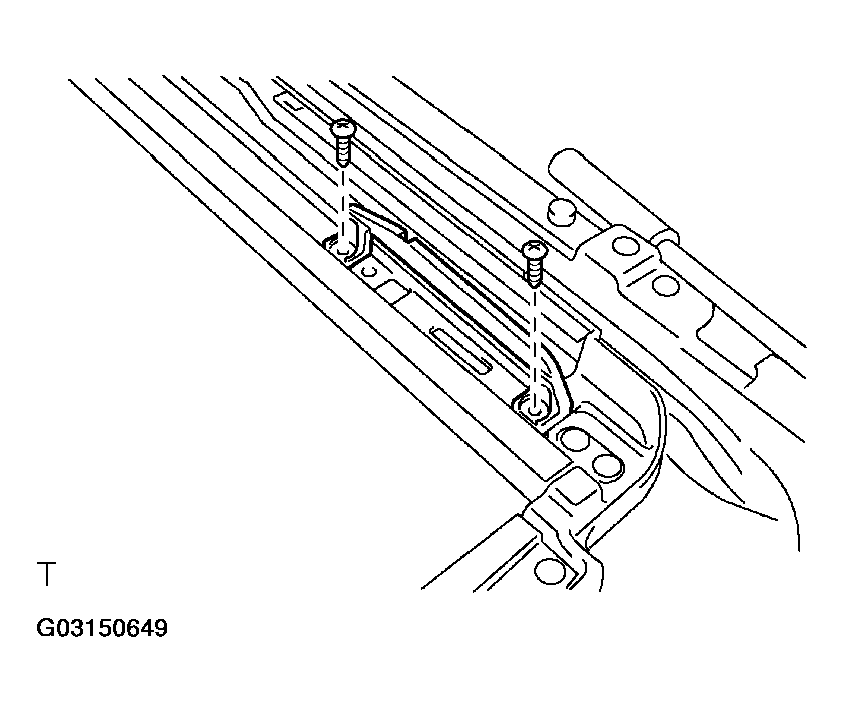

REMOVE 2 BRACKETS
Remove the 4 screws and 2 brackets.

Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)

Fig 7: Removing Brackets
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

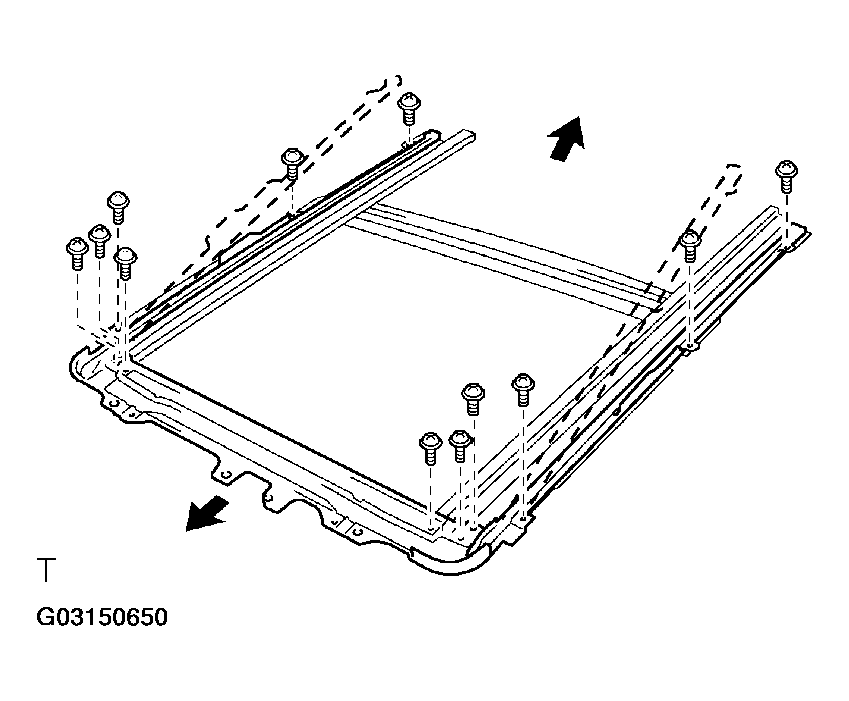

REMOVE SLIDING ROOF HOUSING
Remove the 12 screws and sliding roof housing.

Fig 8: Removing Sliding Roof Housing
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
