Testing Procedure

For wiring diagram see Fig 1. For testing procedure see Fig 2.

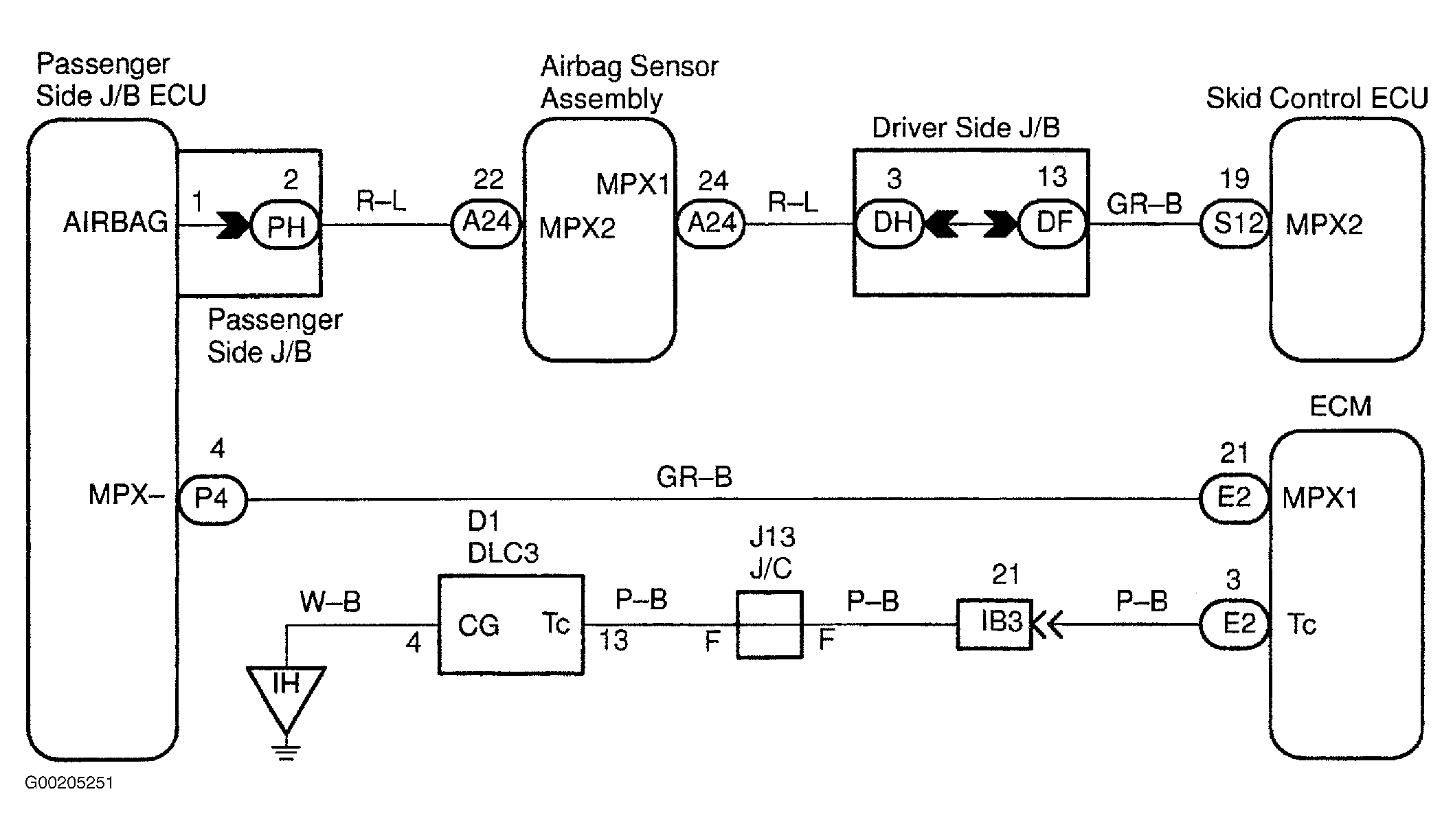

Fig 1: Tc Terminal Circuit Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

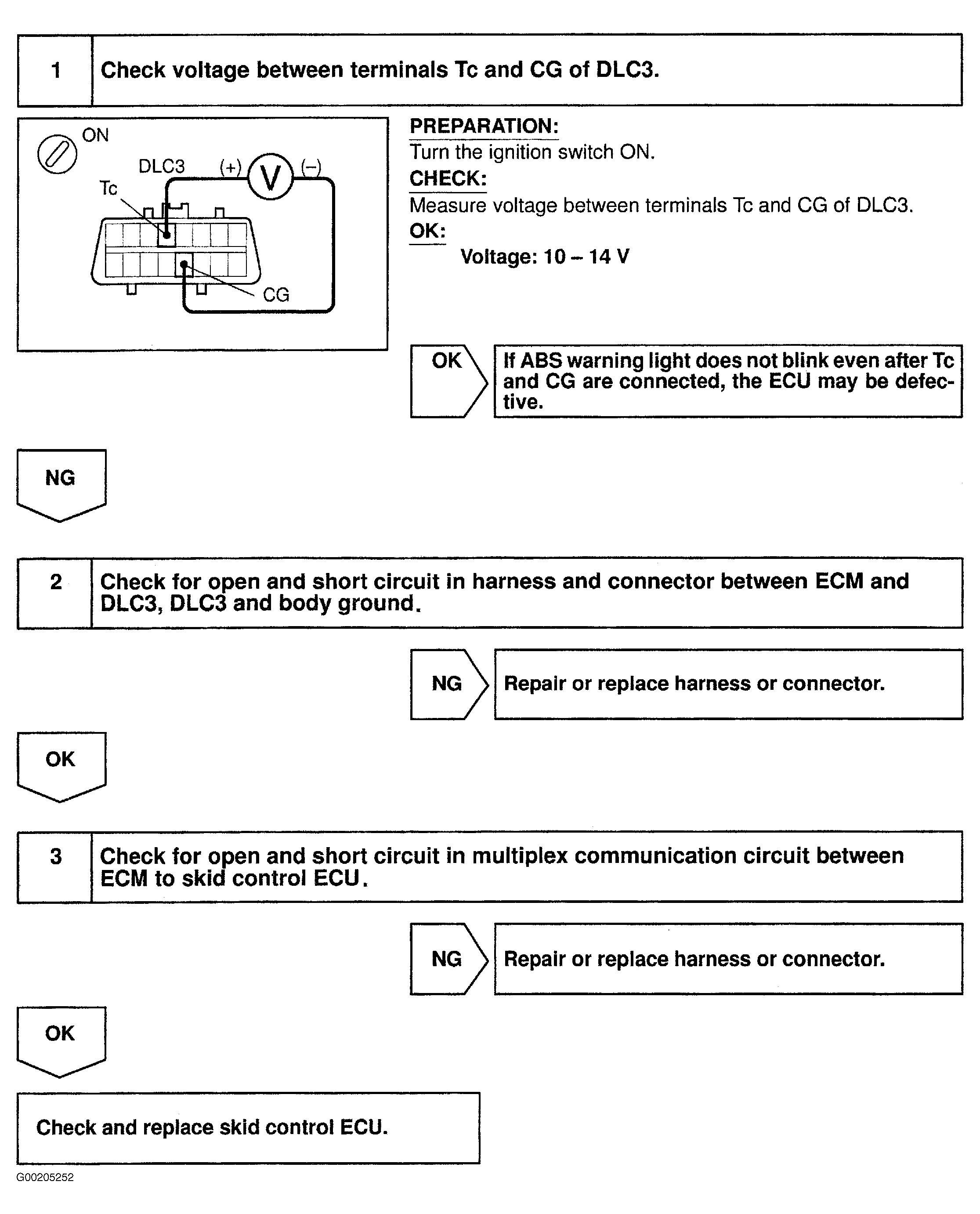

Fig 2: Testing Procedure Tc Terminal Circuit
