How To Proceed With Troubleshooting

NOTE: The ECU of this system is connected to the multiplex communication system. Therefore, before starting troubleshooting, be sure to check that there is no trouble in the multiplex communication system.

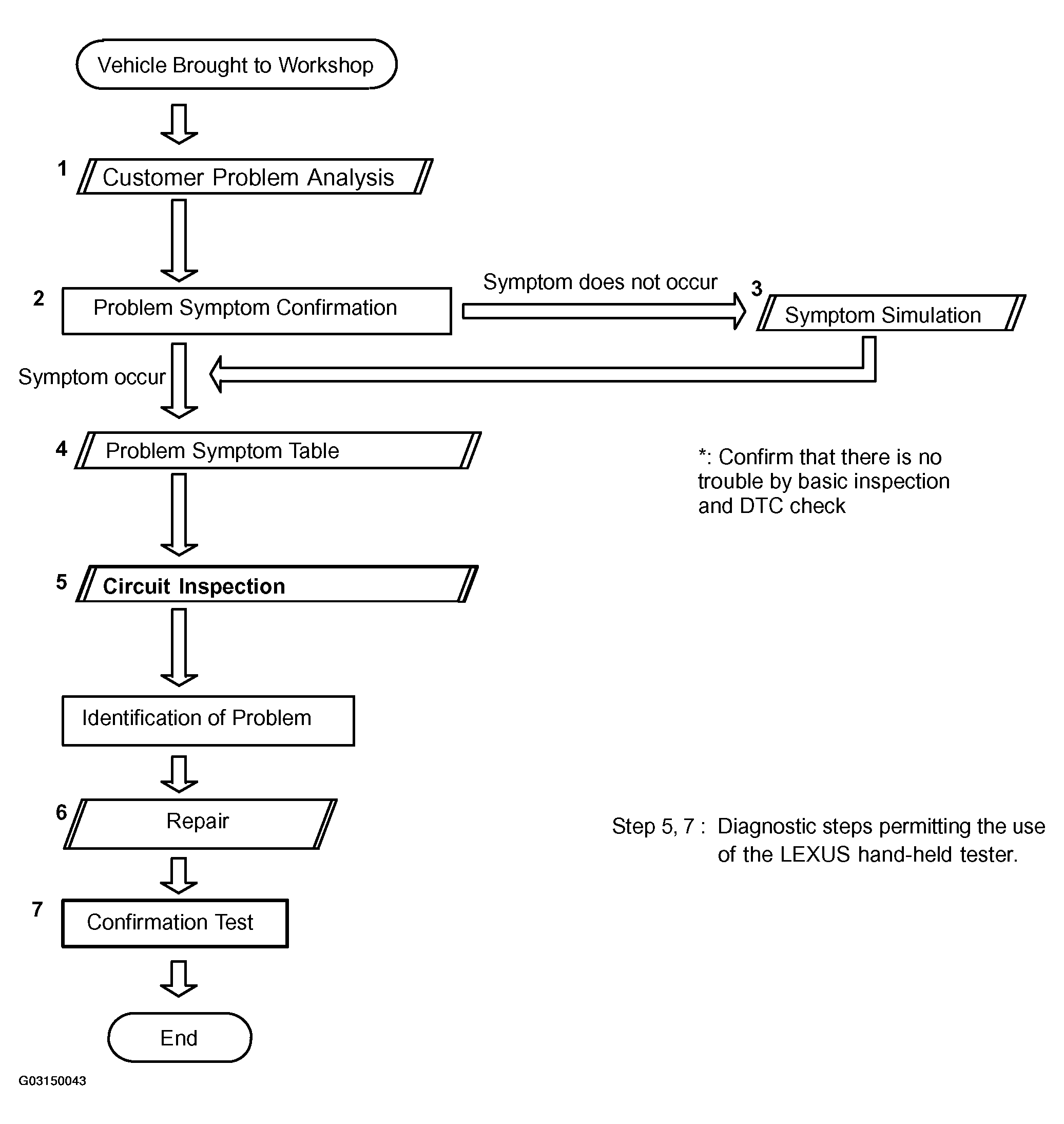

Fig 1: Combination Meter System Troubleshooting Flow Chart
G03150043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
