Oil Pump: Disassembly

  1. Remove relief valve.
    1. Remove the plug, compression spring and relief valve.
      Fig 1: Locating Plug For Removal
      G01148456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Remove drive and driven rotors.
    1. Remove the 10 screws, pump body cover, the drive and driven rotors.

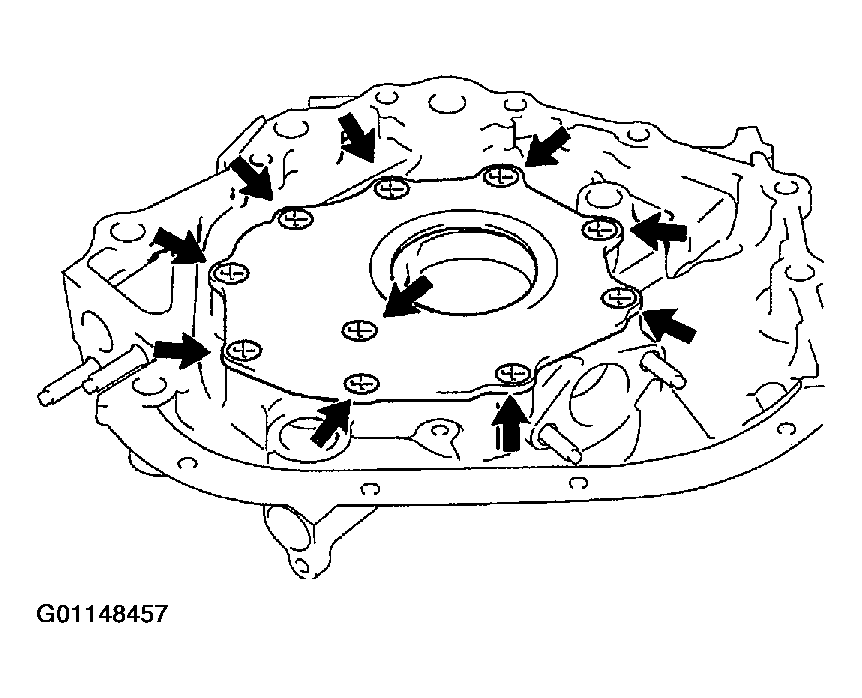

      Fig 2: Locating Screws For Removal
      G01148457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
