Propeller Shaft Assembly: Components

WARNING: This page is about a different car, the 2004 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

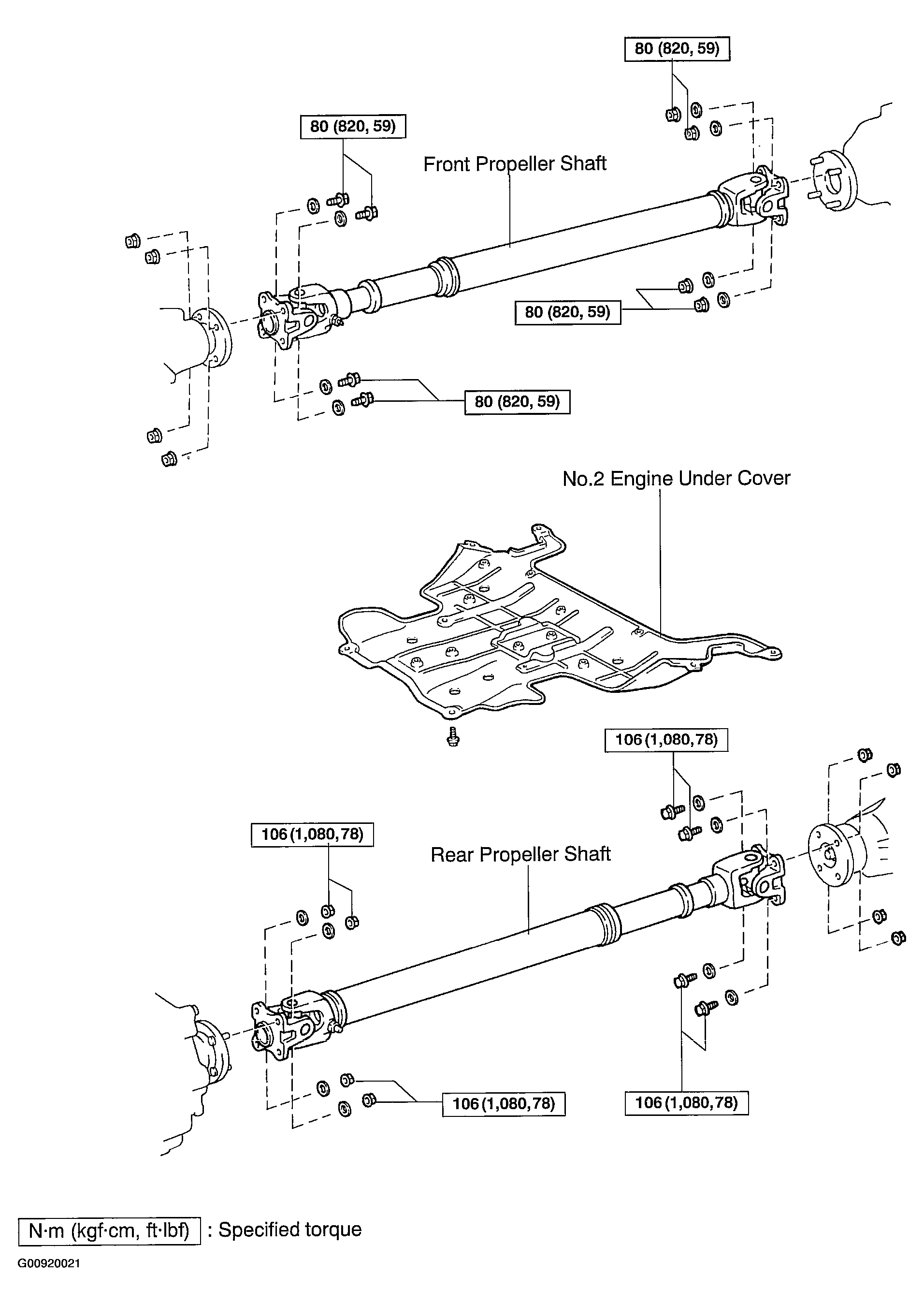

Fig 1: Identifying Components Propeller Shaft Assembly (1 Of 2)
G00920021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

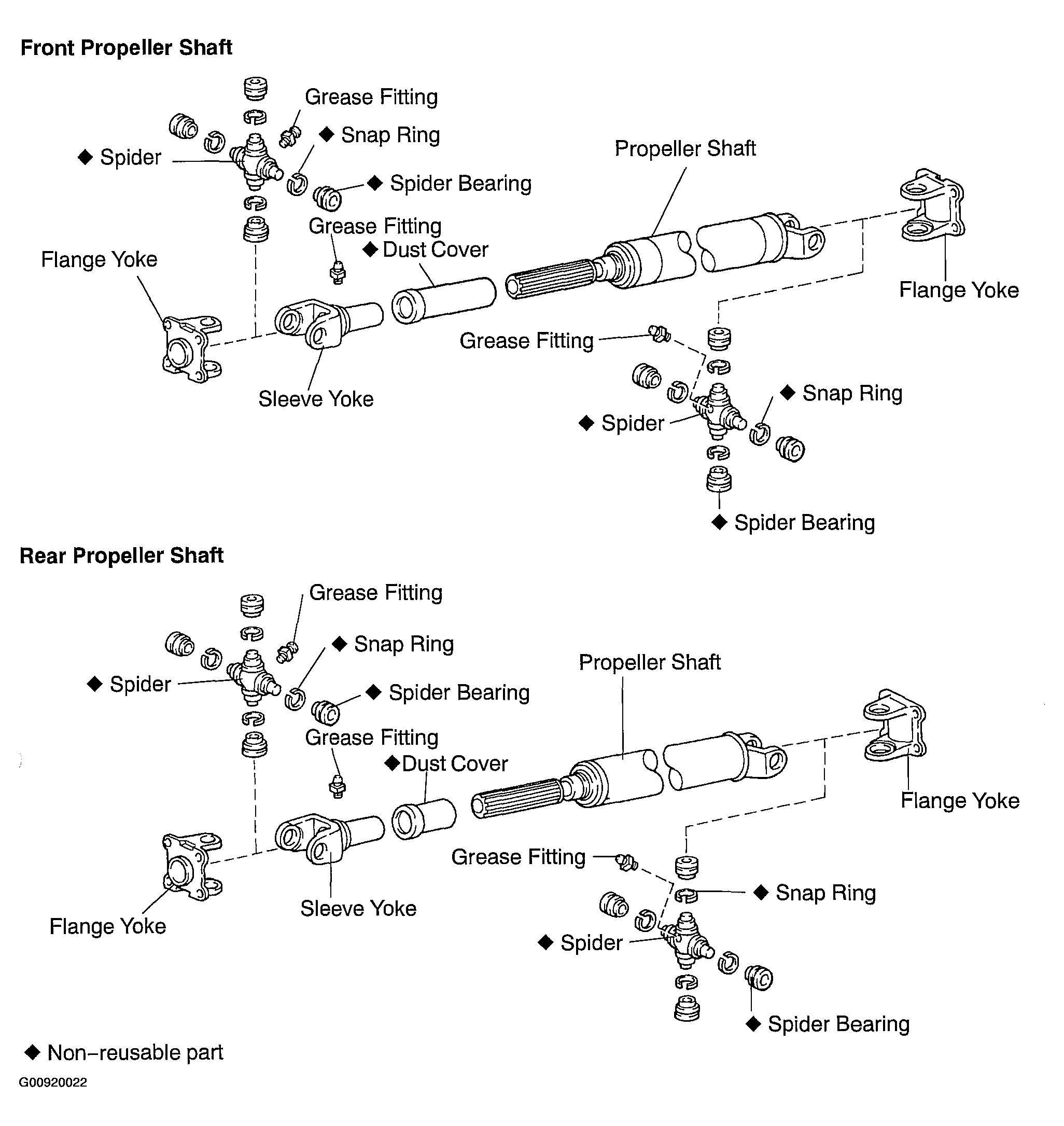

Fig 2: Identifying Components Propeller Shaft Assembly (2 Of 2)
G00920022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
