Blower Unit: Disassembly

  1. Remove air refiner filter.
  2. Remove blower motor.
  3. Remove A/C ECU.
    1. Remove the 3 screws and A/C ECU.

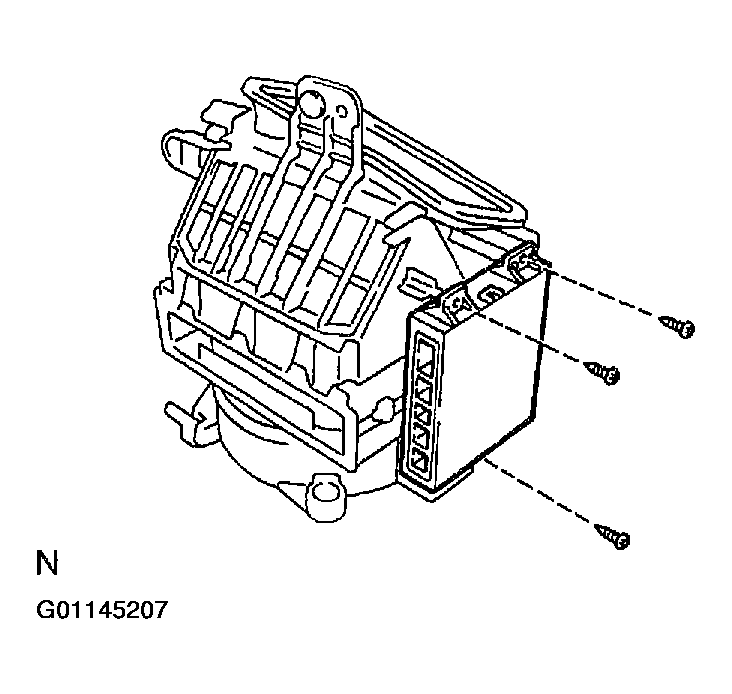

      Fig 1: Locating Screws For A/C ECU Removal
      G01145207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Remove air inlet servomotor.
    1. Remove the 3 screws and the inlet servomotor.

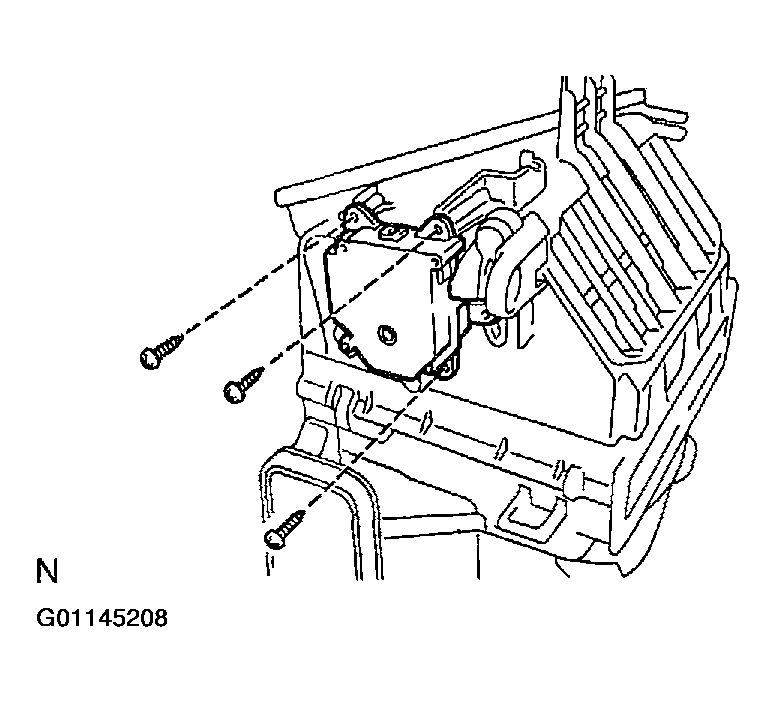

      Fig 2: Locating Screws For Air Inlet Servomotor Removal
      G01145208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
