Rear Cooling Unit: Components

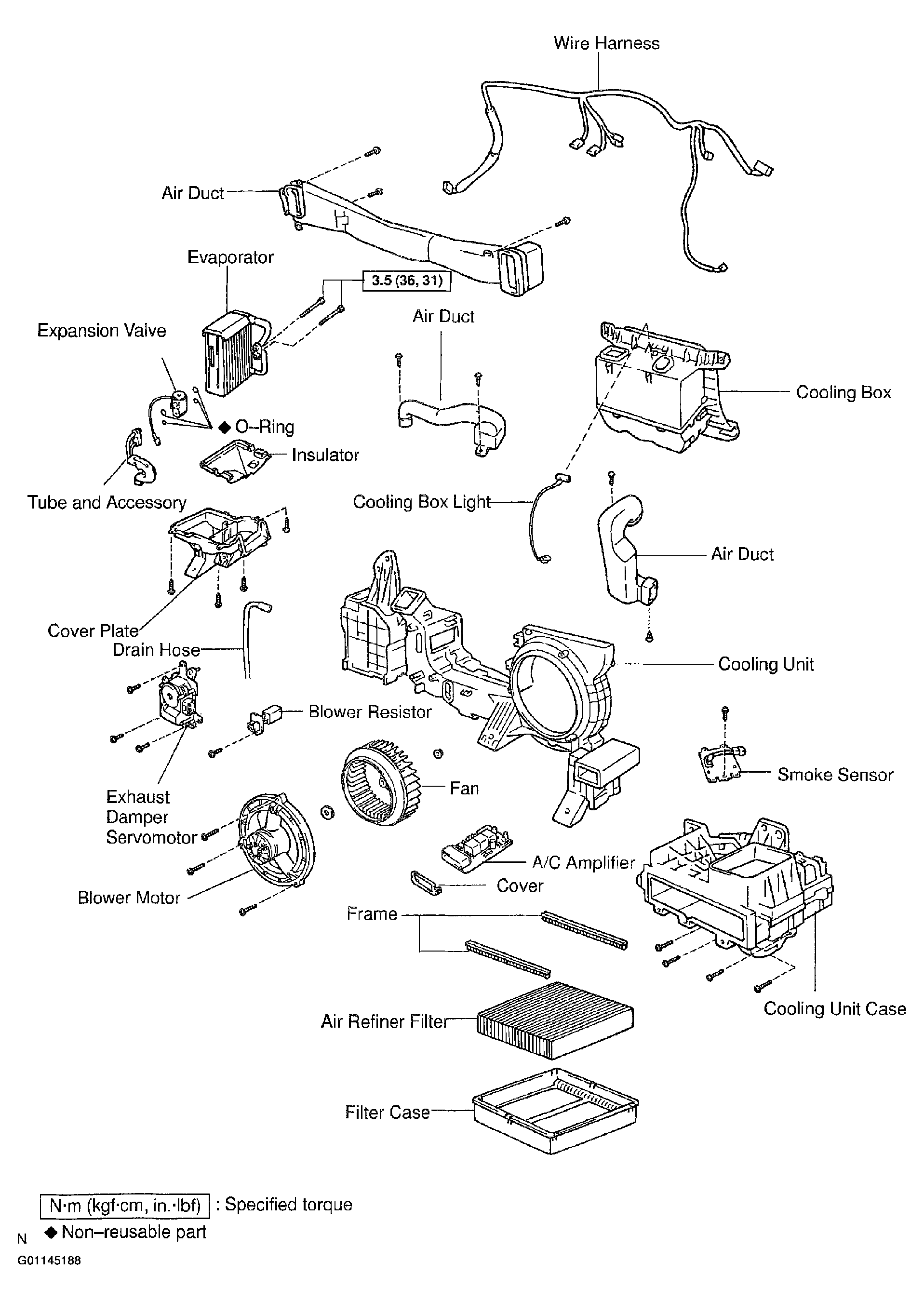

Fig 1: Identifying Rear Cooling Unit Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

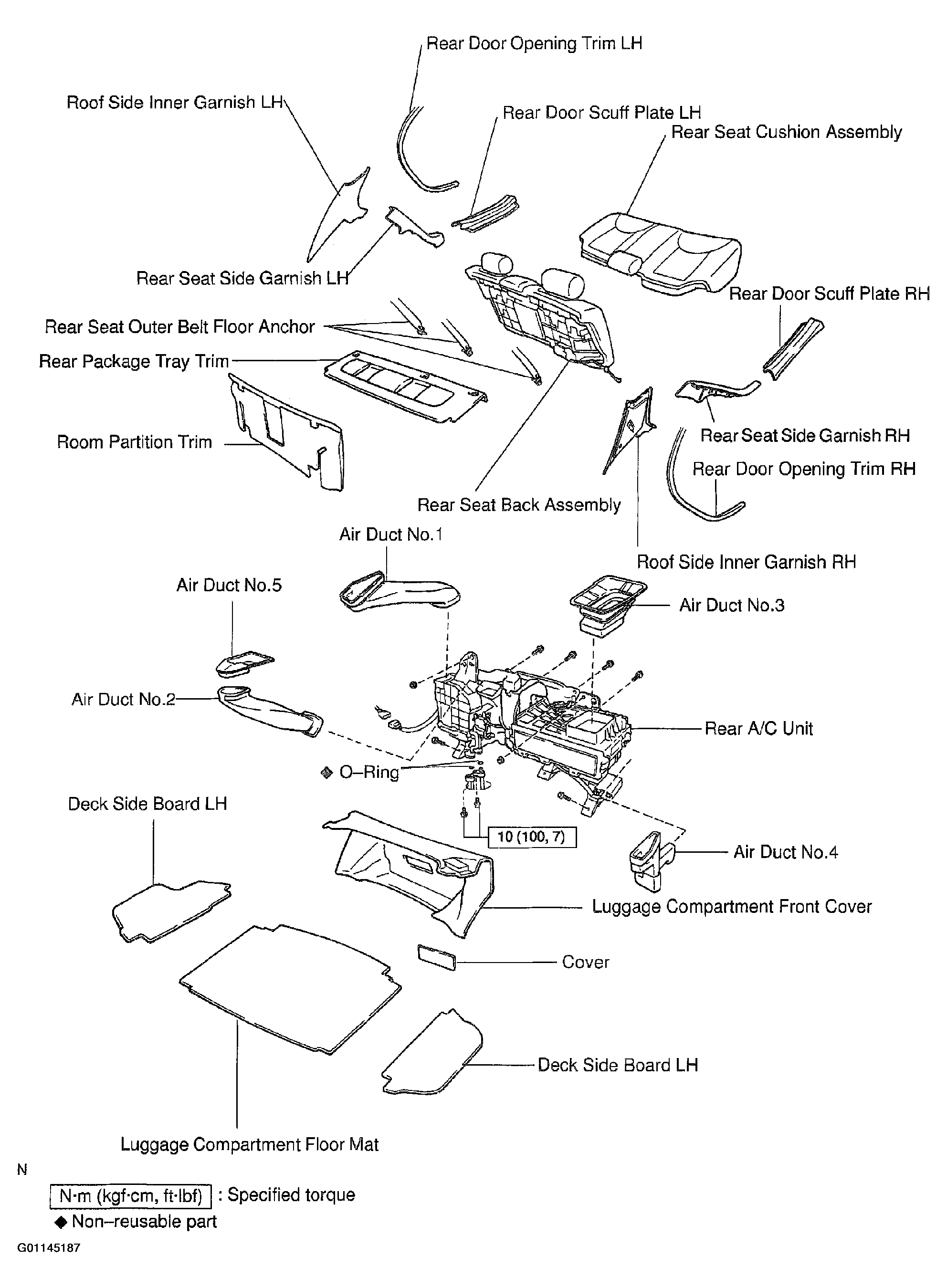

Fig 2: Identifying Rear Cooling Unit Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
