Power Tilt And Power Telescopic Steering Column: Components

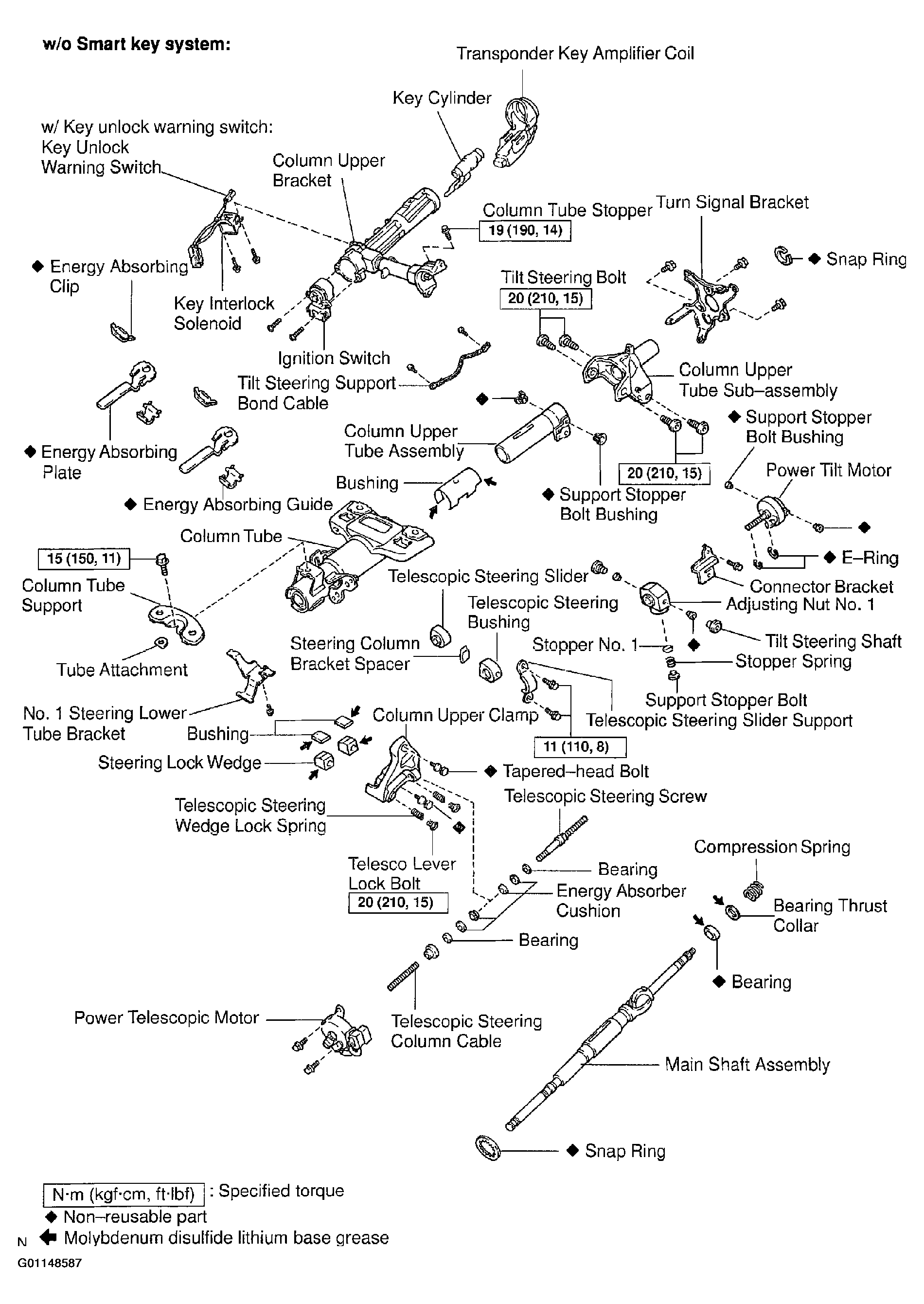

Fig 1: Identifying Power Tilt & Power Telescopic Steering Column Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

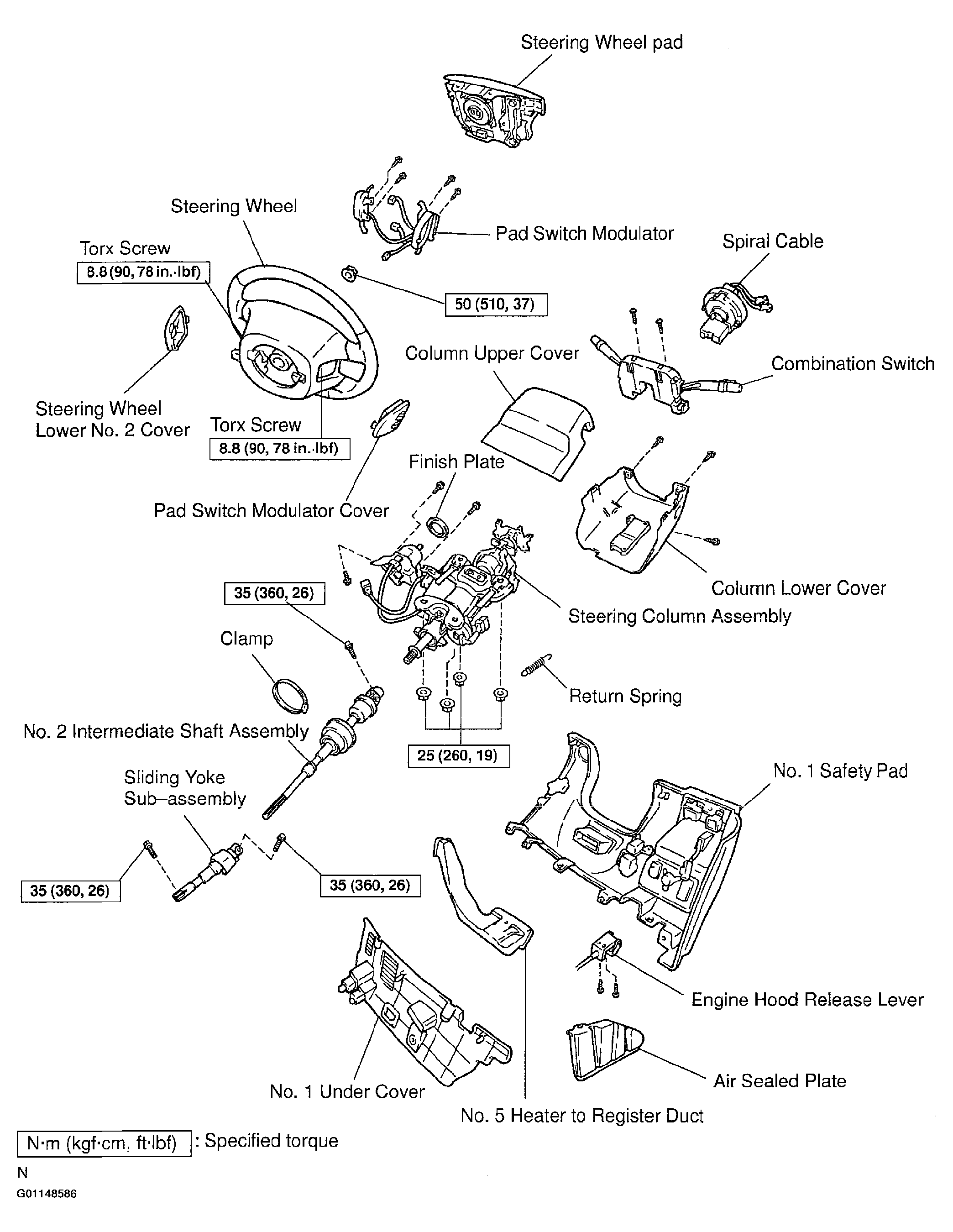

Fig 2: Identifying Power Tilt & Power Telescopic Steering Column Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

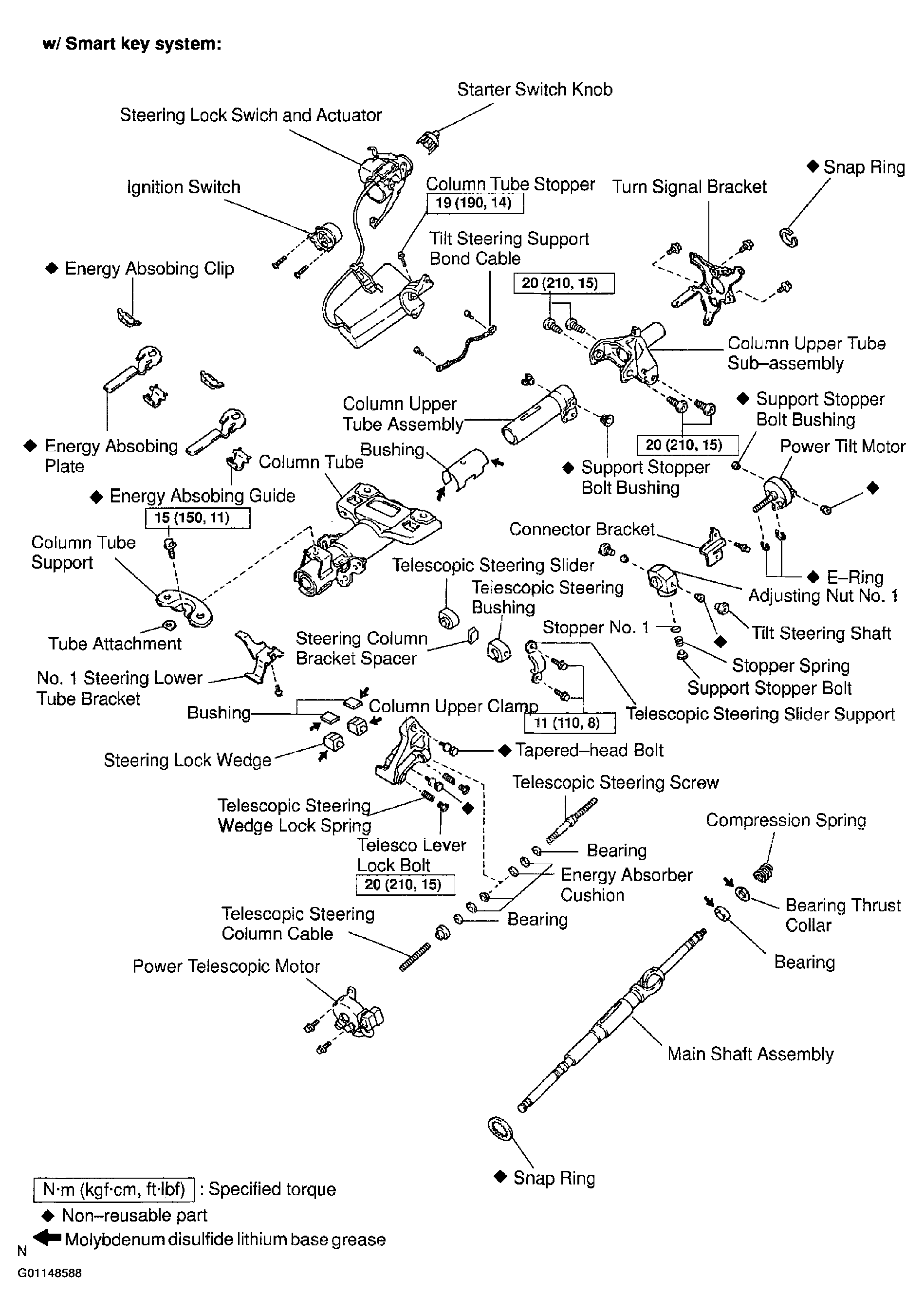

Fig 3: Identifying Power Tilt & Power Telescopic Steering Column Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
