Removal & Installation (Lexus LS430)

Manufacturer does not provide removal and installation procedures for this model. For an exploded view of related components, see Fig 1 and Fig 2 .

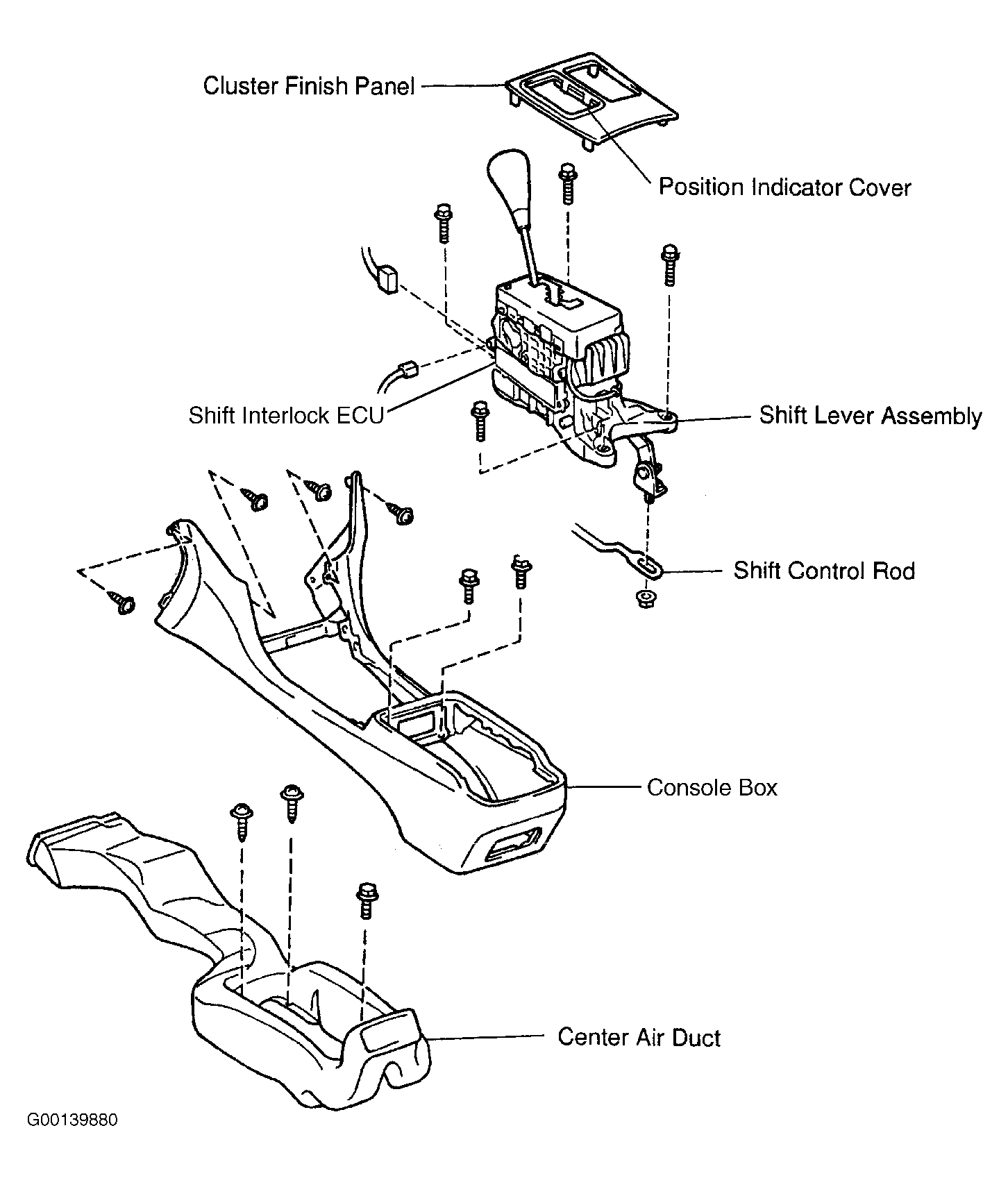

Fig 1: Exploded View Of Floor Console (Lexus LS430)

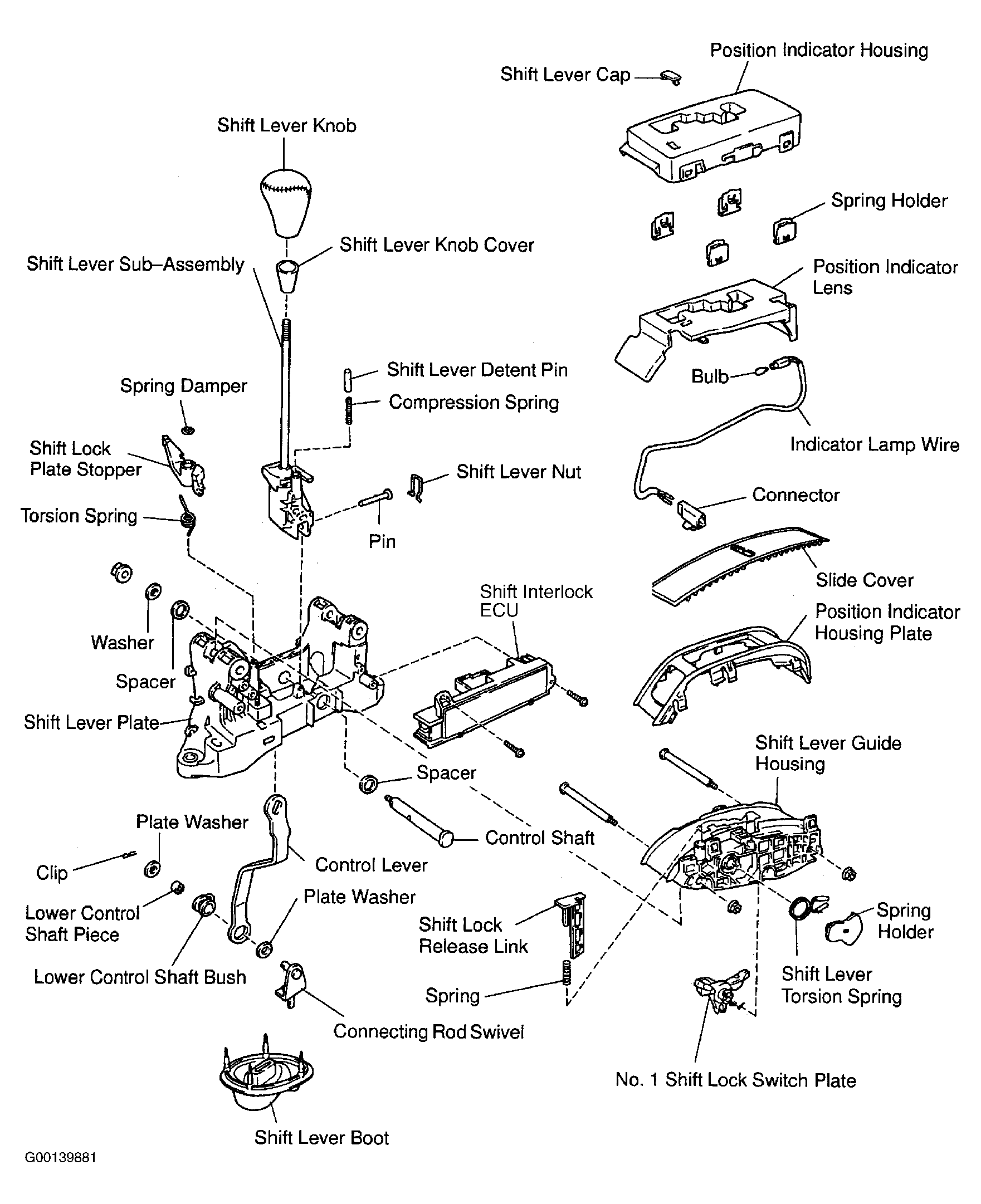

Fig 2: Exploded View Of Floor Shift Control & Shift Interlock Electronic Control Unit (Lexus LS430)
