Circuit Description

The park/neutral position switch detects the shift lever position P and sends signals to the body ECU. See Fig 1.

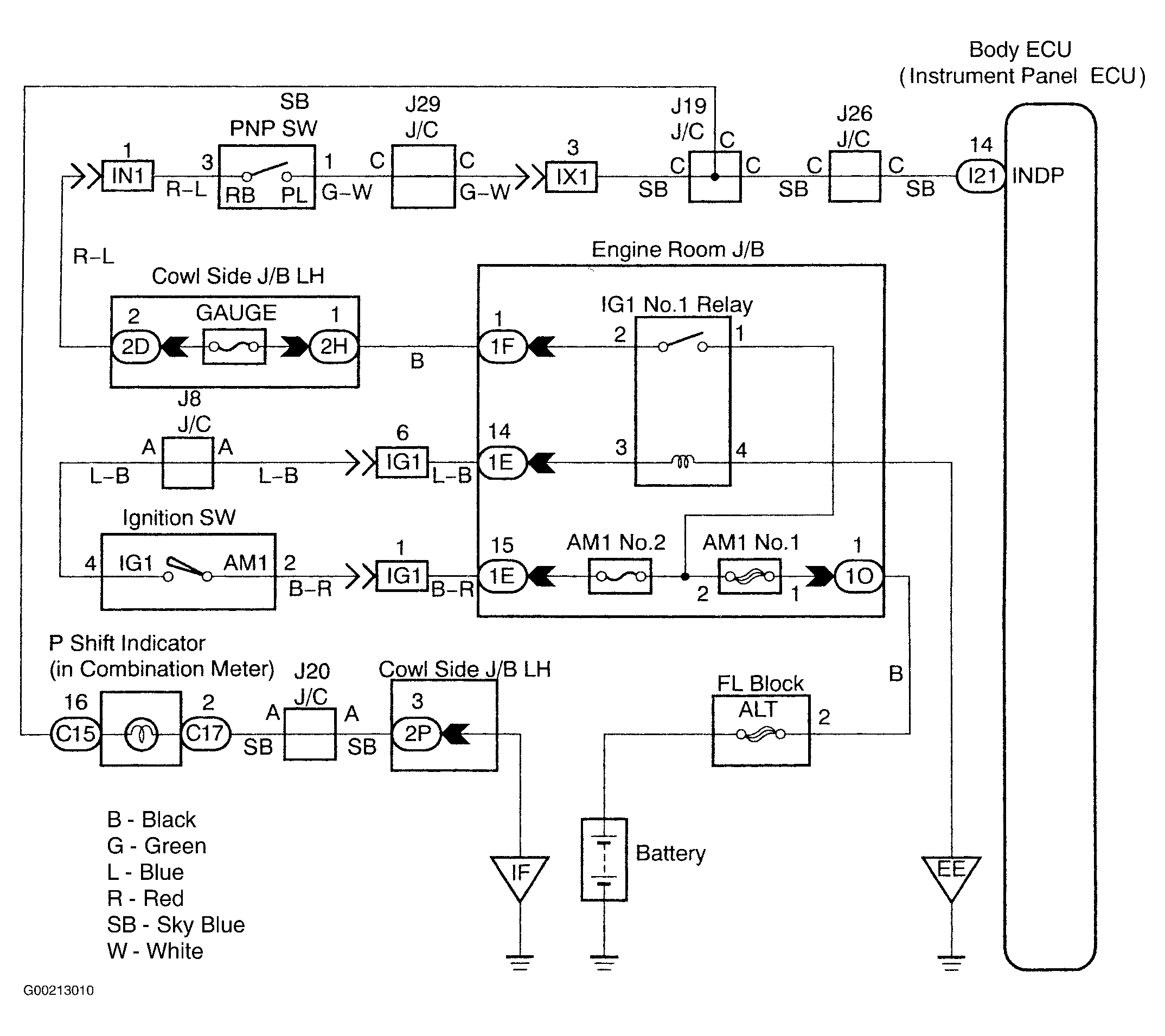

Fig 1: Identifying Park/Neutral Position Switch Circuit
G00213010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
