Circuit Description
Circuit Description

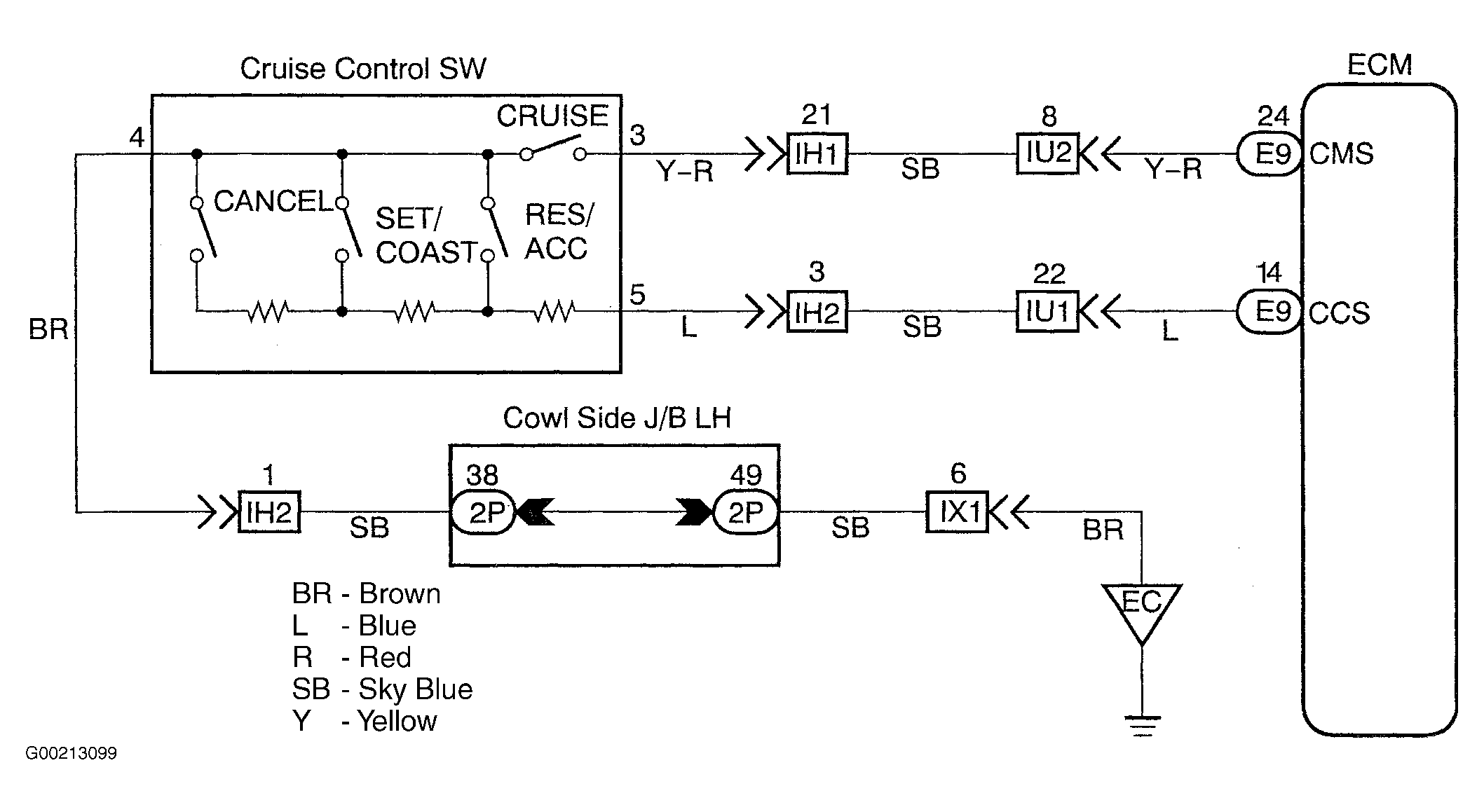

When the cruise control main switch is turned off, the cruise control does not operate. See
Figure
.
