Circuit Description
NOTE:

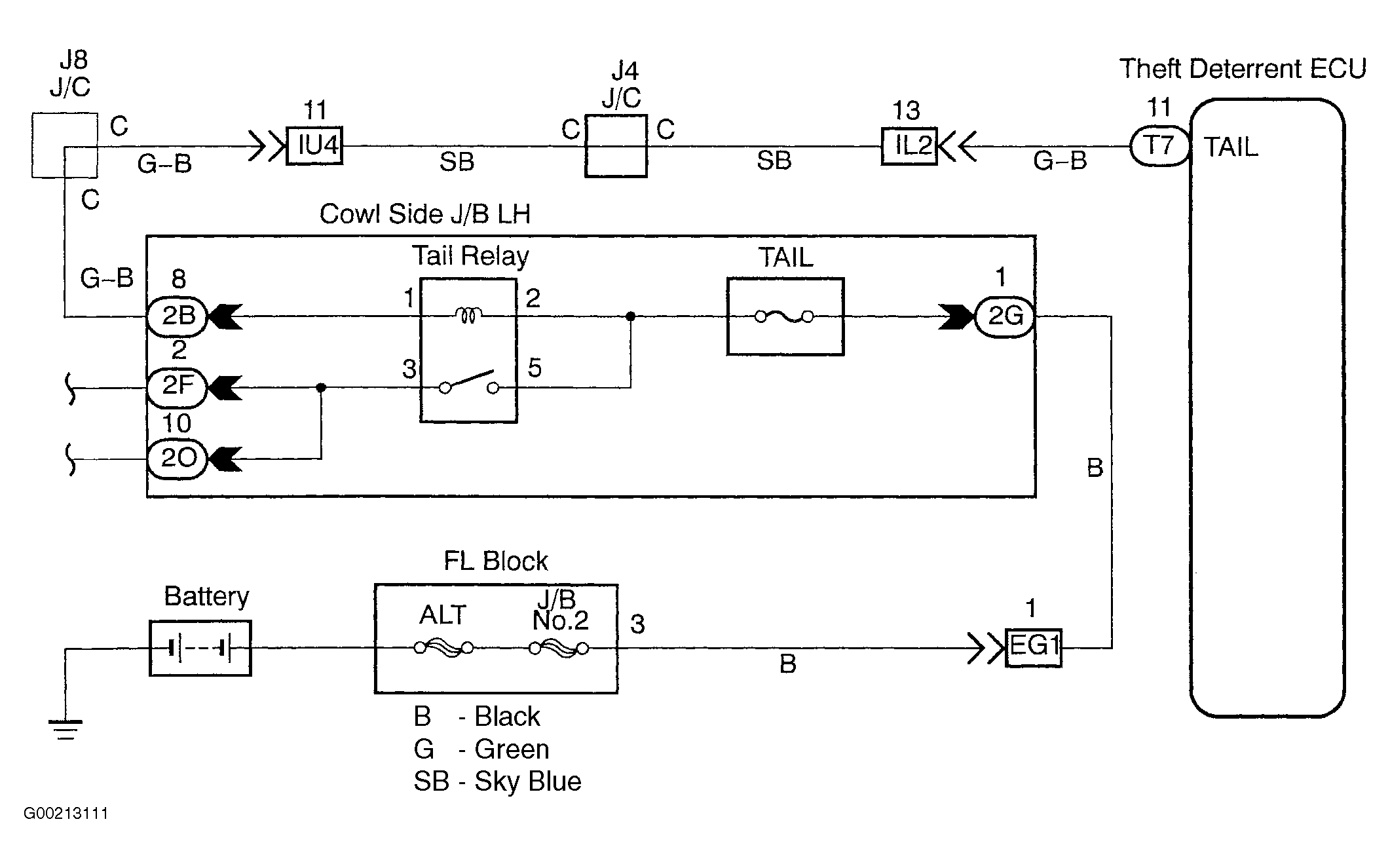

When the anti-theft system is activated, it causes the relay in the ECU to switch ON and OFF at approximately 0.4 second intervals. This switches the taillight control relay ON and OFF, thus flashing the taillights. See Fig 1. In this condition, if any of the following operations is done, the relay in the ECU goes OFF and the taillight control relay switches OFF, thus stopping the taillights flashing.
