Circuit Description

Battery positive voltage is always applied to terminal No. 8 (+B) of the wireless door lock ECU. See Fig 1.

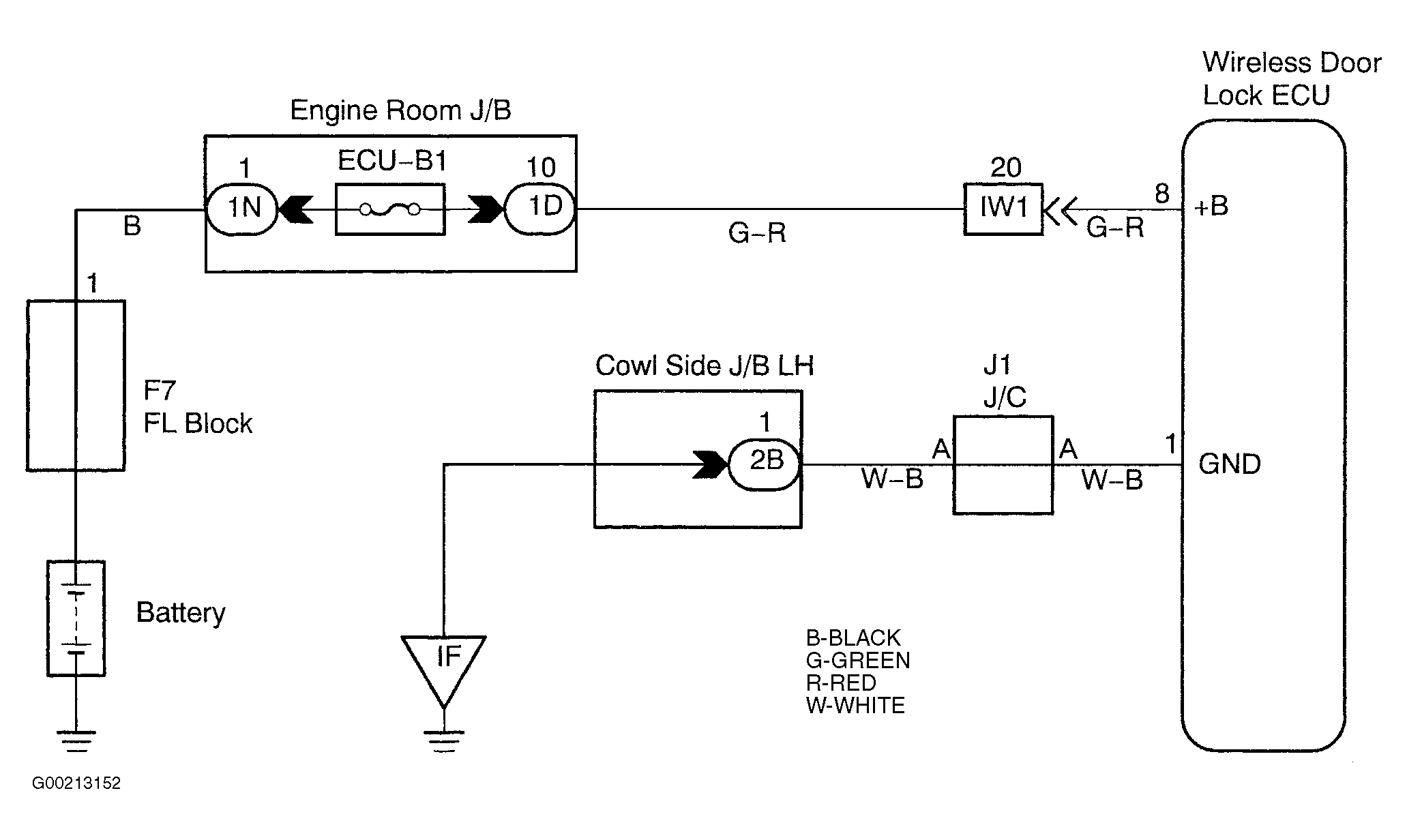

Fig 1: Identifying ECU Power Source Circuit
G00213152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
