Circuit Description

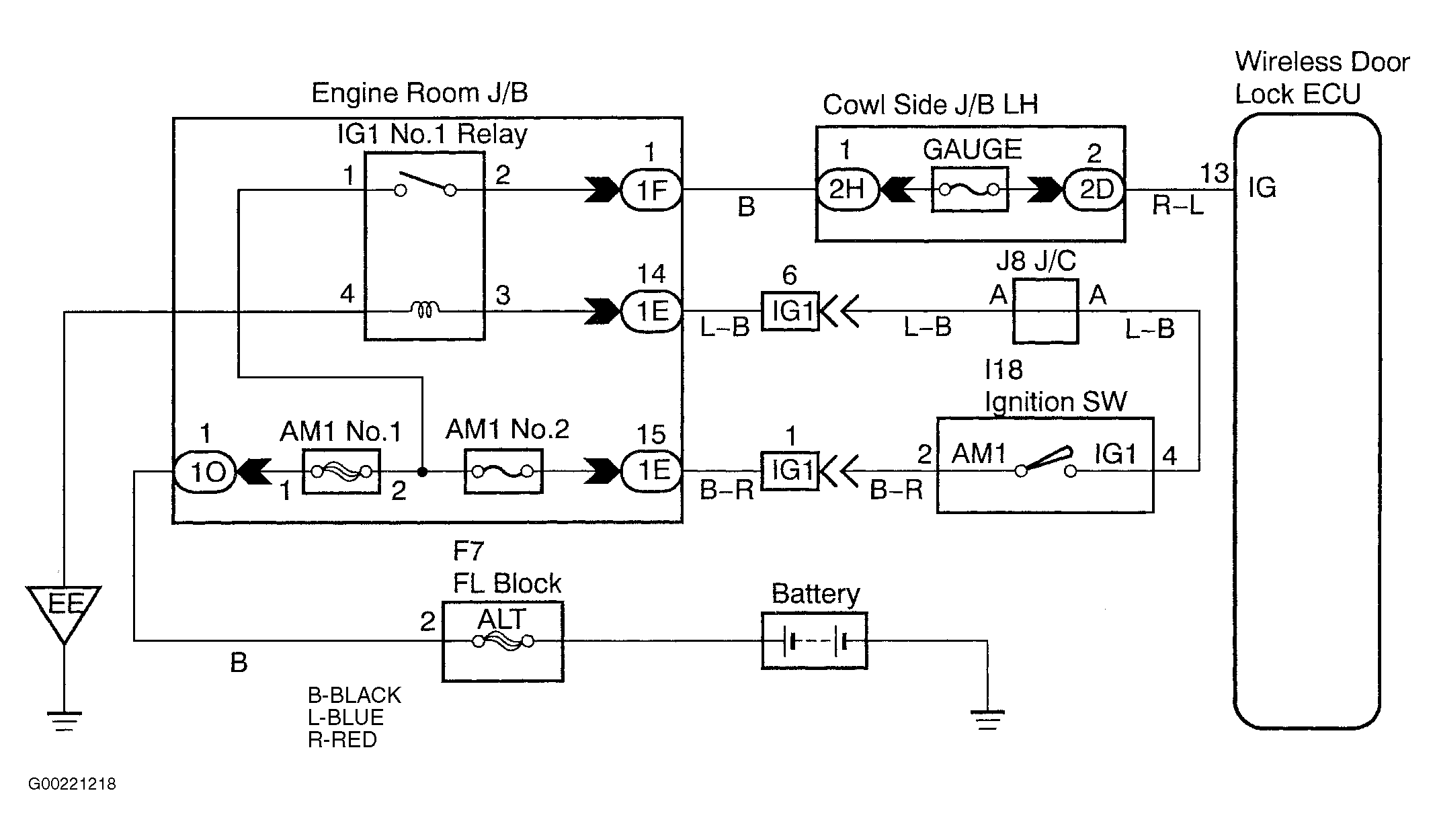

When the ignition switch is turned to the ON position, battery positive voltage is applied to the terminal No. 13 (IG) of the wireless door lock ECU. See Fig 1. Furthermore, power supplied from the terminal No. 13 (IG) of the ECU is used as power for the wireless door lock buzzer.
