Circuit Description

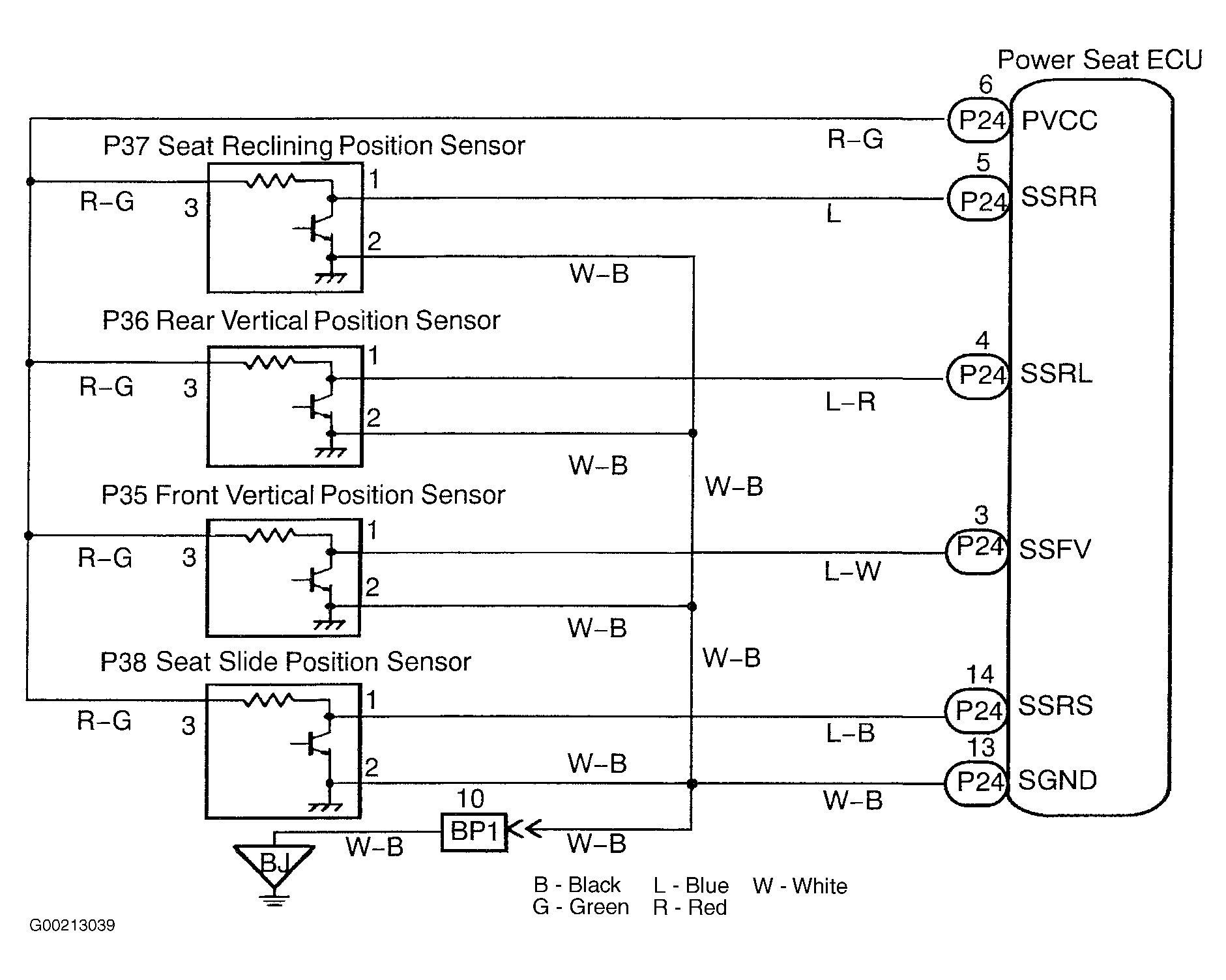

The position sensor senses movement of the seat and send pulse signals to the ECU. The position sensor sends pulse to the ECU in proportion to the amount of seat movement, as shown. See Fig 1. The ECU uses the number of pulses to constantly calculate the position relative to the memory position and returns the seat to the memorized position. If a malfunction occurs in a position sensor and a sensor signal is not input to the ECU even when the motor operates, the ECU prohibits return operation. See Figure.
