Home › Lexus › 2002 › LX 470 › Repair and Diagnosis › Engine Mechanical › Cooling System (Mechanical) › Radiator › Components

Cooling System (Mechanical): Radiator: Components

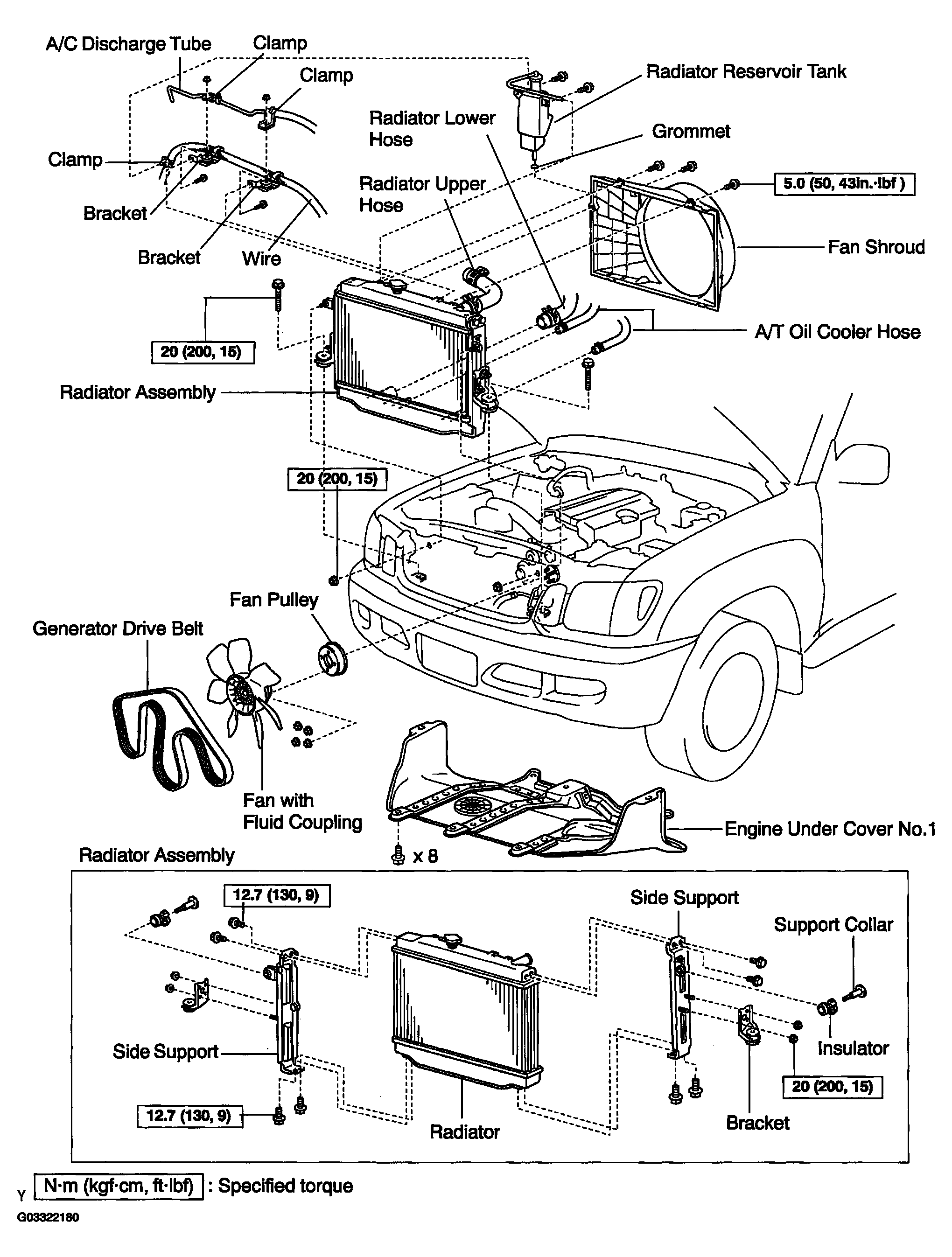

Fig 1: Exploded View Of Radiator Components

G03322180

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
