Section 126 (Water Pump): Components

WARNING: This page is about a different car, the 2001 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

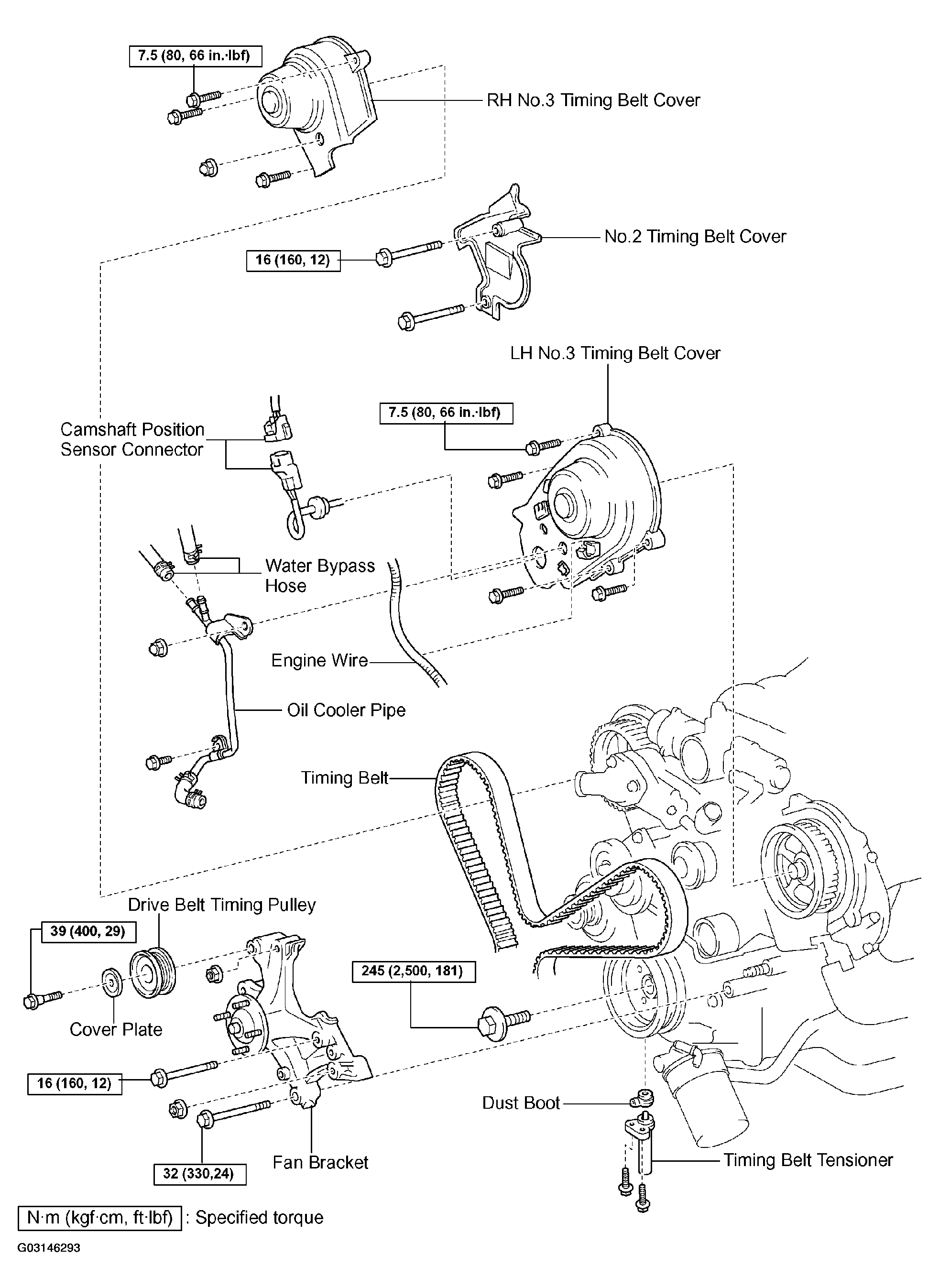

Fig 1: Identifying Components For Water Pump Removal (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

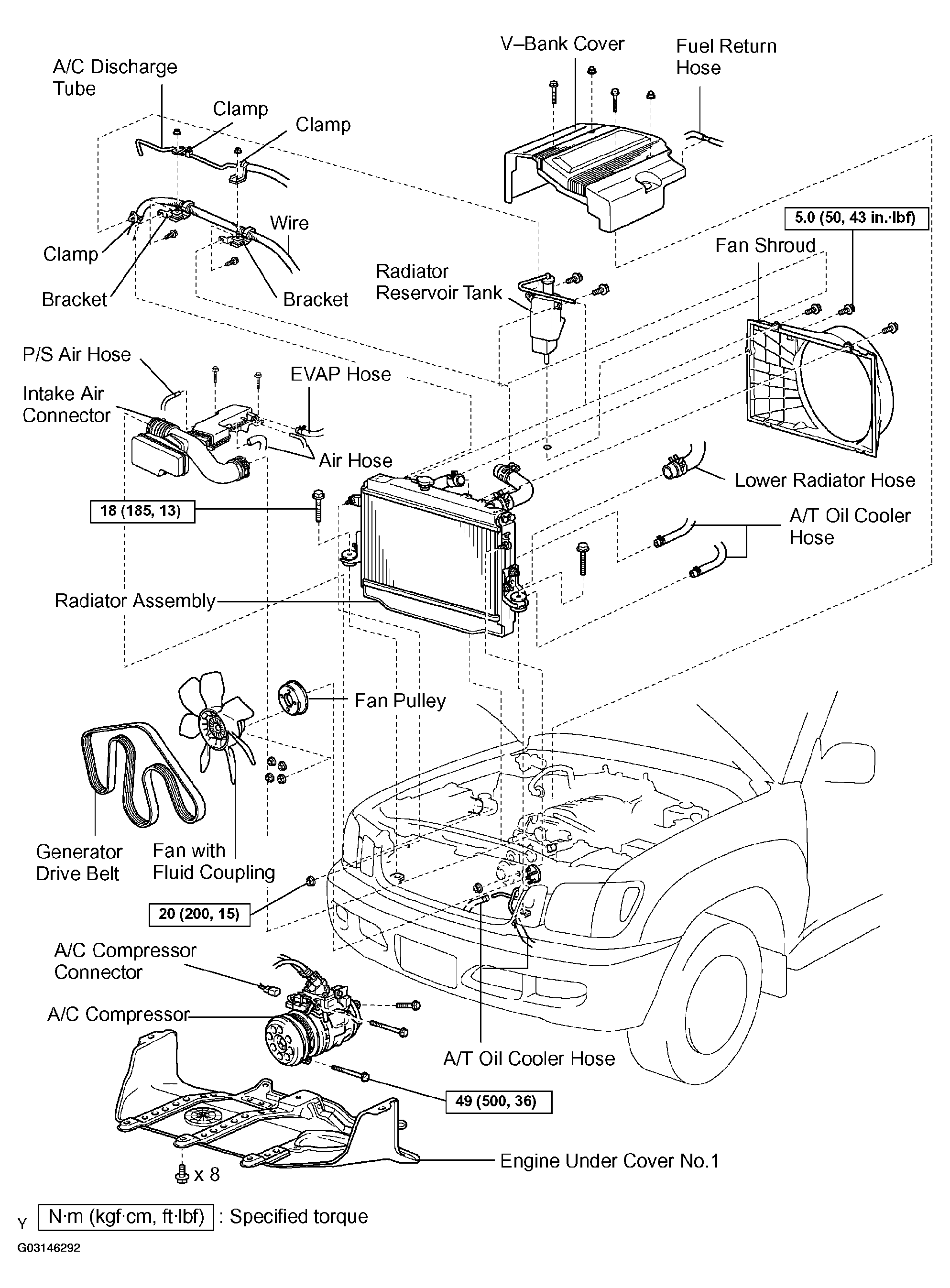

Fig 2: Identifying Water Pump Components (2 Of 2)

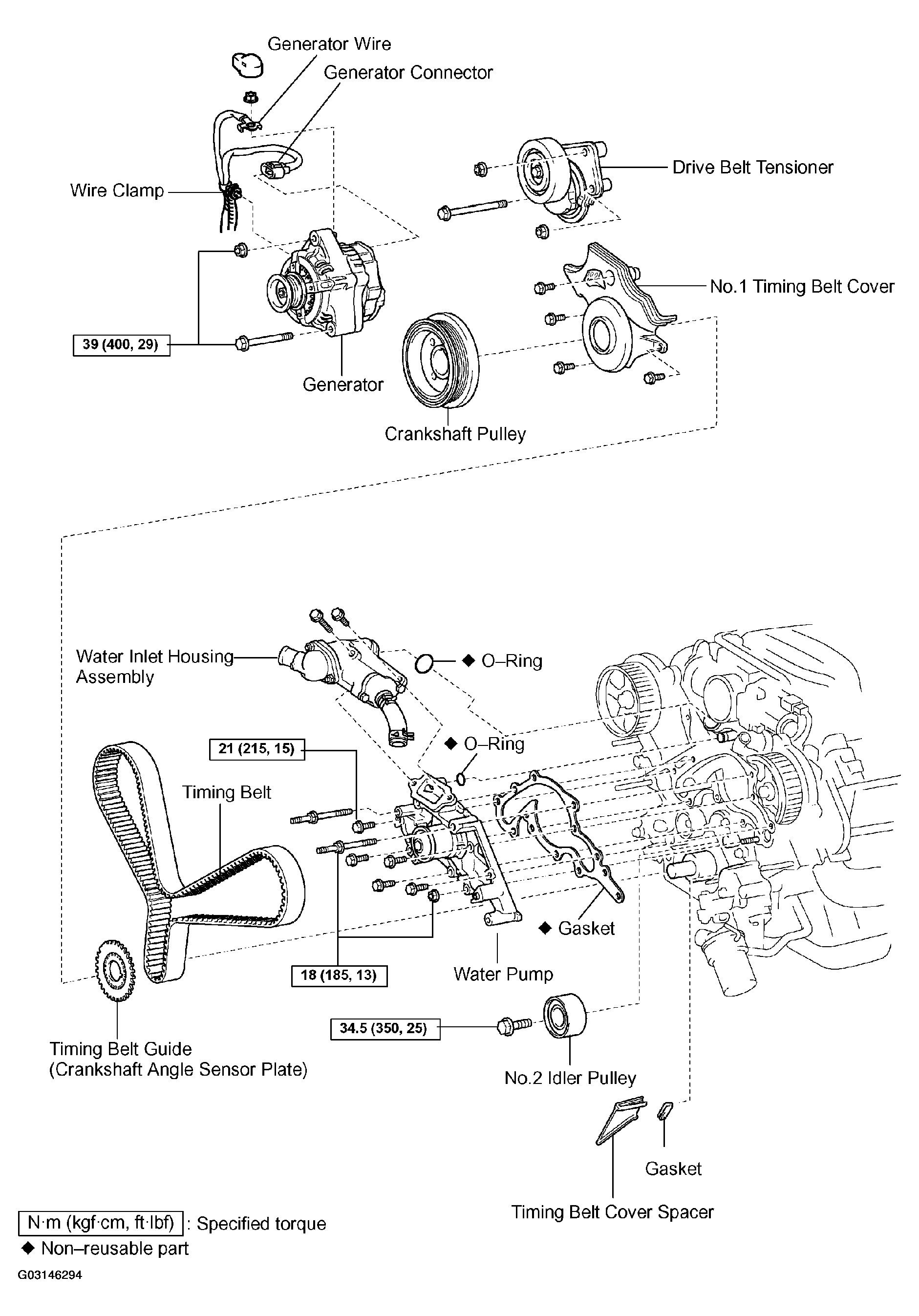

Fig 3: Removing Water Pump
