Power Steering Vane Pump: Reassembly

Using a plastic hammer, tap in 2 new pins to the front housing.

Install the ring with the inscribed mark facing outward.

Fig 1: Installing Cam Ring

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the rotor with the inscribed mark facing outward.
2. Install a new snap ring to the vane pump shaft.

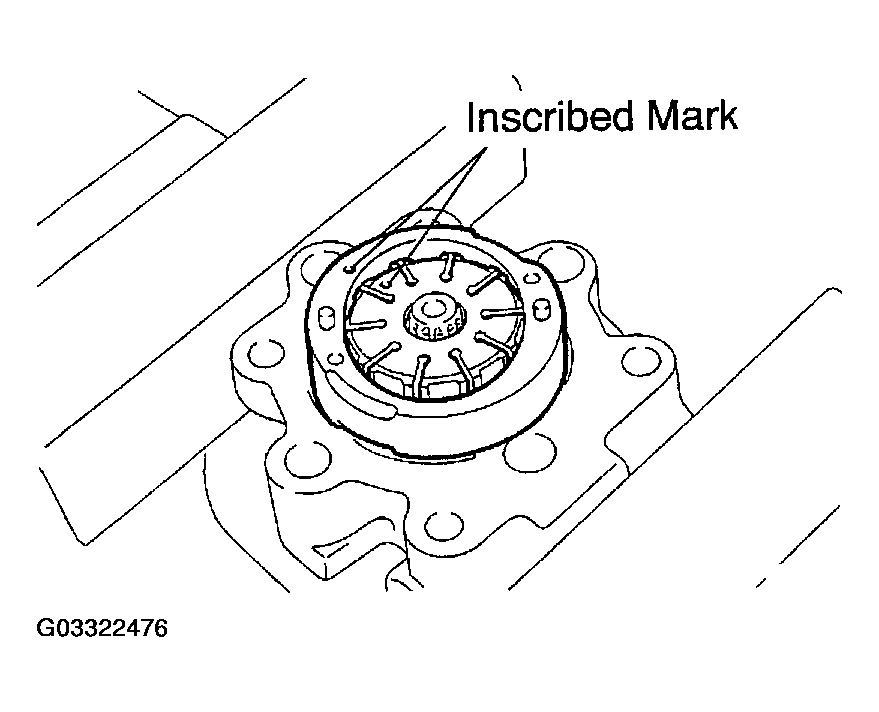

1. Install the 10 plates with the round end facing outward.
   Fig 2: Installing Vane Plates

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install a new gasket on the front housing.
   CAUTION: Be careful the direction of the gasket.

Align the holes of the plate and 2 straight pins.

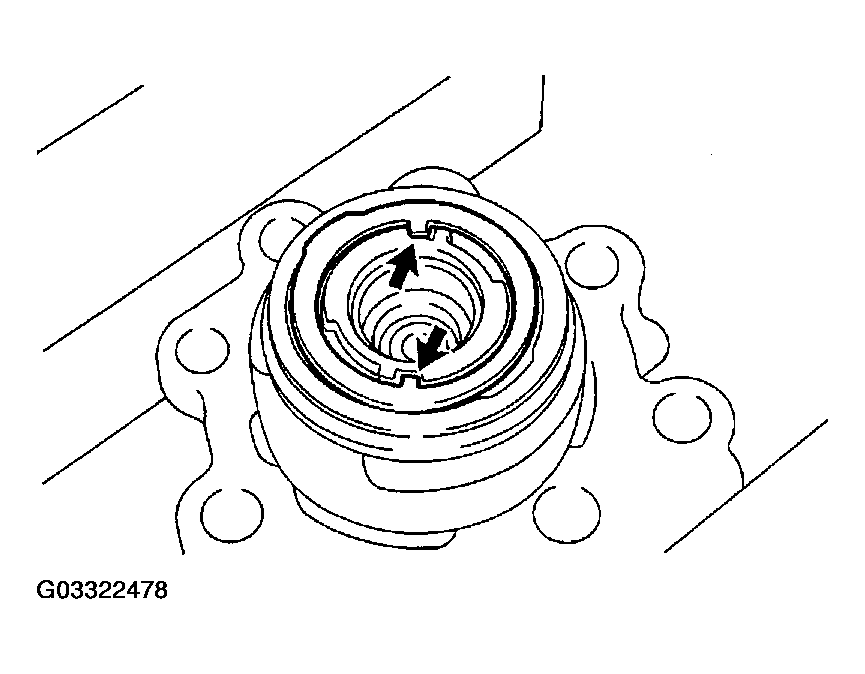

Install the washer so that its protrusions fit into the slots in the side plate.

Fig 3: Installing Rear Housing

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Coat 2 new O-rings with power steering fluid and install them to the housing.
2. Torque the 4 bolts.

   Torque: 24 N.m (240 kgf.cm, 17 ft.lbf)

1. Install the valve facing the correct direction (See COMPONENTS ).
2. Coat a new O-ring with power steering fluid and install it to the union.
3. Torque the union.

   Torque: 83 N.m (850 kgf.cm, 61 ft.lbf)

1. Coat a new O-ring with power steering fluid and install it to the union.
2. Torque the bolt.

   Torque: 13 N.m (130 kgf.cm, 9 ft.lbf)

Using SST to stop the pulley rotating, torque the nut.

Fig 4: Installing Vane Pump Pulley

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST 09960-10010 (09962-01000, 09963-01000)

Torque: 43 N.m (440 kgf.cm, 32 ft.lbf)
