Home › Lexus › 2002 › LX 470 › Repair and Diagnosis › Transmission › Transfer Case › Transfer Case System › Input Shaft › Components

Input Shaft: Components

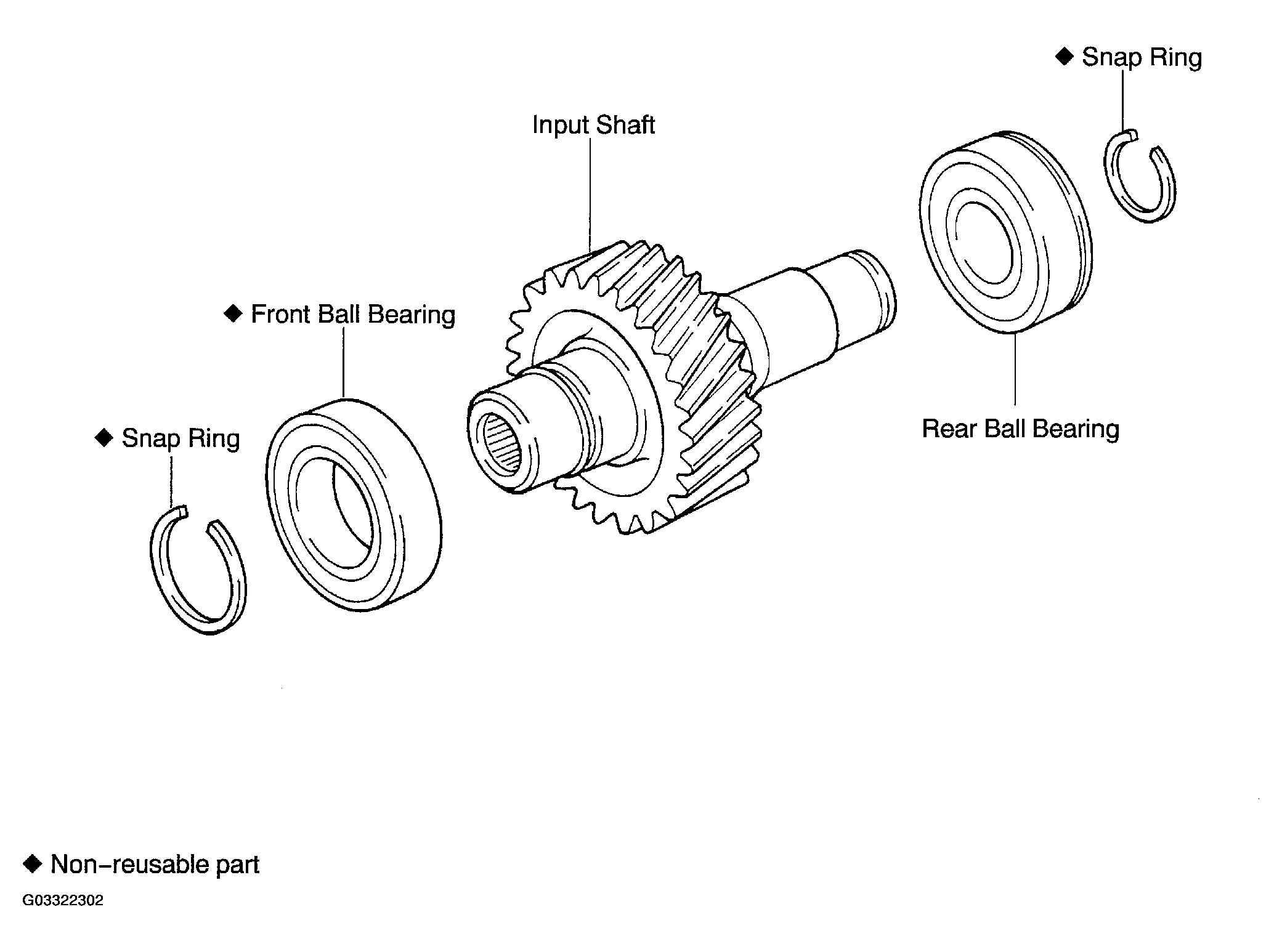

Fig 1: Identifying Input Shaft Components

G03322302

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
