Motor Shift Control System: Location

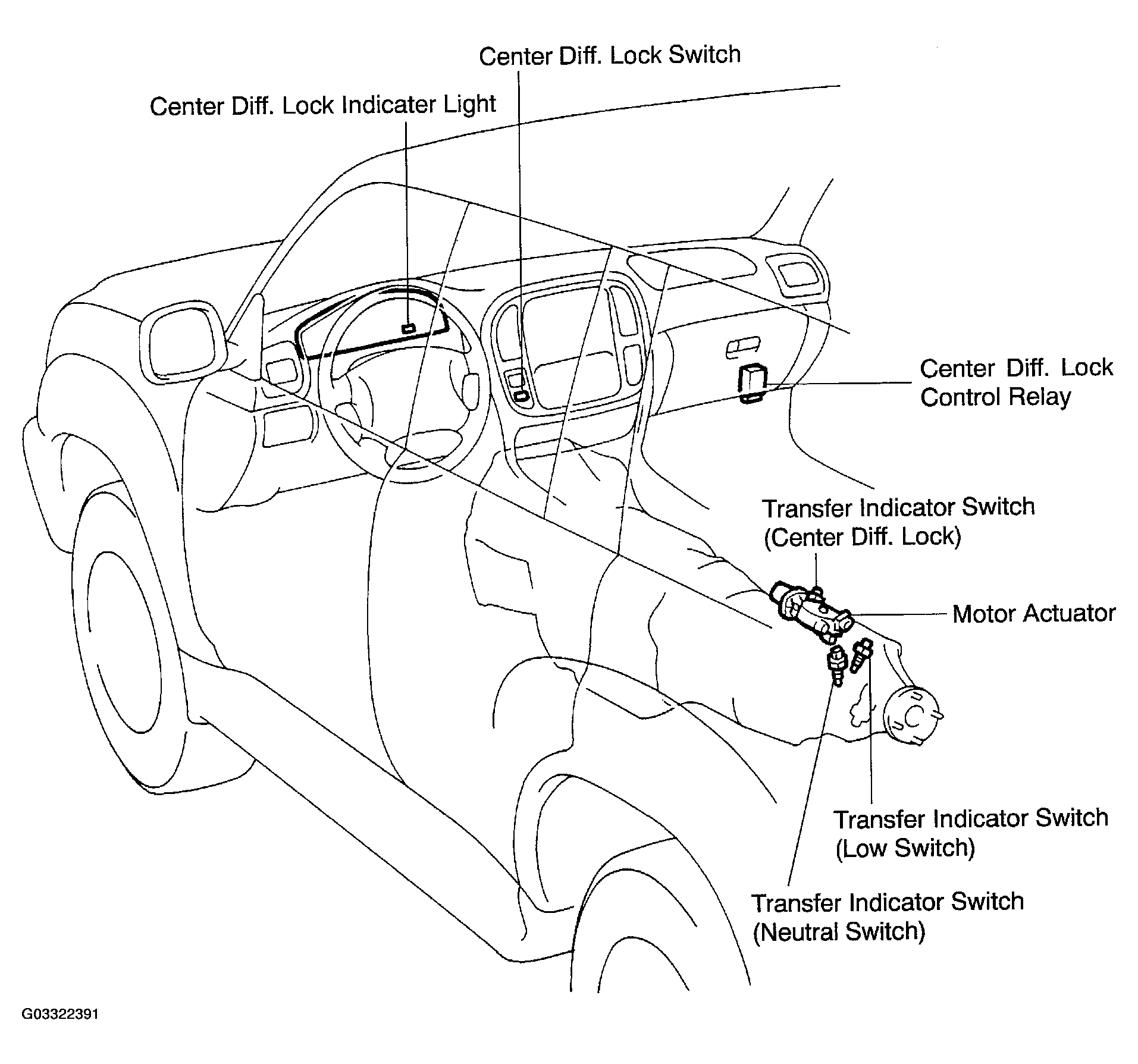

Fig 1: Locating Motor Shift Control System Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
