Rear Extension Housing: Components

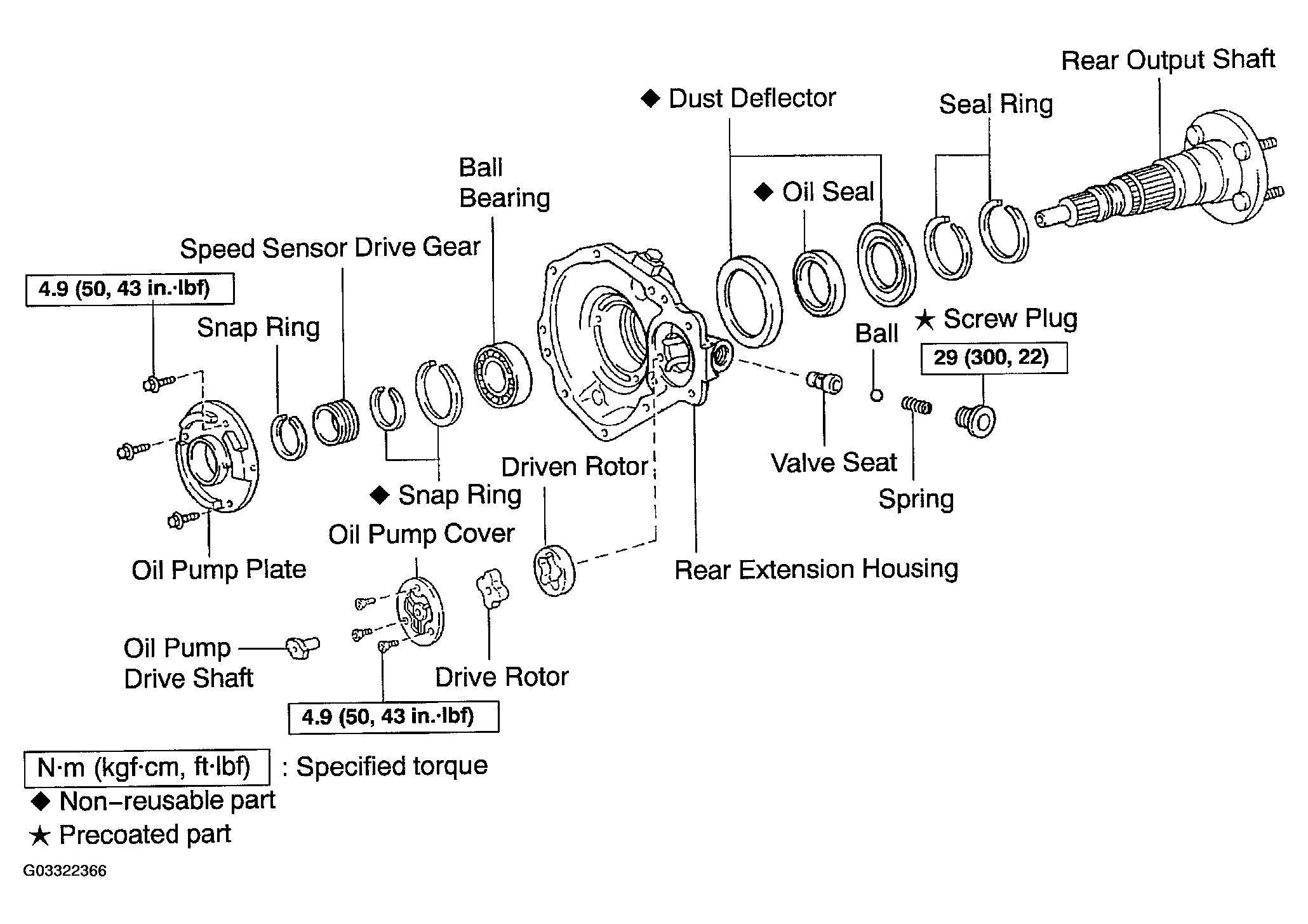

Fig 1: Identifying Rear Extension Housing Components

G03322366

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
