Home › Lexus › 2002 › LX 470 › Repair and Diagnosis › Transmission › Transfer Case › Transfer Case System › Transfer Shift Lever Assembly › Components

Transfer Shift Lever Assembly: Components

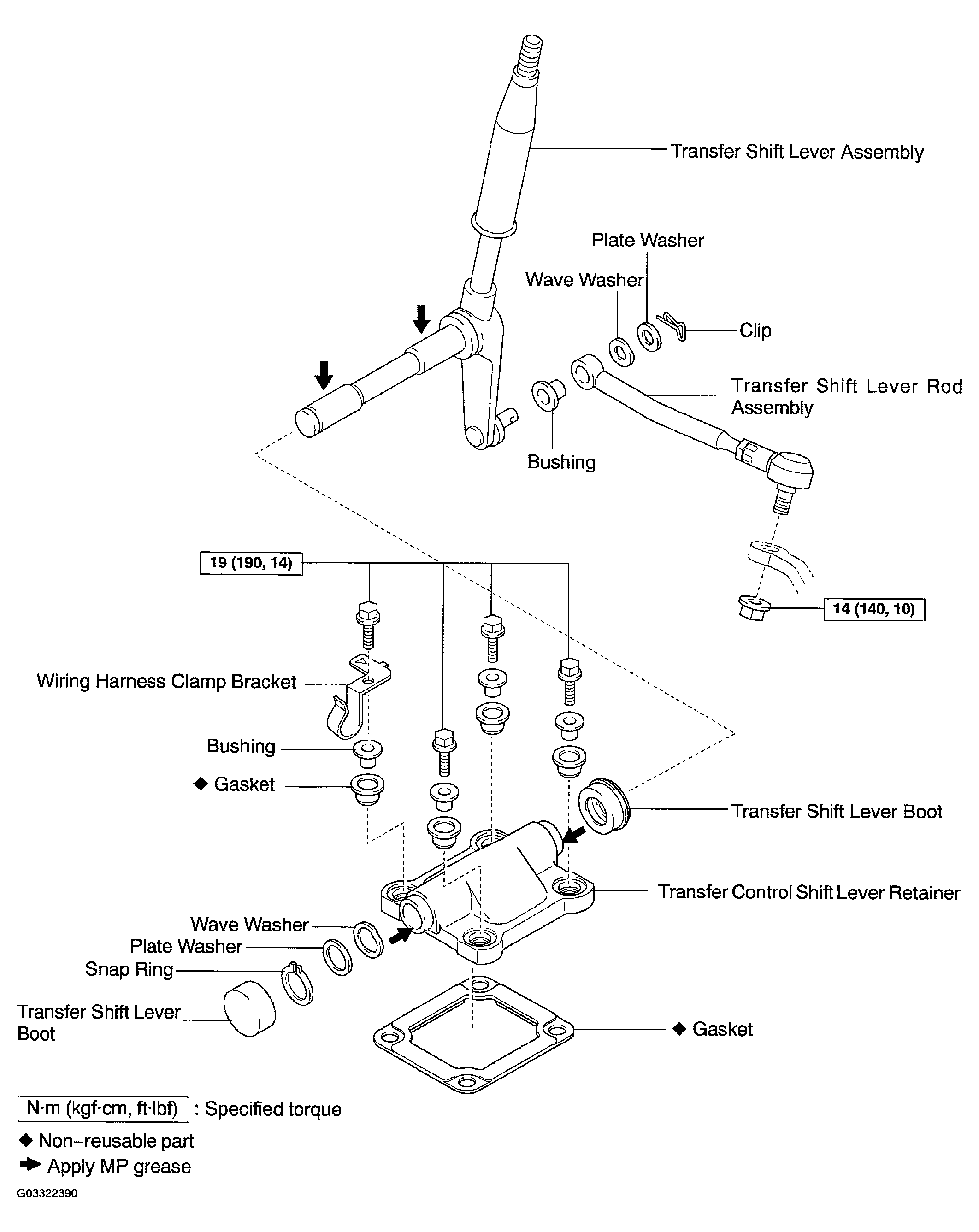

Fig 1: Identifying Transfer Shift Lever Assembly Components

G03322390

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
