Transfer Unit: Components

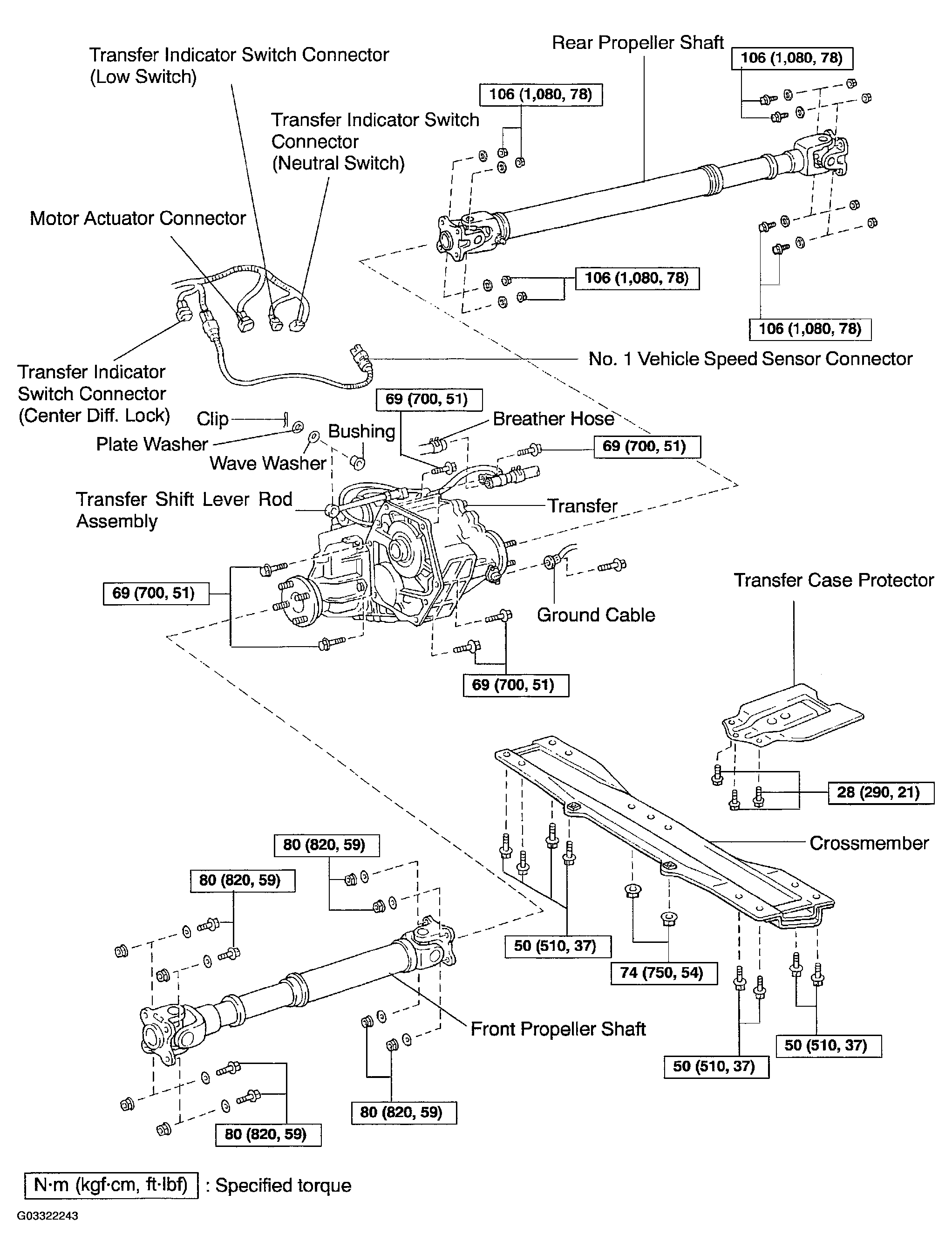

Fig 1: Identifying Transfer Unit Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
