Testing Procedure

For wiring diagram, see Fig 1. For Testing procedure, see Fig 2.

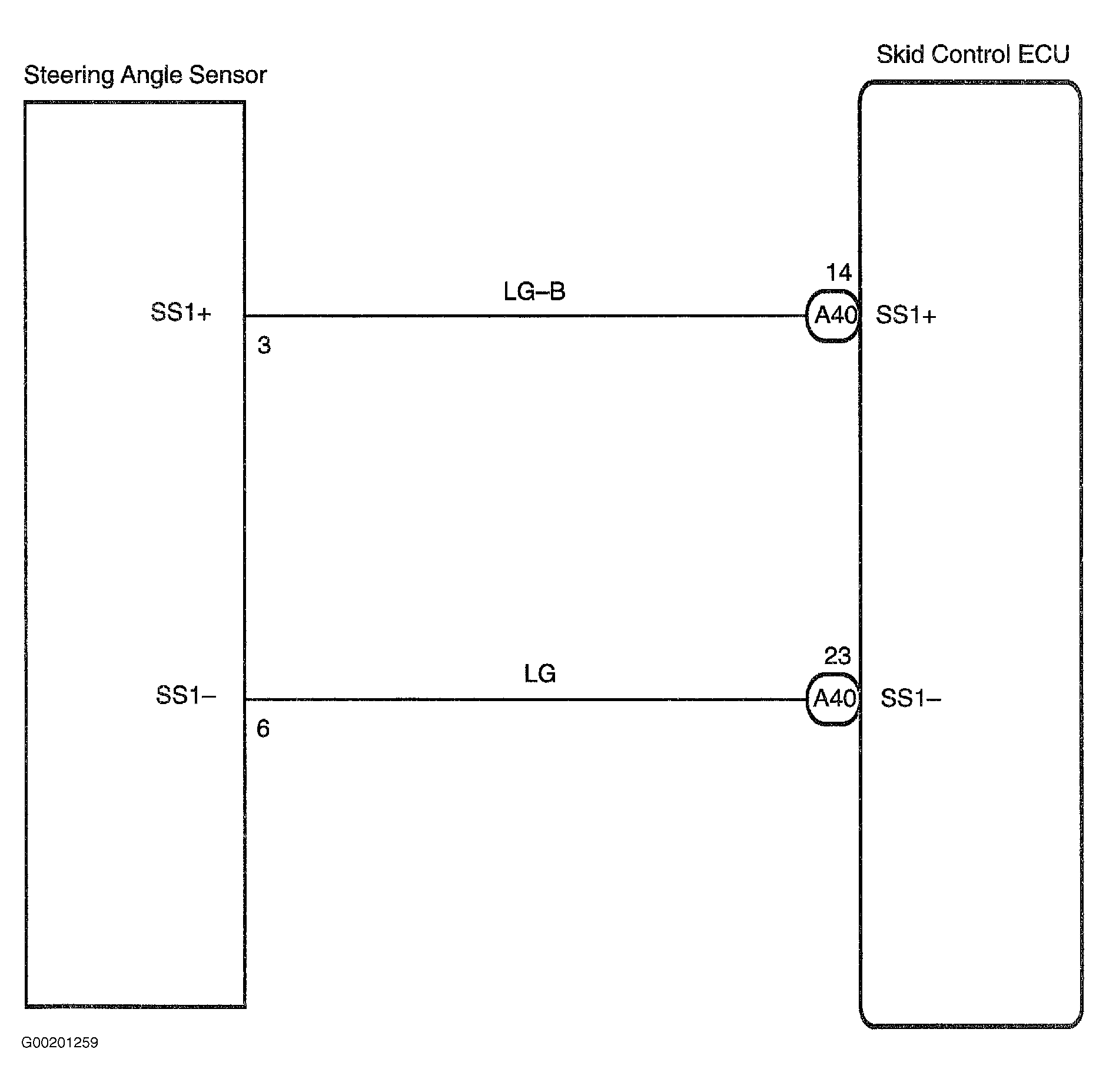

Fig 1: Wiring Diagram Steering Angle Sensor Communication Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

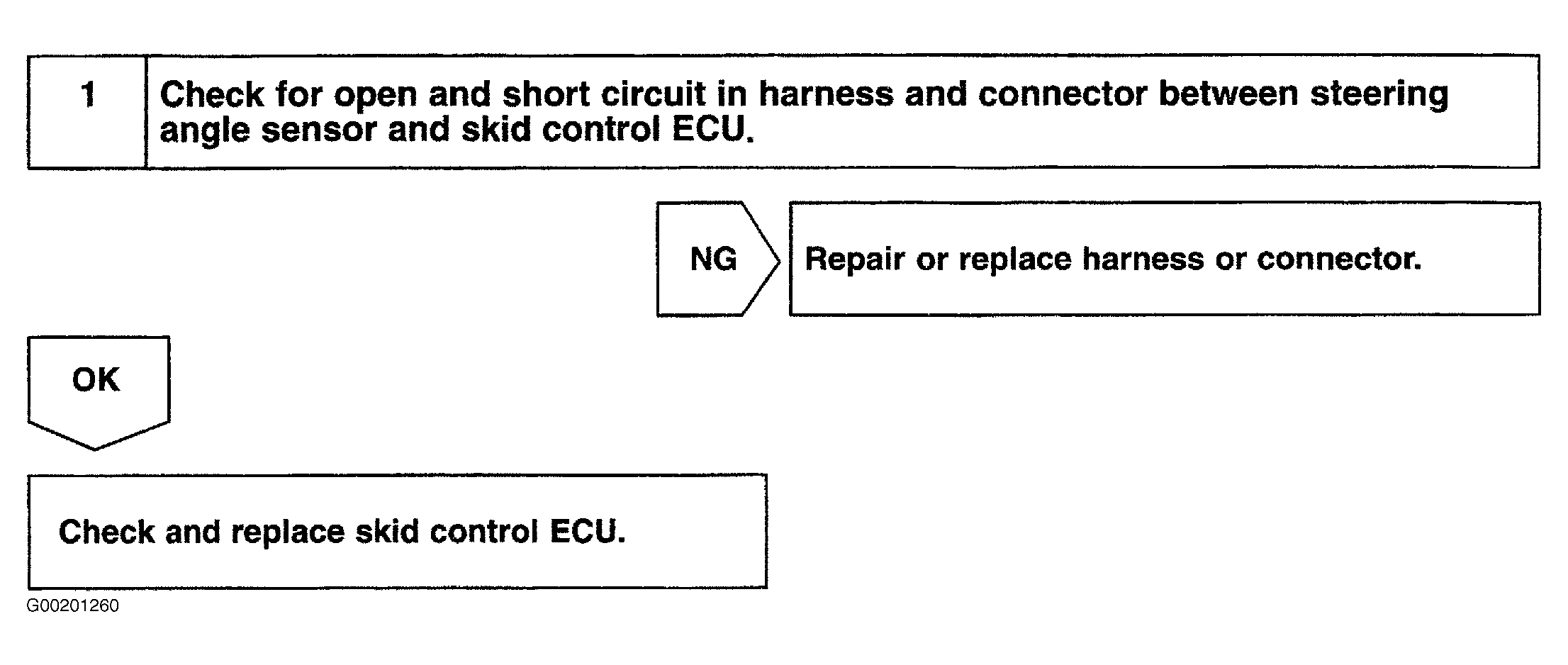

Fig 2: Testing Procedure Steering Angle Sensor Communication Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
