Alignment Specifications & Procedure: Specification

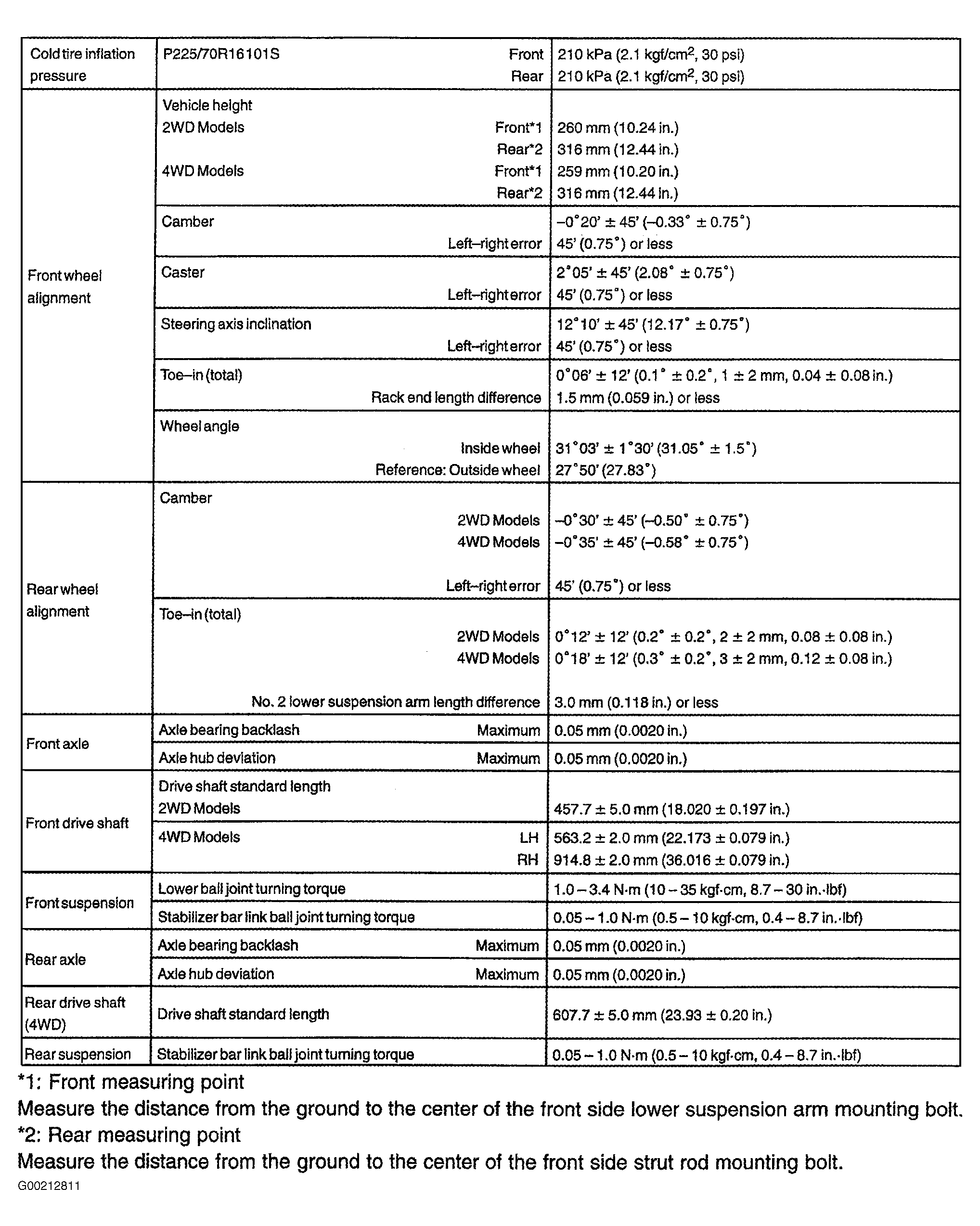

Fig 1: Wheel Alignment Specifications (RX300)
G00212811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
