Inspection Procedure

  1. INSPECT NAVIGATION ECU(+B5 ACC5 GND)
    1. Remove the navigation ECU with connectors with still connected.
    2. Check voltage.
      1. Measure voltage between terminals +B, ACC and GND of navigation ECU at each conditions, as shown in the chart.

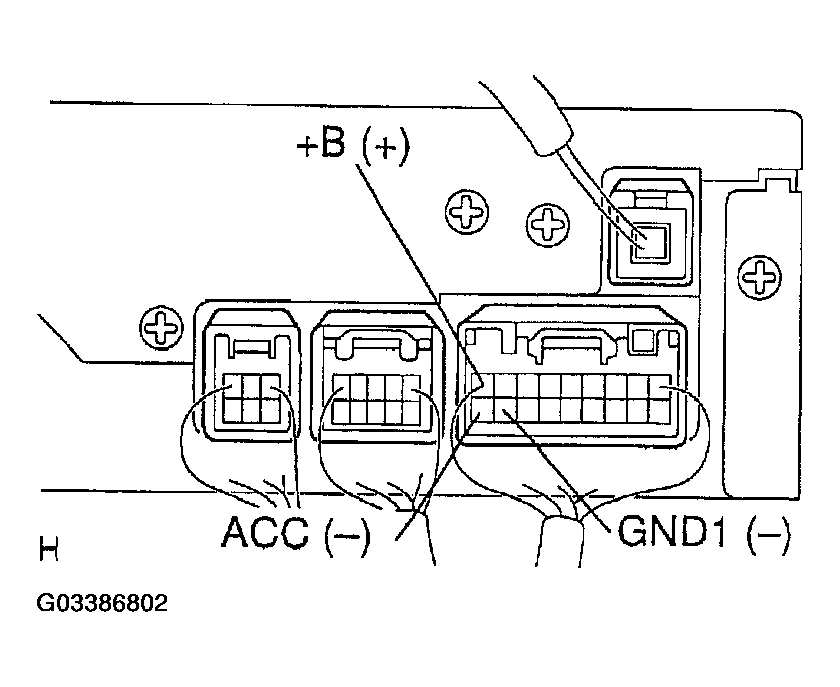

      Fig 1: Measuring Voltage Between Terminals +B, ACC & GND Of Navigation ECU
      G03386802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Voltage:

      VOLTAGE CHART

      Terminal Condition Voltage (V)
      +B <=> GND Constant 10 - 14 V
      ACC <=> GND Turn ignition switch ACC 10 - 14 V
    3. Check continuity.
      1. Check that the continuity exists between terminal GND of navigation ECU and body ground.

      Standard: Continuity exists.

    1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
    2. OK: CHECK AND REPLACE NAVIGATION ECU
