Navigation Screen Not Stabilized (Synchronous Error)
›
Wiring Diagram
Navigation Screen Not Stabilized (Synchronous Error): Wiring Diagram

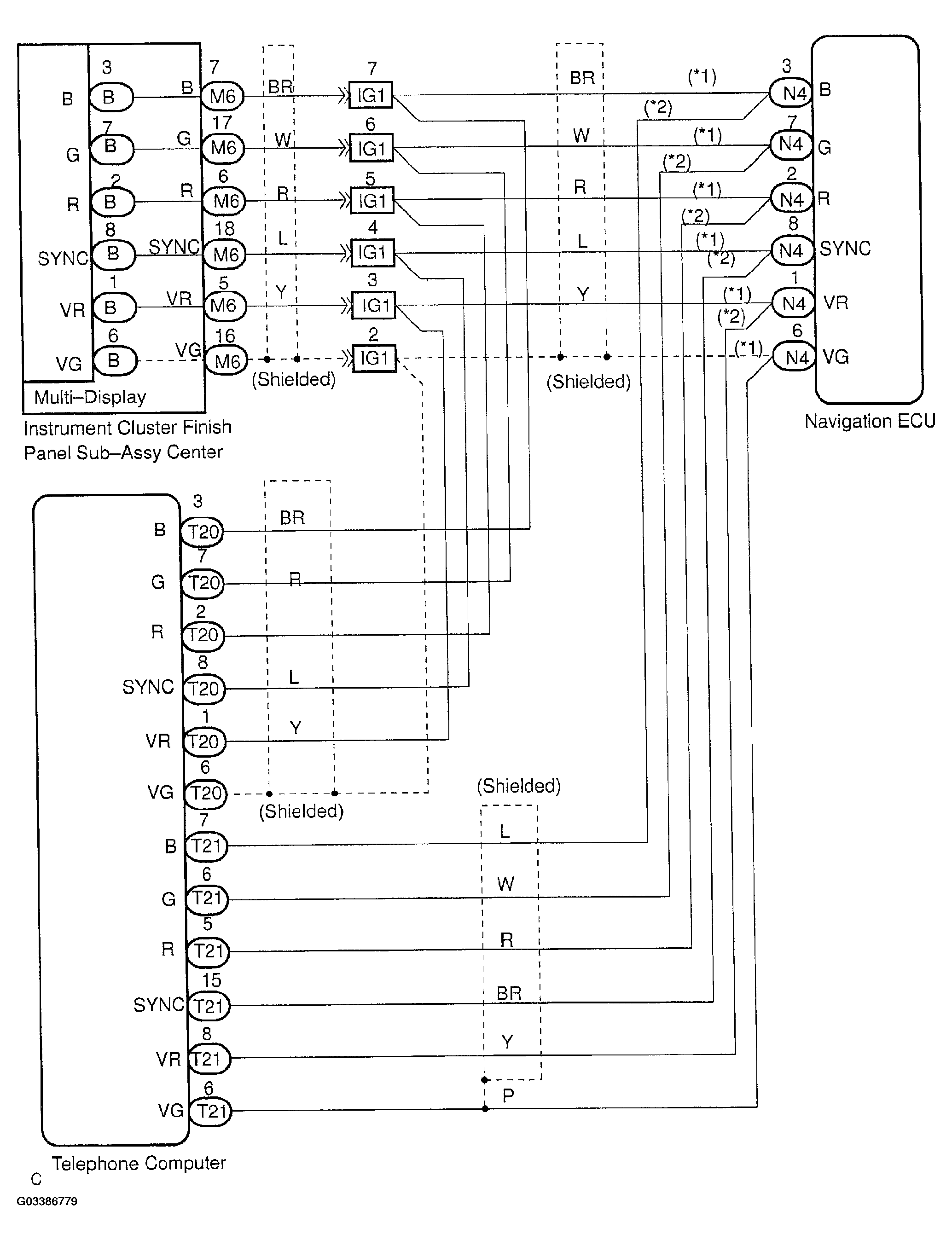

Fig 1: Navigation Screen Not Stabilized (Synchronous Error) Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
