Front Bumper Cover: Components

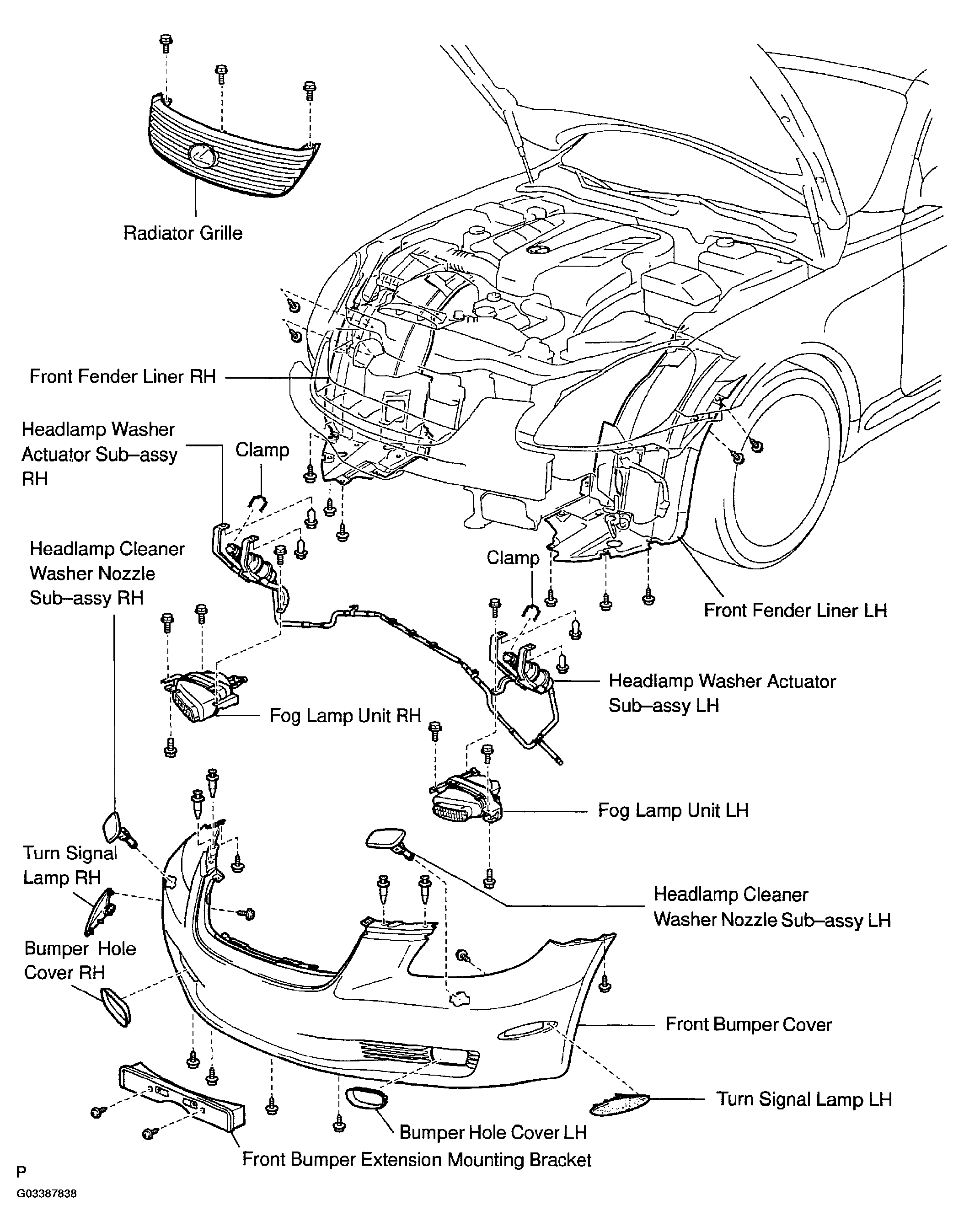

Fig 1: Identifying Front Bumper Cover Components
G03387838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
