Back Window Frame Sub-ASSY Upper: Overhaul

HINT:

COMPONENTS: See Figure

1. MOVE ROOF PANEL TO HALF
   1. Referring to the manual operation procedures, half-open the roof.

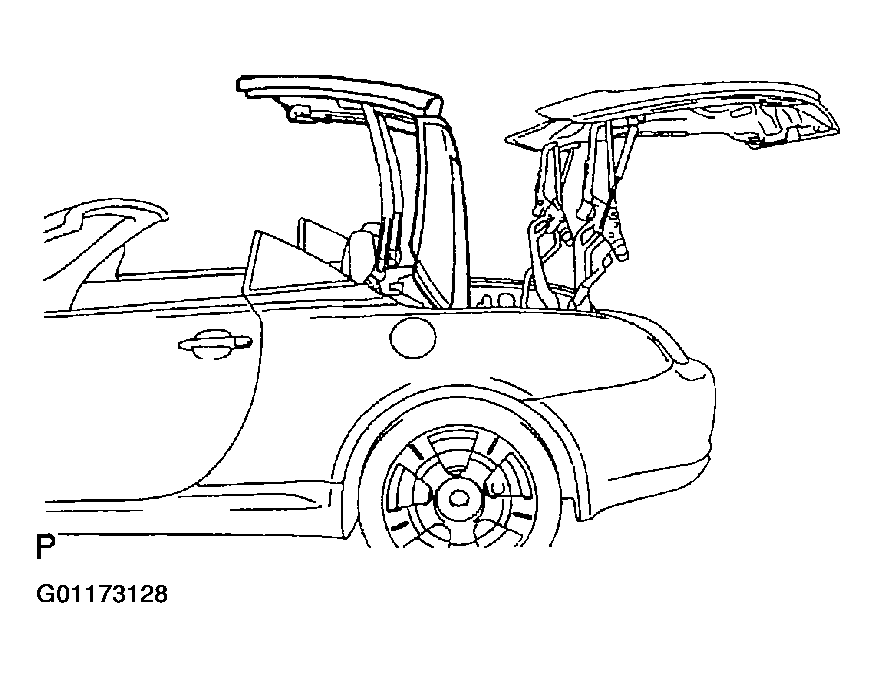

      Fig 1: Moving Roof Panel To Half

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. REMOVE ROOF SIDE GARNISH INNER RH [62471A / 98-89]
   1. Using a clip remover, remove the clip.
   2. Using a screwdriver, disengage the 7 clips.

      HINT:

      Tape the screwdriver tip before use.

   3. Remove the inner roof side garnish RH.
      Fig 2: Removing Roof Side Garnish Inner Screws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. REMOVE ROOF SIDE GARNISH INNER LH [62472A / 98-89]
4. REMOVE ROOF HEADLINING ASSY REAR [63320E / 98-90]
   1. Using a screwdriver, disengage the 7 clips.

      HINT:

      Tape the screwdriver tip before use.

   2. Remove the rear roof headlining rear.

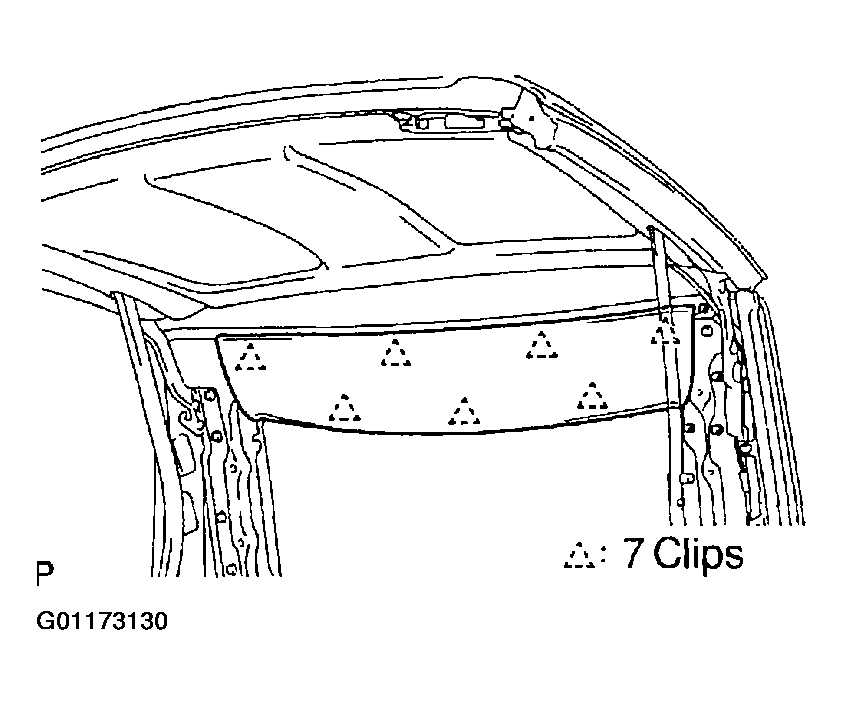

      Fig 3: Identifying Clip Location

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. REMOVE BACK WINDOW FRAME SUB-ASSY UPPER [63105D / 98-87]
   1. Using a torx socket, remove the 8 screws.

      Torx socket (T40): 09042-00020

   2. Remove the back window frame.

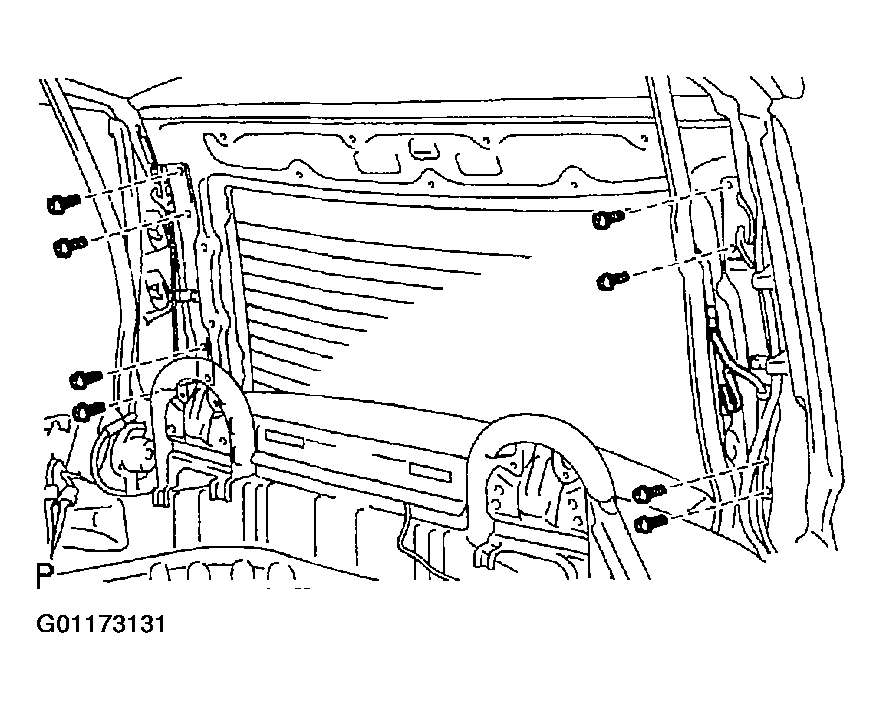

      Fig 4: Removing Back Window Frame Sub-Assembly Screws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. REMOVE REMOVABLE ROOF WEATHERSTRIP REAR [63252B / 98-87]
   1. Remove the 4 screws, 2 nuts and 4 clips.
   2. Using a clip remover, disengage the clips.

      HINT:

      Tape the screwdriver tip before use.

   3. Remove the removable roof weatherstrip rear.

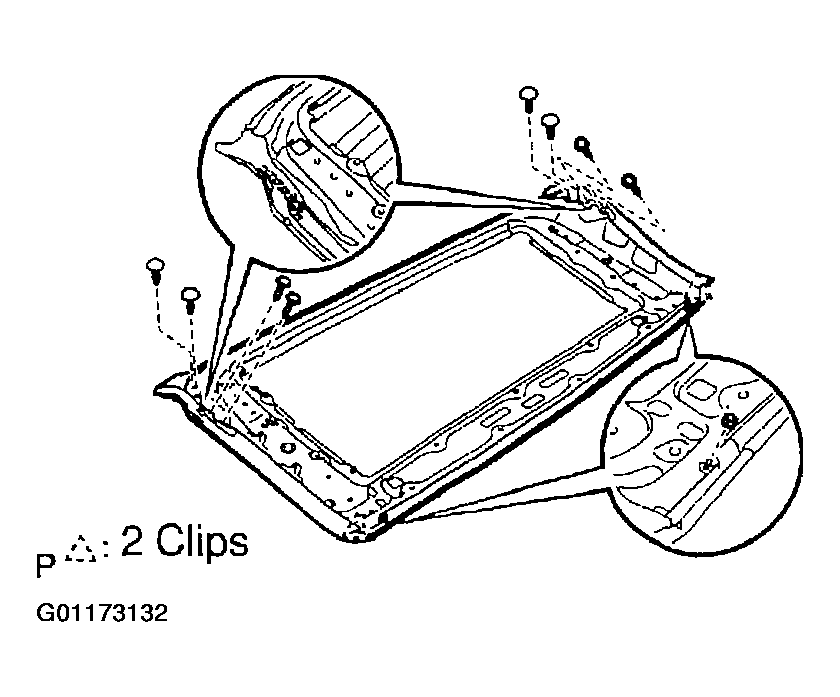

      Fig 5: Removing Rear Roof Weatherstrip Screws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. REMOVE ROOF SIDE RAIL WEATHER STRIP RETAINER REAR RH [62371A / 98-106]
   1. Remove the 4 screws and rear roof side rail weatherstrip retainer RH.

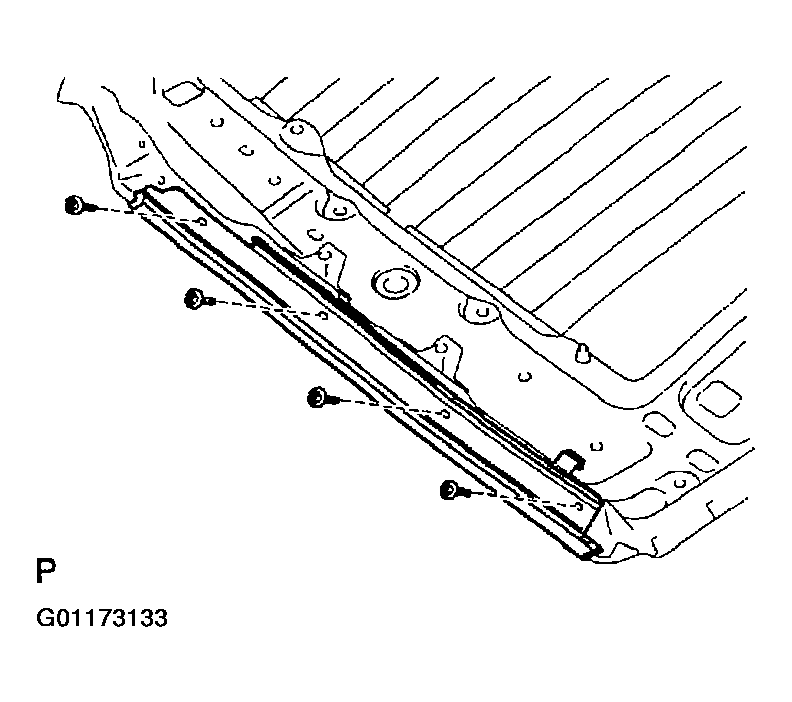

      Fig 6: Removing Rear Roof Side Rail Weather Strip Retainer Screws RH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. REMOVE ROOF SIDE RAIL WEATHER STRIP RETAINER REAR LH [62372A / 98-106]
9. REMOVE BACK WINDOW OUTSIDE MOULDING
10. REMOVE BACK WINDOW GLASS [64811 / 98-87]
11. CLEAN BACK WINDOW GLASS [64811 / 98-87]
12. INSTALL BACK WINDOW GLASS ADHESIVE DAM [64813D / 98-87]
13. INSTALL BACK WINDOW GLASS [64811 / 98-87]
14. INSTALL ROOF SIDE RAIL WEATHER STRIP RETAINER REAR LH [62372A / 98-106]
15. INSTALL ROOF SIDE RAIL WEATHER STRIP RETAINER REAR RH [62371A / 98-106]
16. INSTALL REMOVABLE ROOF WEATHERSTRIP REAR [63252B / 98-87]
17. INSTALL BACK WINDOW FRAME SUB-ASSY UPPER [63105D / 98-87]

    Torque: 40 N.m (408 kgf.cm, 30 ft.lbf)

18. INSTALL ROOF HEADLINING ASSY REAR [63320E / 98-90]
19. INSTALL ROOF SLIDER RH [62471A / 98-89]
20. INSPECT FOR LEAK AND REPAIR
