Roof Panel RH Link Sub-ASSY: Components

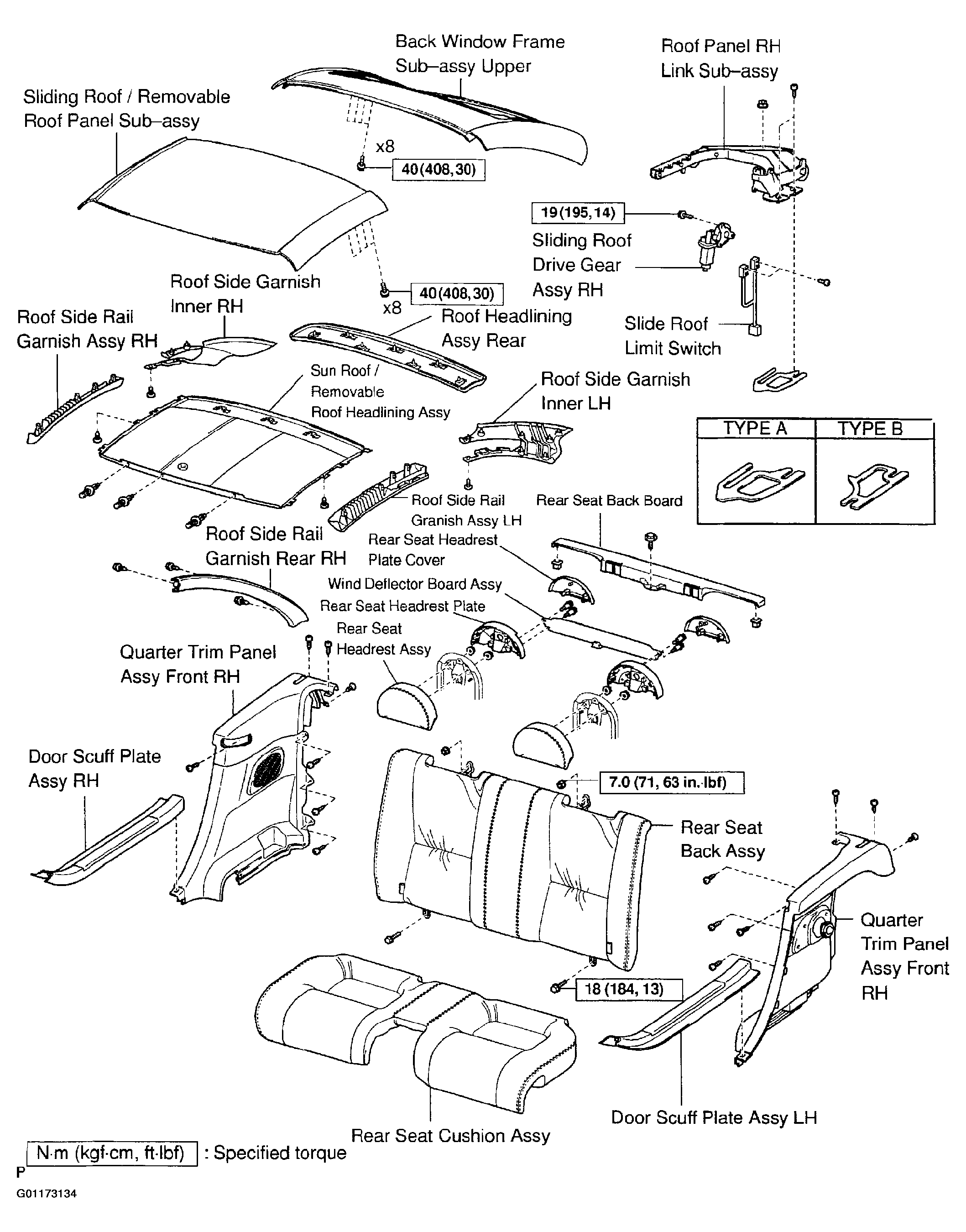

Fig 1: Identifying Components Of Roof Panel RH Link Sub-Assembly (1 Of 2)
G01173134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

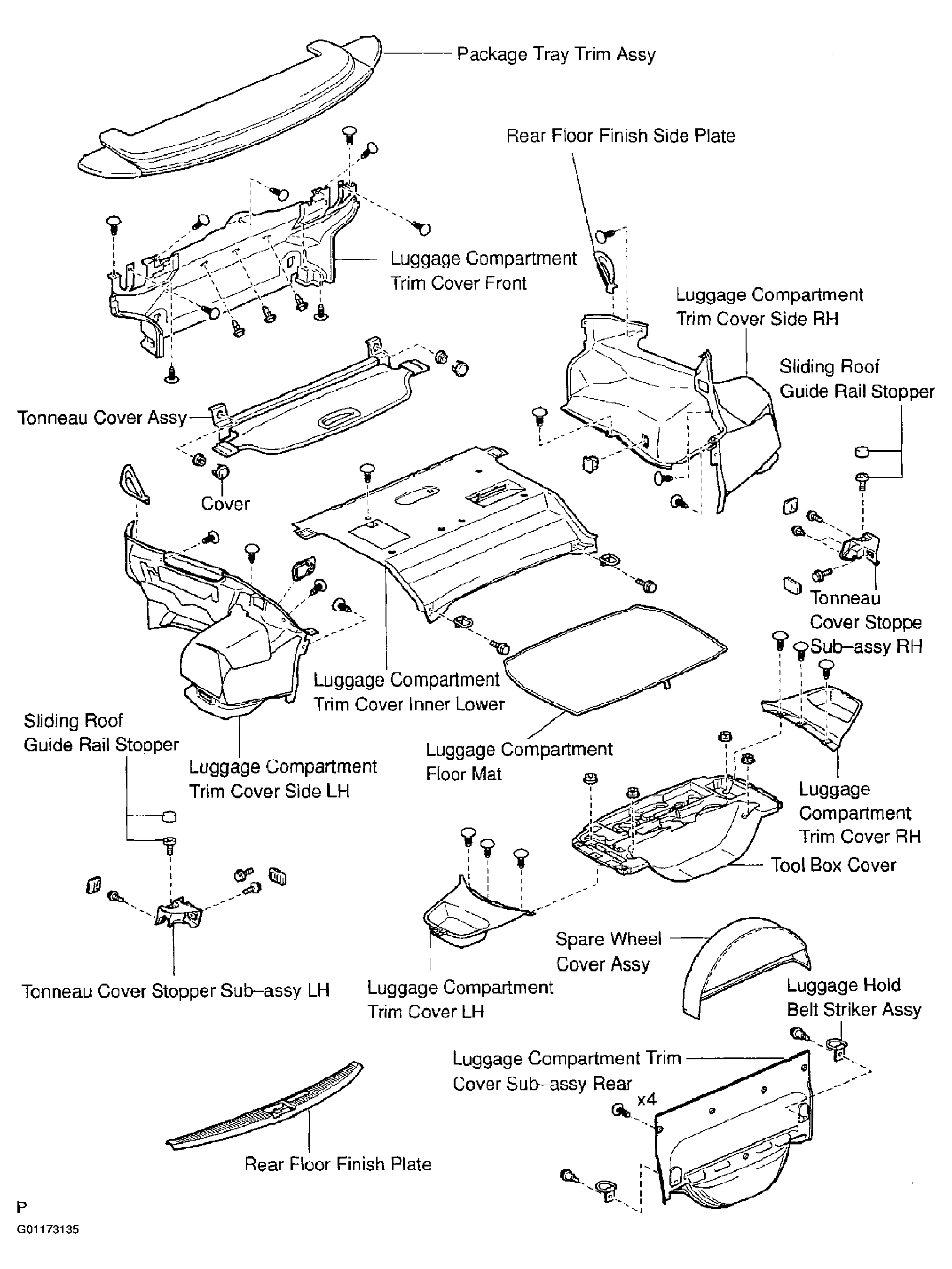

Fig 2: Identifying Components Of Roof Panel RH Link Sub-Assembly (2 Of 2)
G01173135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
