Front Seat: Components

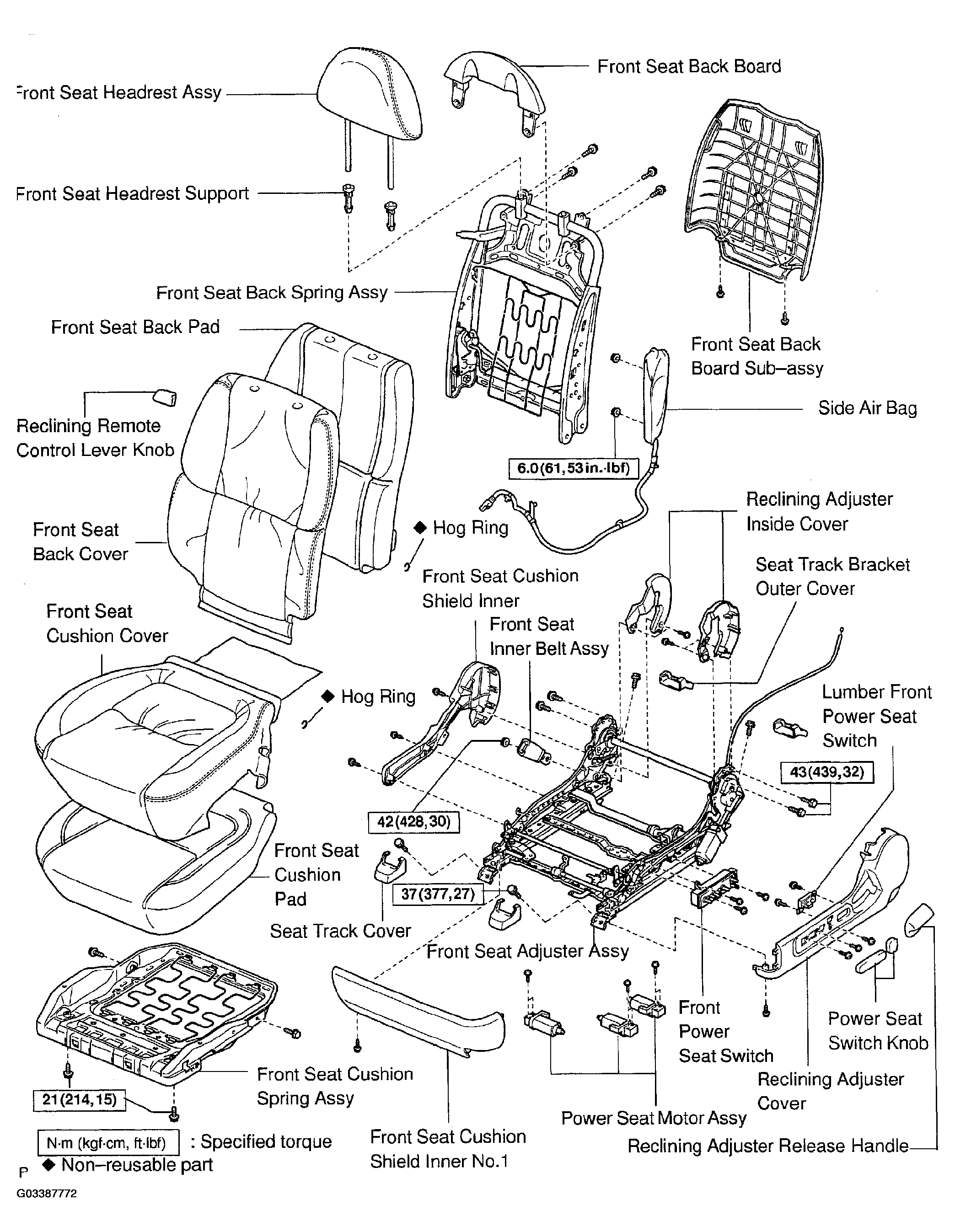

Fig 1: Exploded View Of Front Seat Components
G03387772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
