Window Cannot Be Operated Via Regulator Switch In Driver's Side (Power Window Motor Circuit): Wiring Diagram

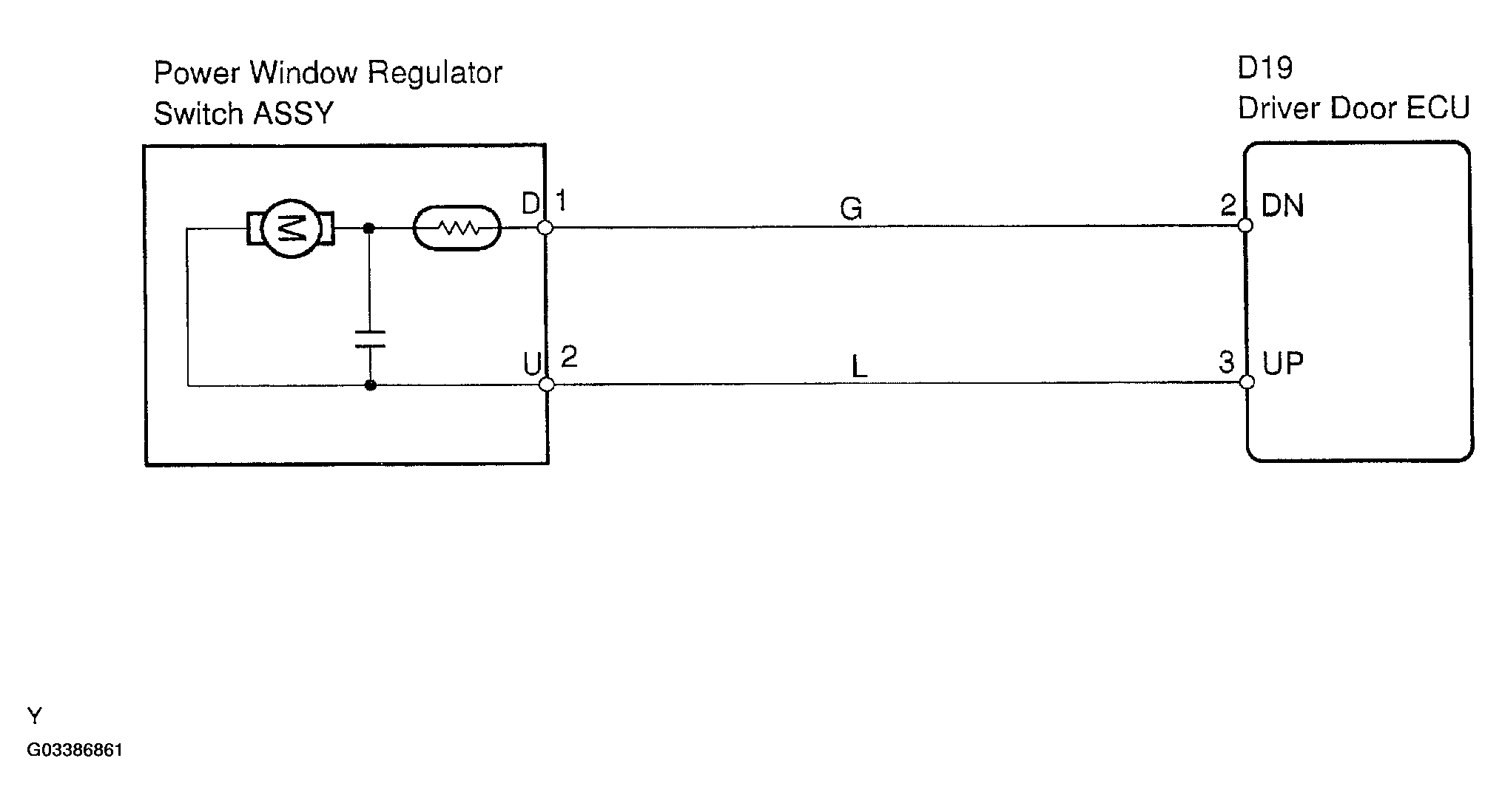

Fig 1: Via Regulator Switch In Driver's Side (Power Window Motor Circuit) Wiring Diagram
G03386861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
