Window Cannot Be Operated Via Regulator Switch On Passengers Side (Regulator Switch Circuit): Wiring Diagram

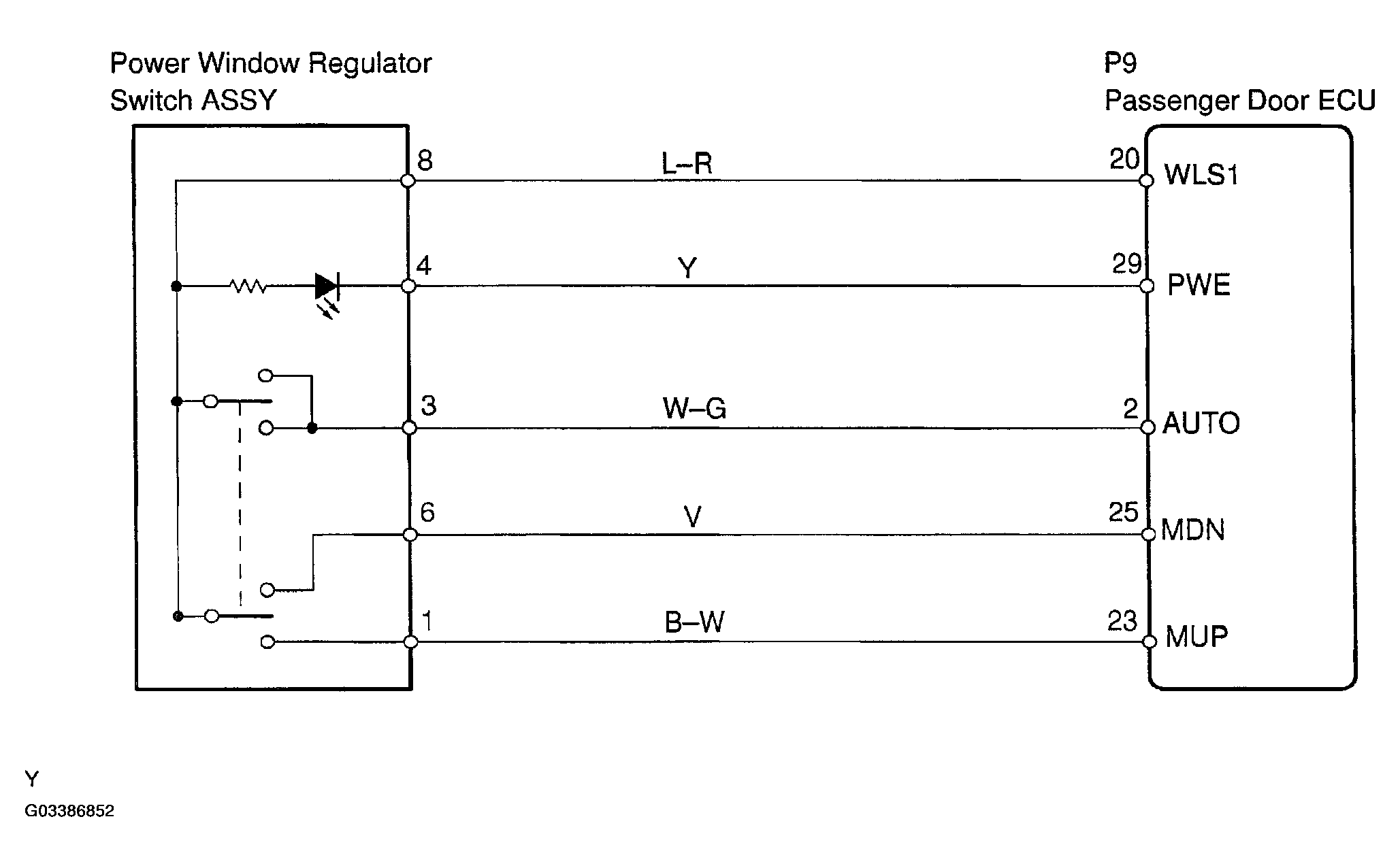

Fig 1: Regulator Switch Circuit Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
