DTC C1249/49: Stop Light Switch Circuit
›
Circuit Description
Circuit Description
For circuit description see
Fig 1
.

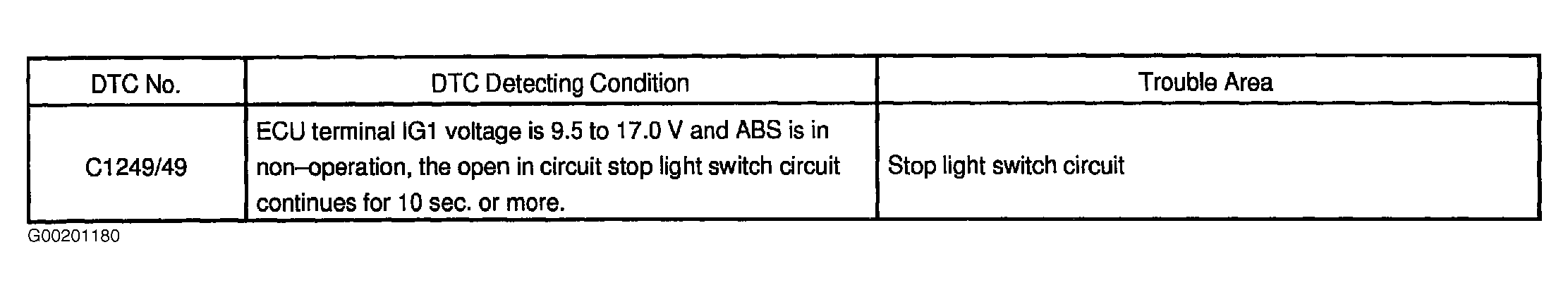

Fig 1: Circuit Description Stop Light Switch Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
