Lexus
›
2002
›
SC 430
›
Repair and Diagnosis
›
Brakes
›
Traction Control
›
Anti-Lock Brake System
›
Pin Voltage Test
Pin Voltage Test

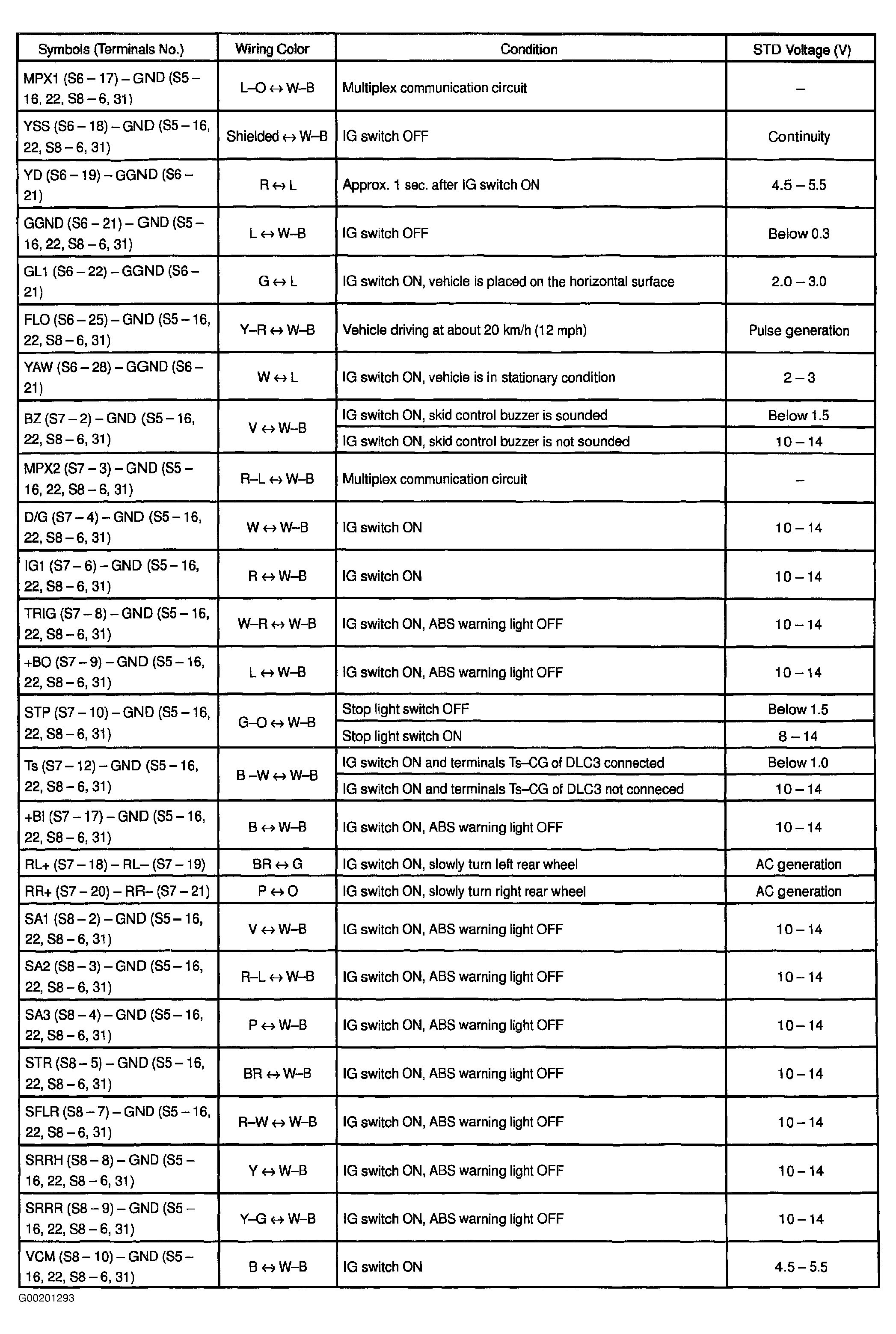

Fig 1: Identifying Pin Voltage Of ECU (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

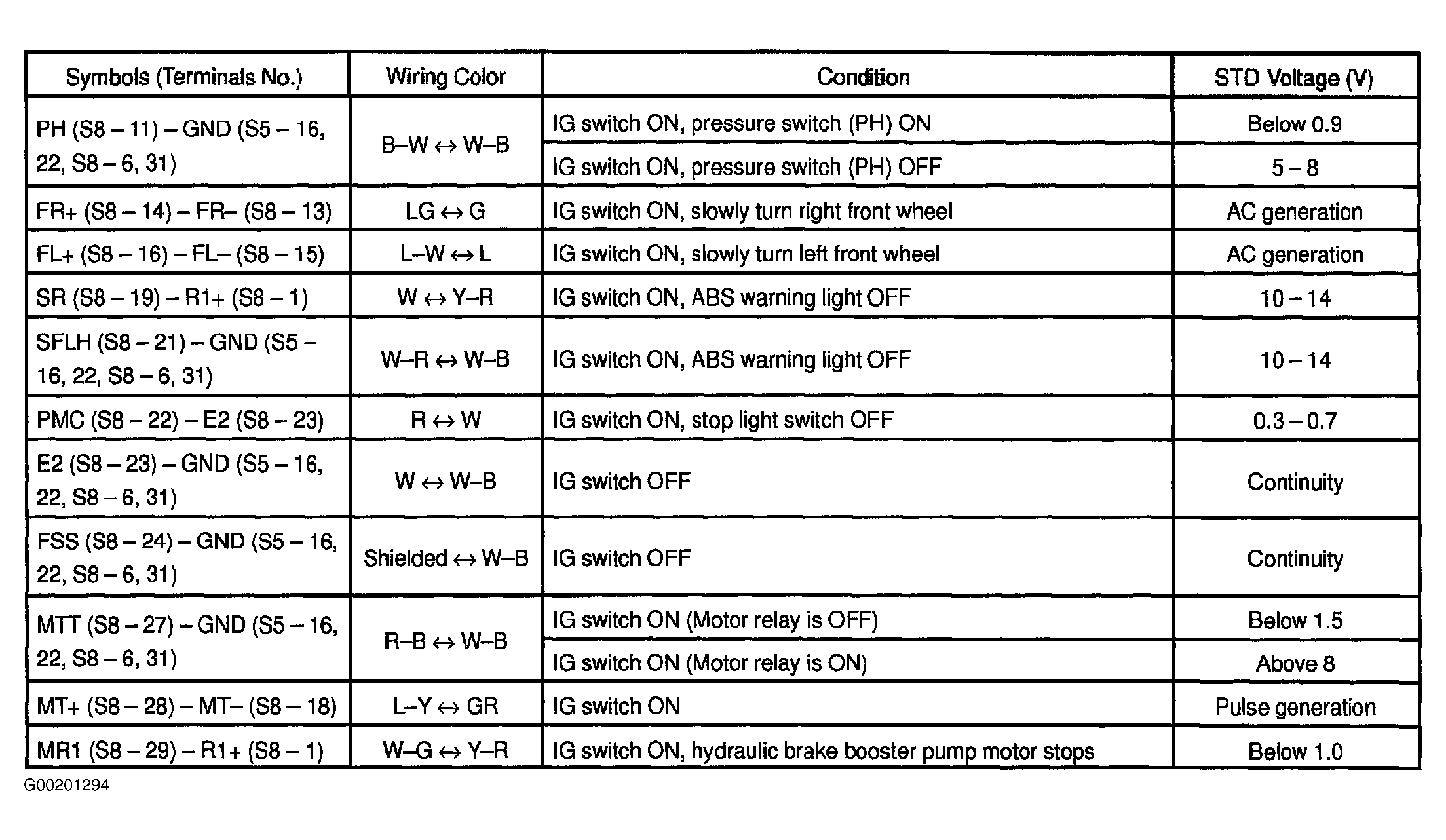

Fig 2: Identifying Pin Voltage Of ECU (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

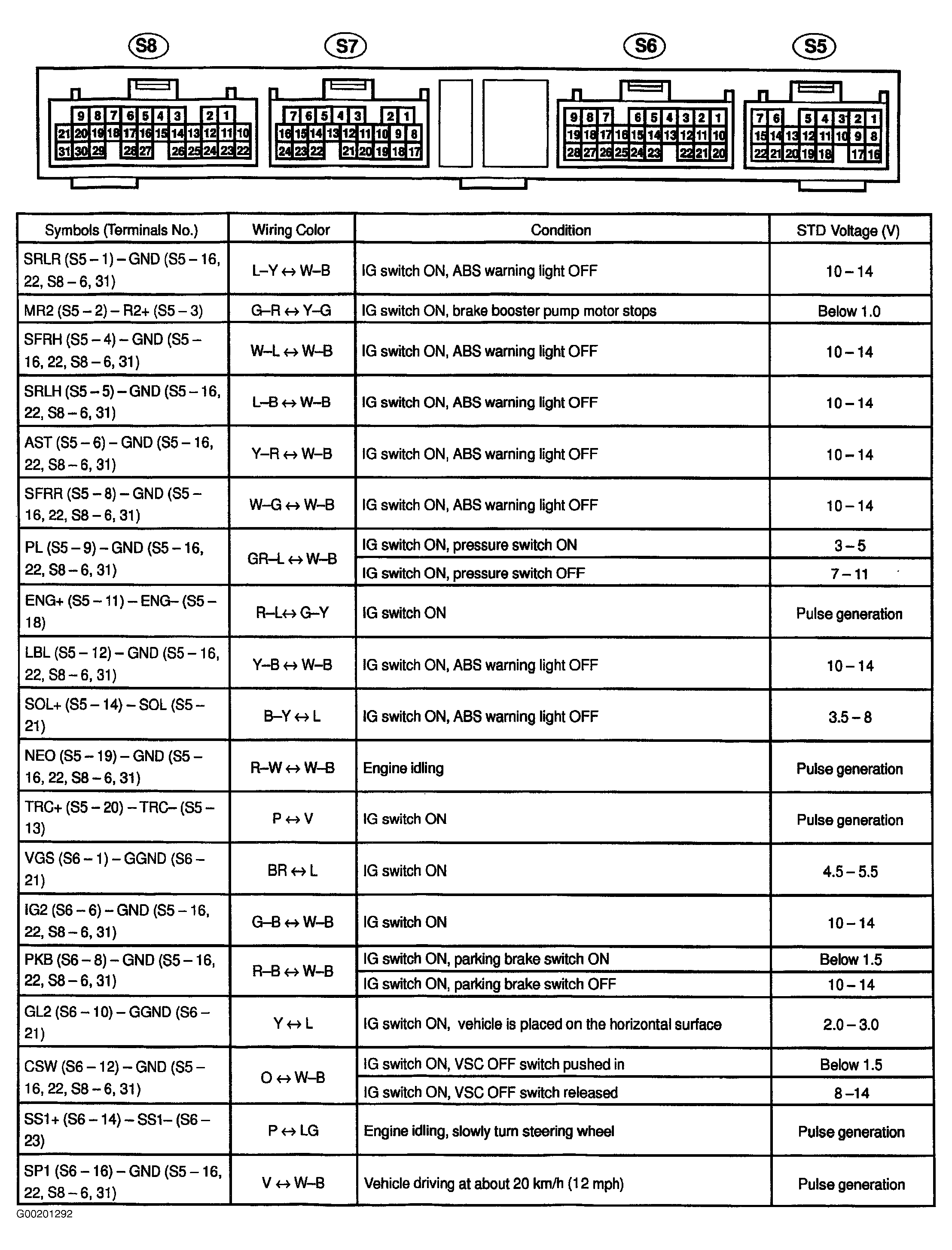

Fig 3: Identifying Pin Voltage Of ECU (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
