Combination Meter - Diagnosis
›
Compass Does Not Function
›
Wiring Diagram
Compass Does Not Function: Wiring Diagram

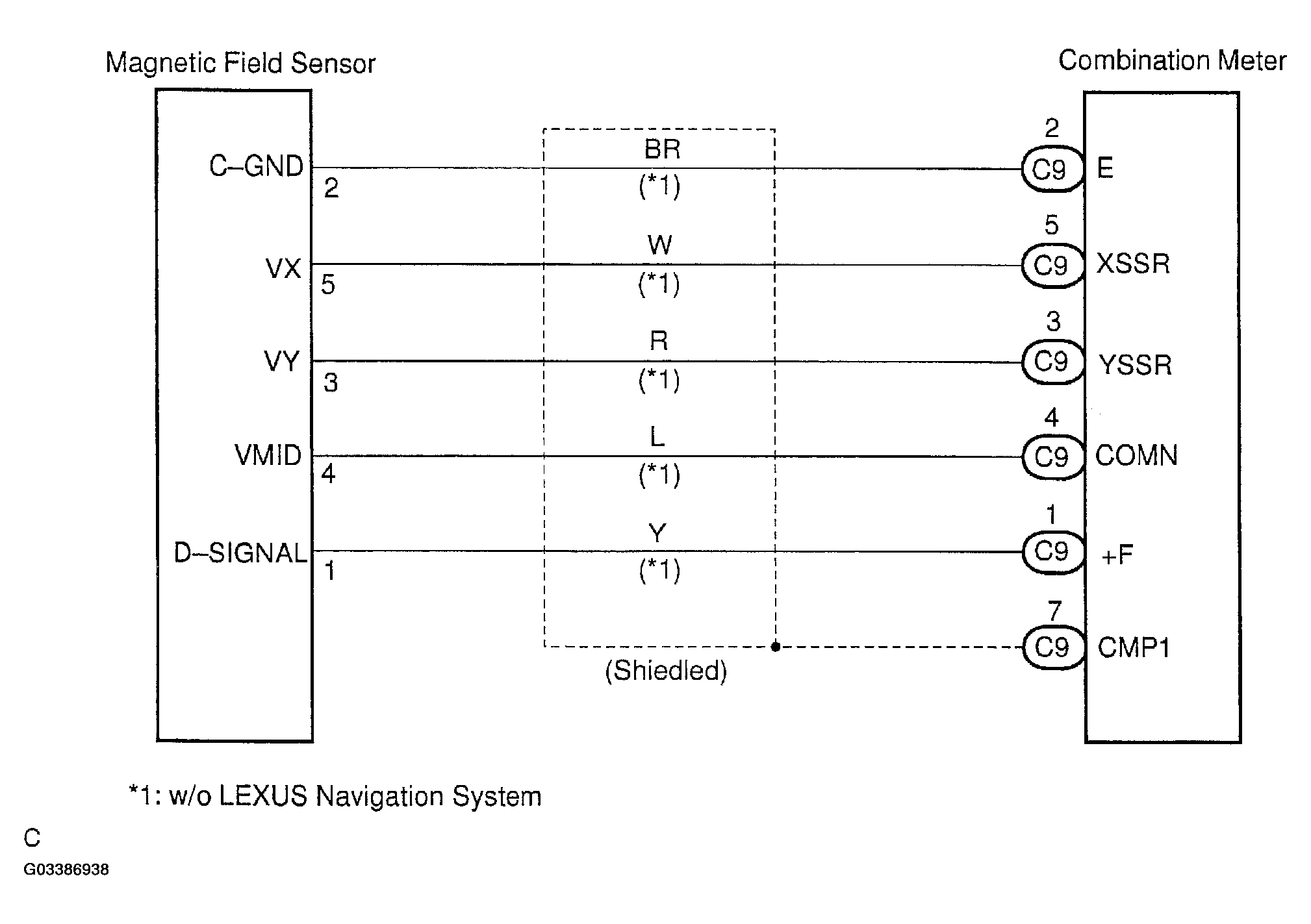

Fig 1: Compass Does Not Function Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
