Exhaust Pipe: Components

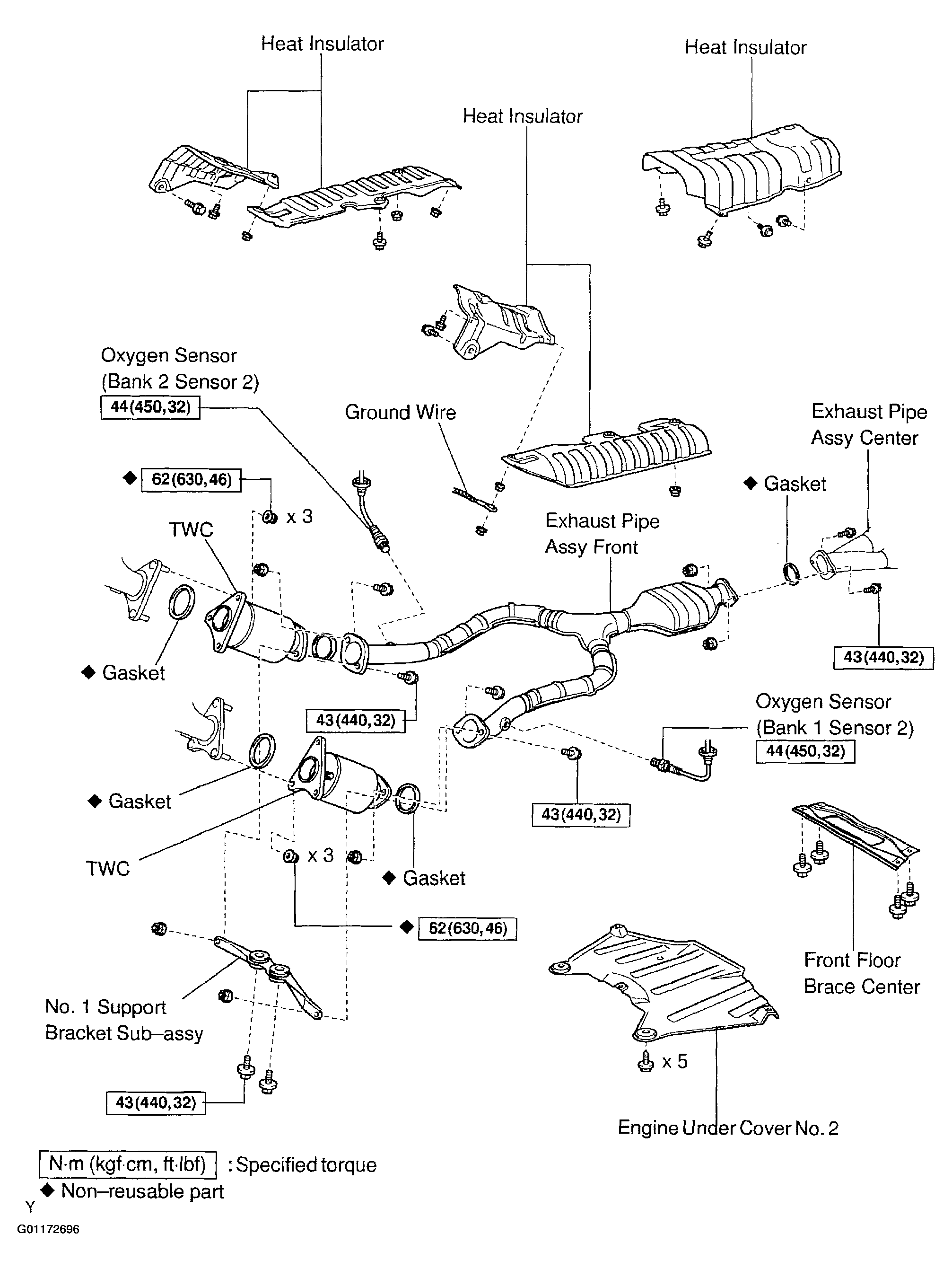

Fig 1: Exploded View Of Exhaust Pipe Components And Torque Specifications (1 Of 2)
G01172696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

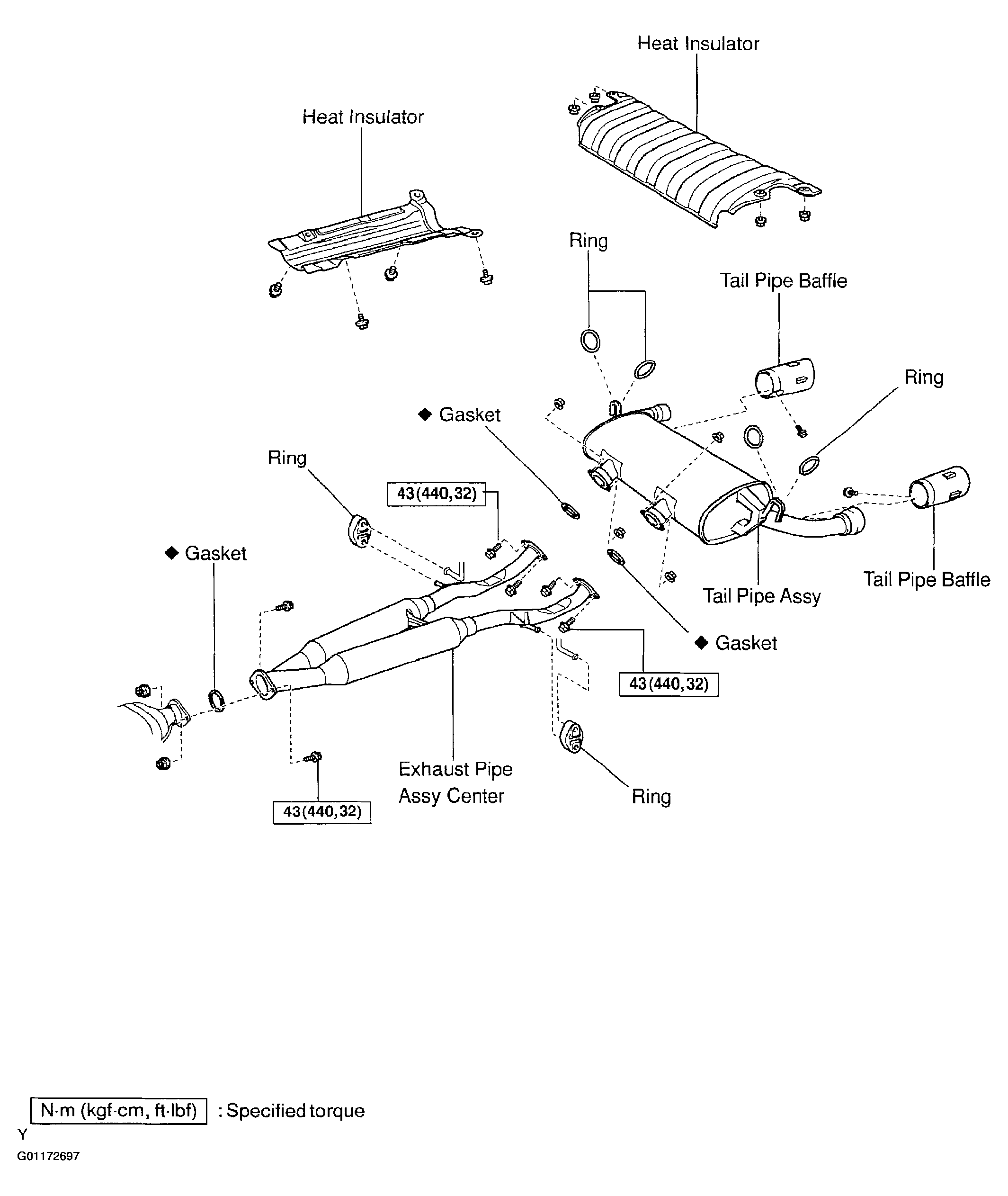

Fig 2: Exploded View Of Exhaust Pipe Components And Torque Specifications (2 Of 2)
G01172697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
