Oil Pump ASSY: Components

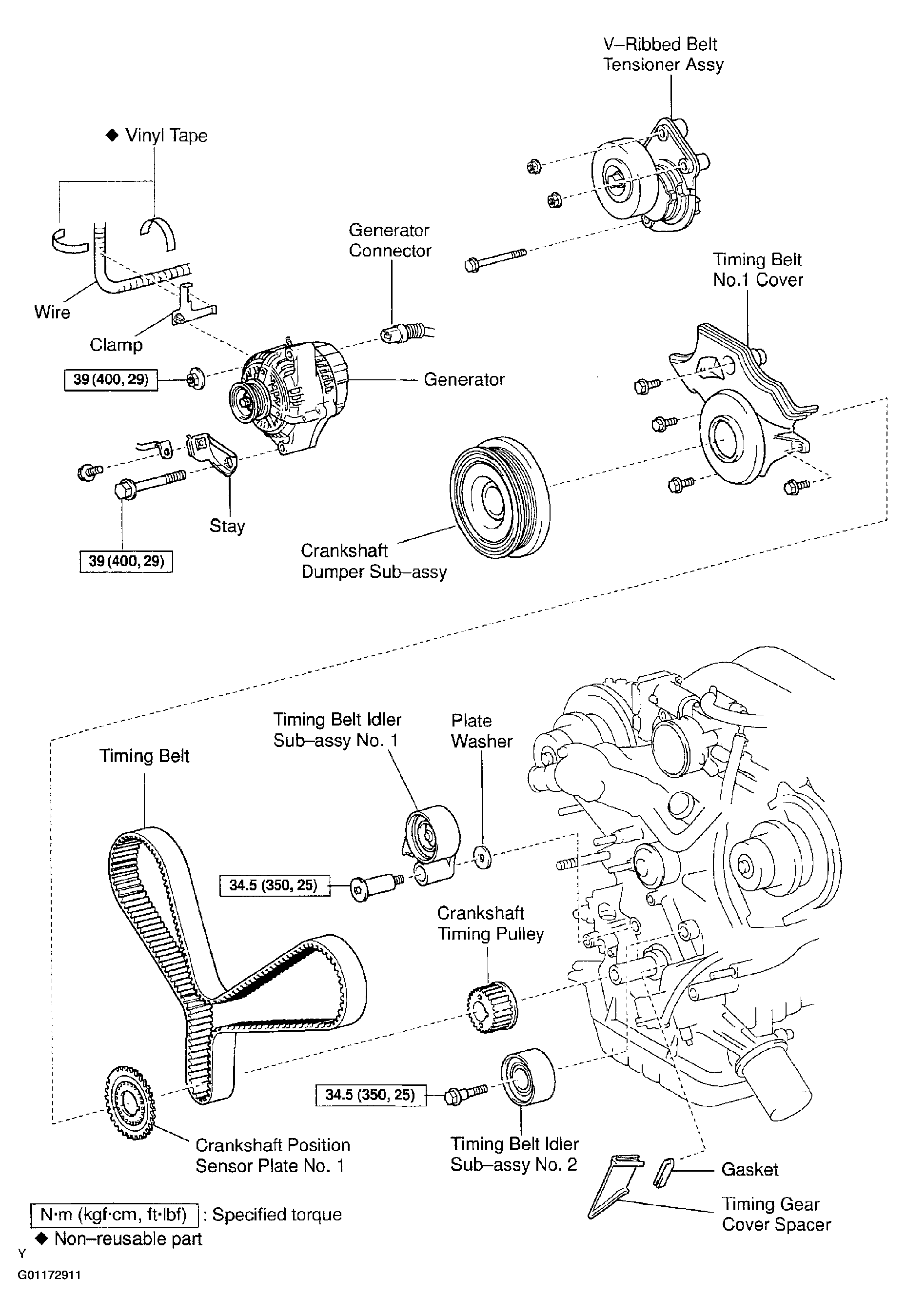

Fig 1: Removing/Installing Oil Pump Assy (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

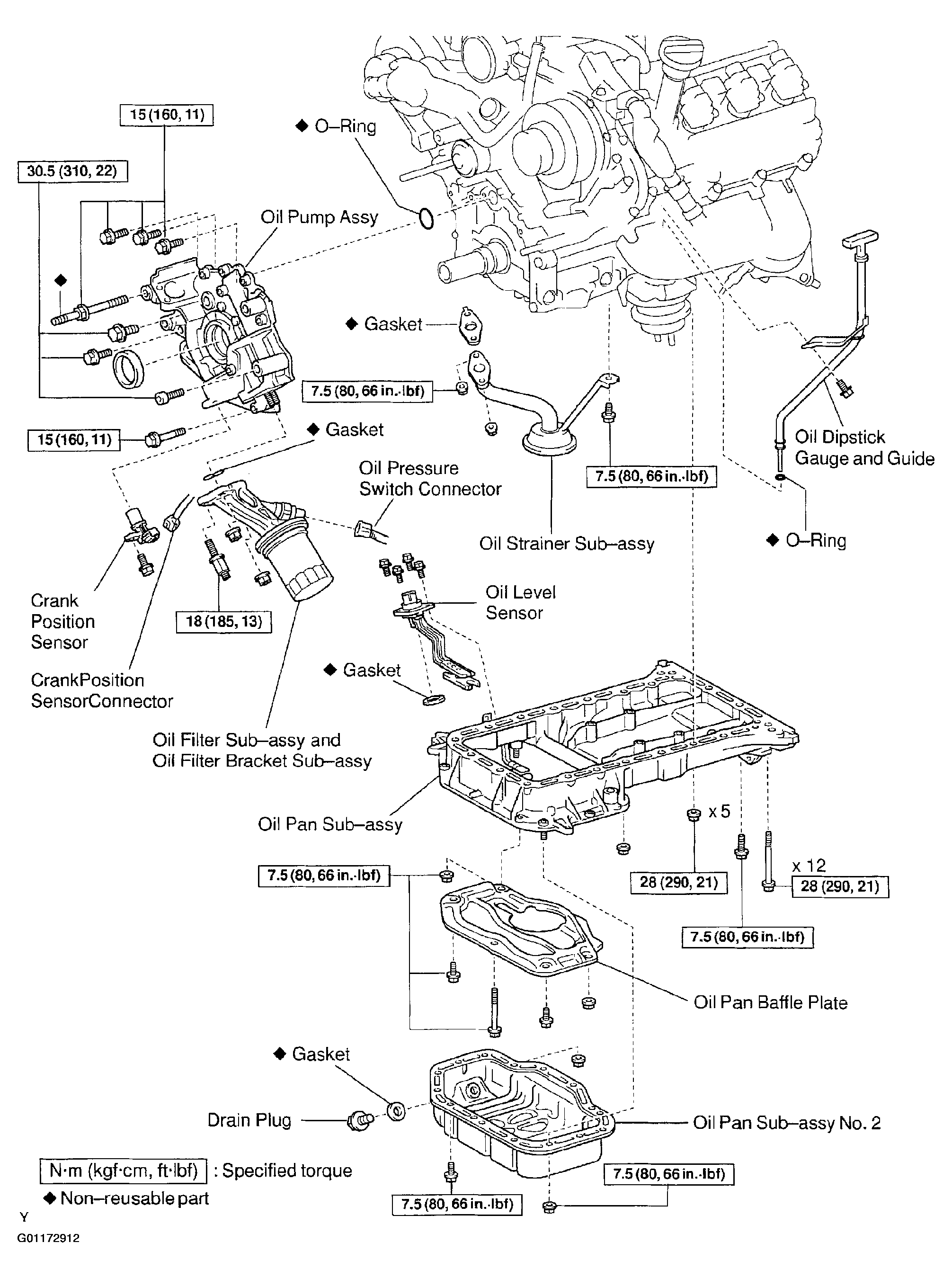

Fig 2: Removing/Installing Oil Pump Assy (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

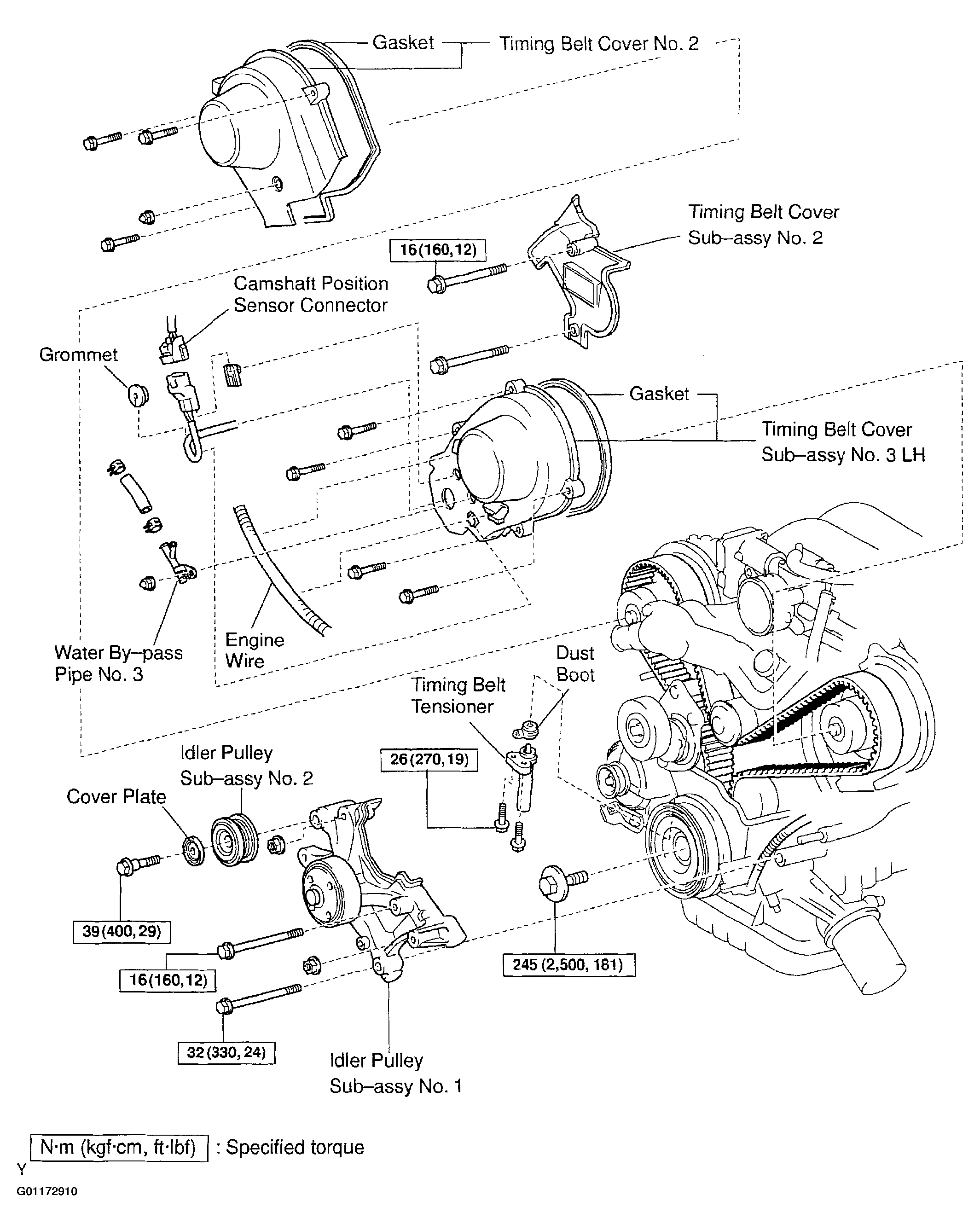

Fig 3: Removing/Installing Oil Pump Assy (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

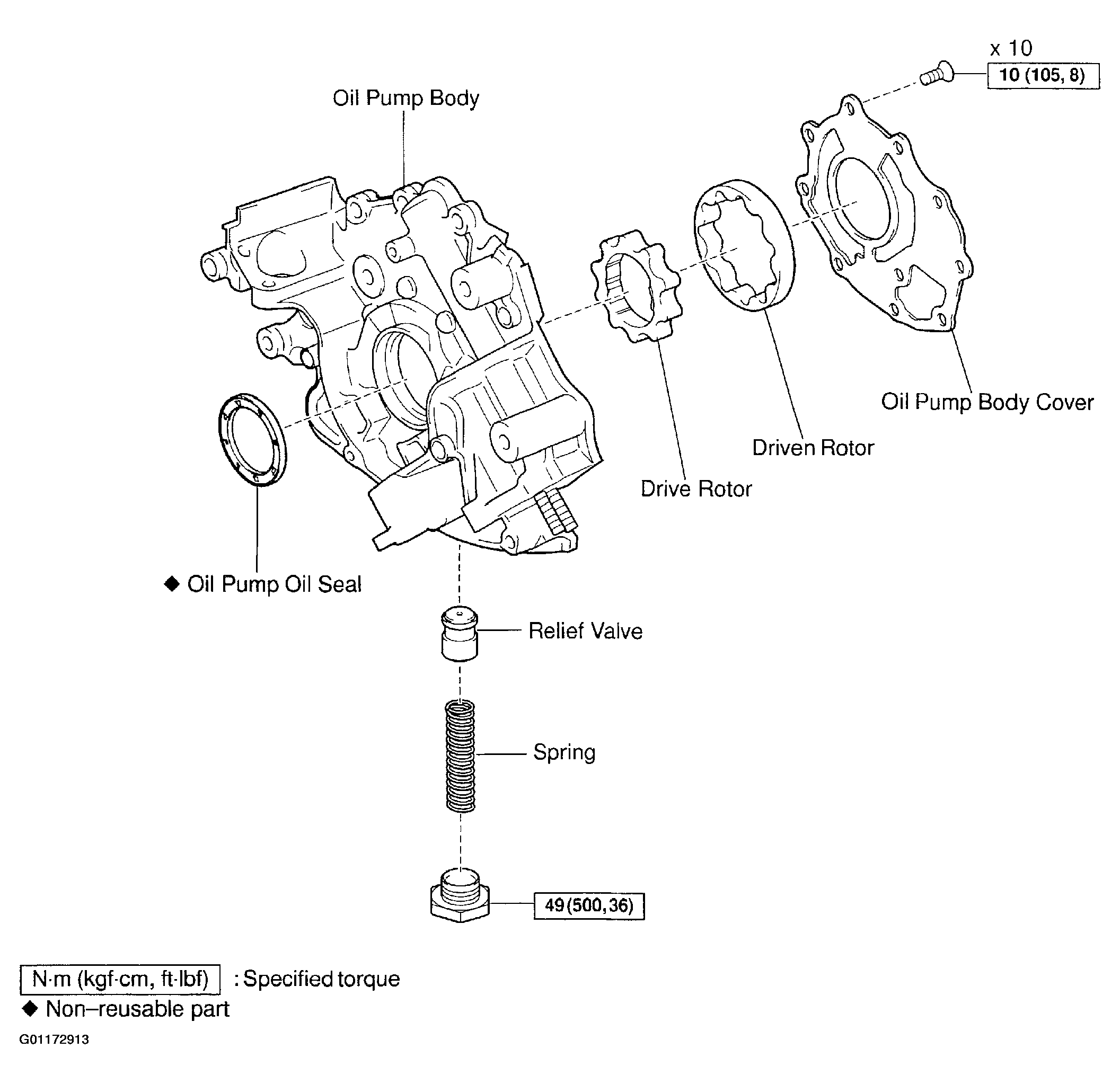

Fig 4: Exploded View Of Oil Pump Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
