Timing Belt: Components

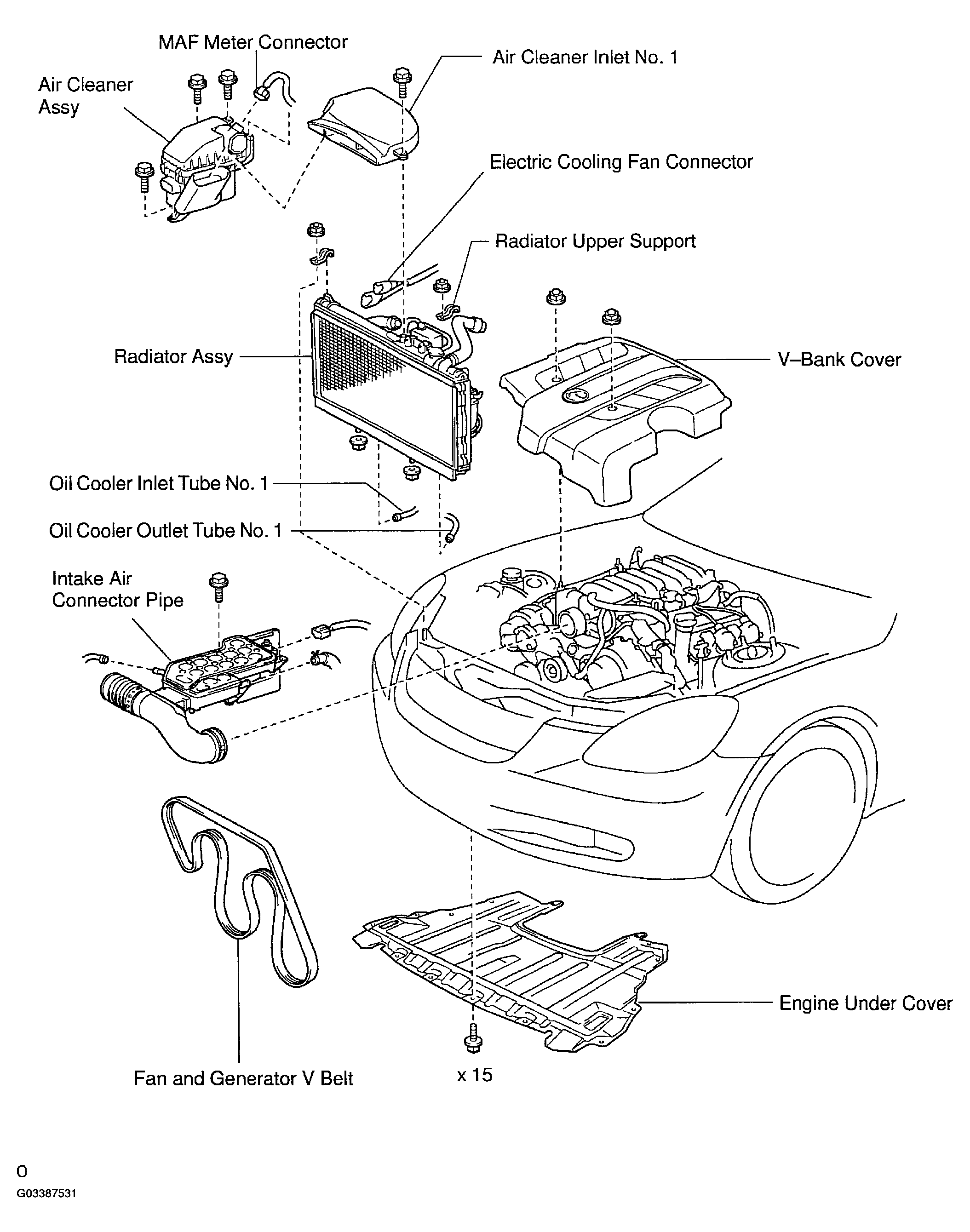

Fig 1: Identifying Components For Timing Belt Removal (1 Of 2)
G03387531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

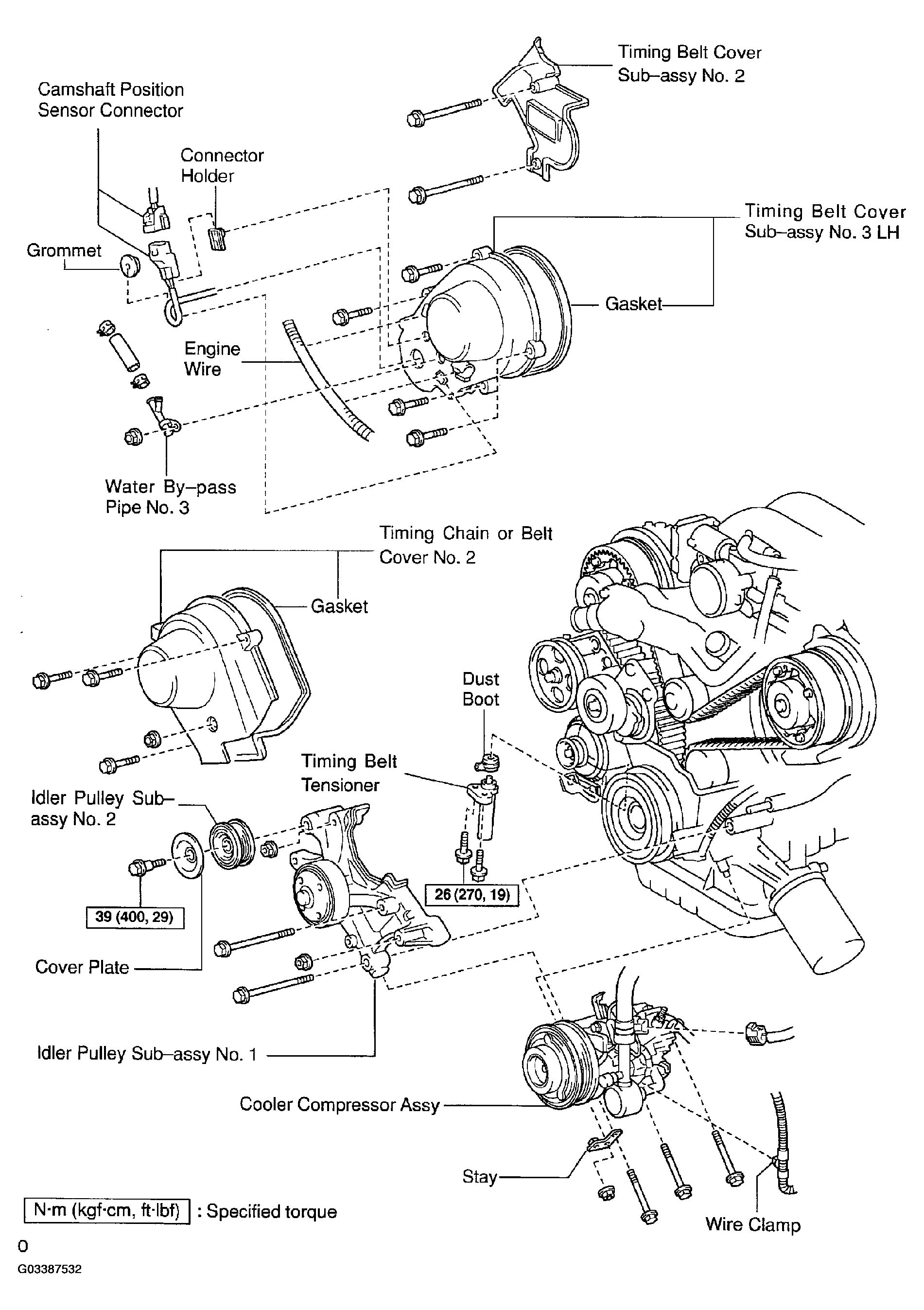

Fig 2: Identifying Components For Timing Belt Removal (2 Of 2)
G03387532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

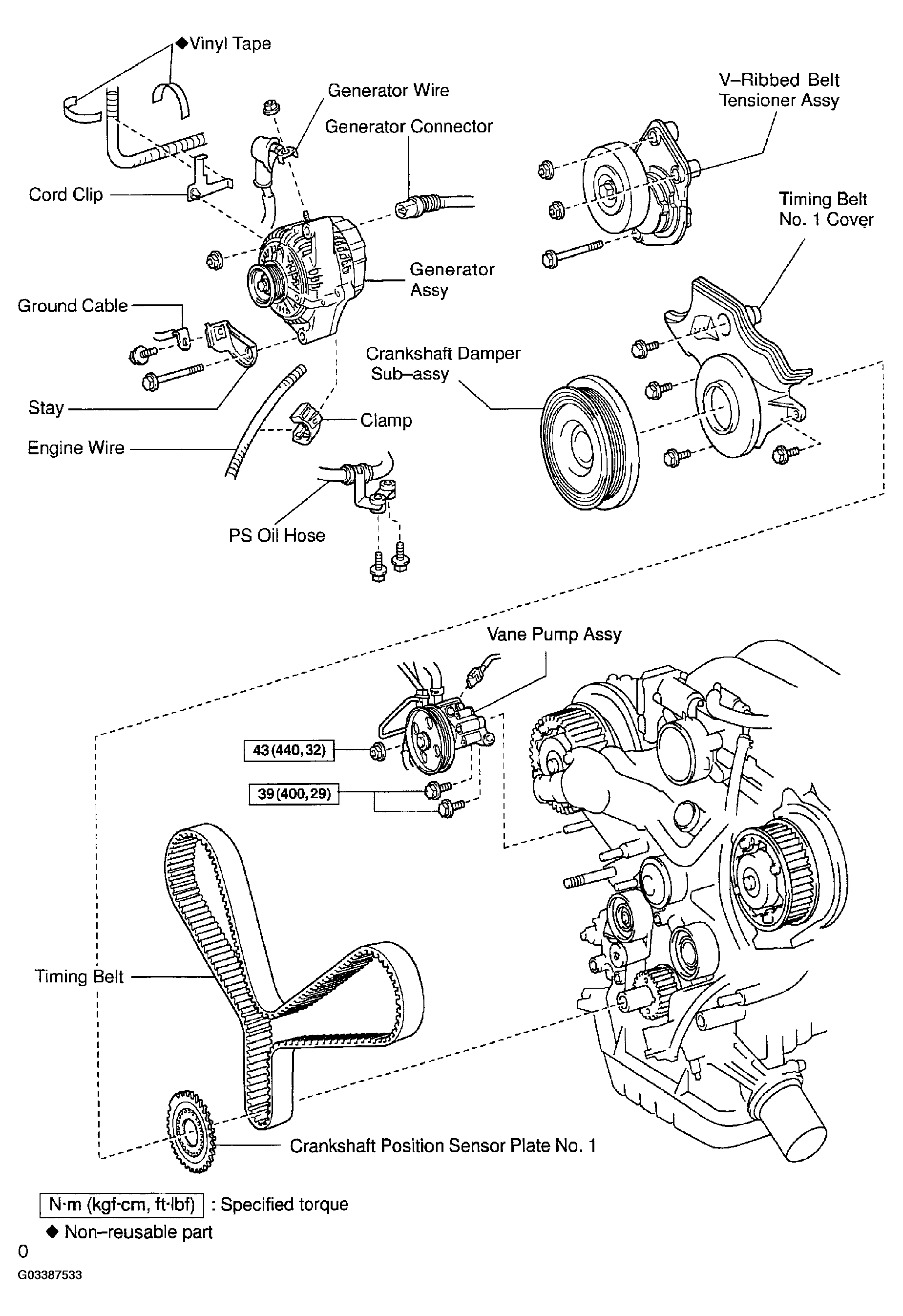

Fig 3: Removing Timing Belt
G03387533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
