Front Speed Sensor: Removal

WARNING: This page is about a different car, the 2003 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE SPEED SENSOR

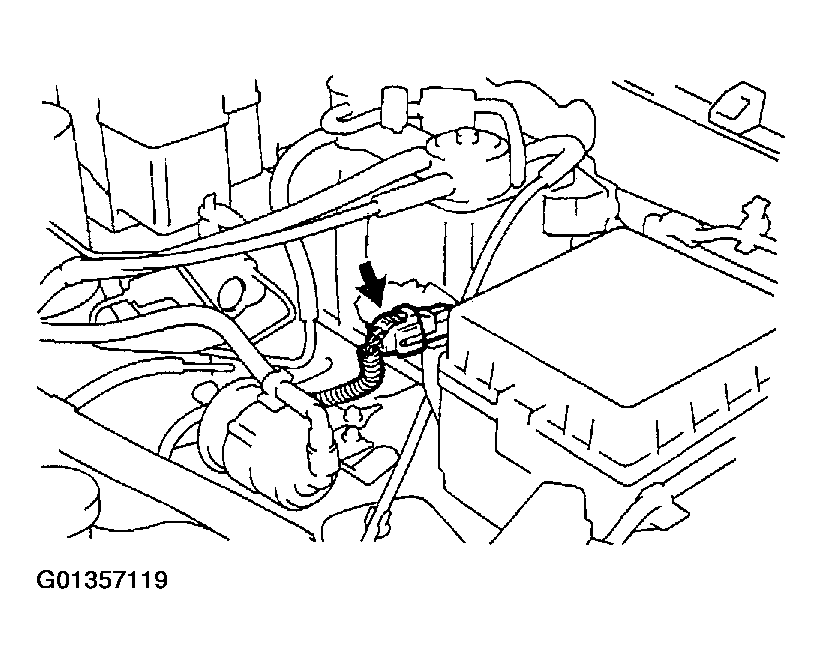

Disconnect the speed sensor connector.
Remove the resin clip and 4 clamp bolts holding the sensor harness from the steering knuckle and upper arm.
Torque: 13 N.m (130 kgf.cm, 9 ft.lbf)

Fig 1: Removing Resin Clip & Clamp Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove the speed sensor installation bolt and speed sensor from the steering knuckle.
Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

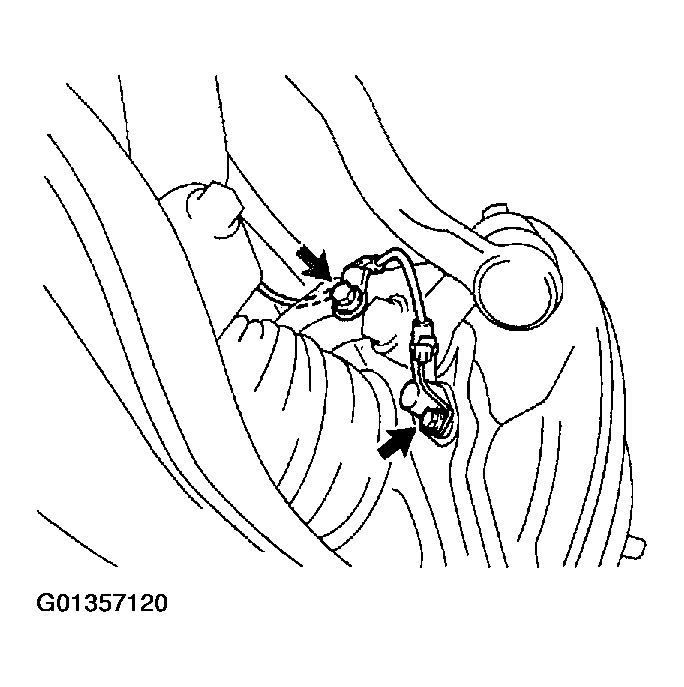

Fig 2: Removing Speed Sensor Installations Bolt & Speed Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
