Problem Symptoms Table

If a normal system code is displayed during the DTC check but the problem still occurs, check the circuits for each problem symptom in the order given in the figure Fig 1 below and proceed to the relevant troubleshooting ?

HINT:

Inspect the fuse and relay before confirming the suspected area in the figure Fig 1 below.

Inspect each malfunction circuit in numerical order for the corresponding symptom.

If the malfunction still exists even after checking and confirming that all the circuits are normal, replace the ECU.

1. HEADLAMP SYSTEM

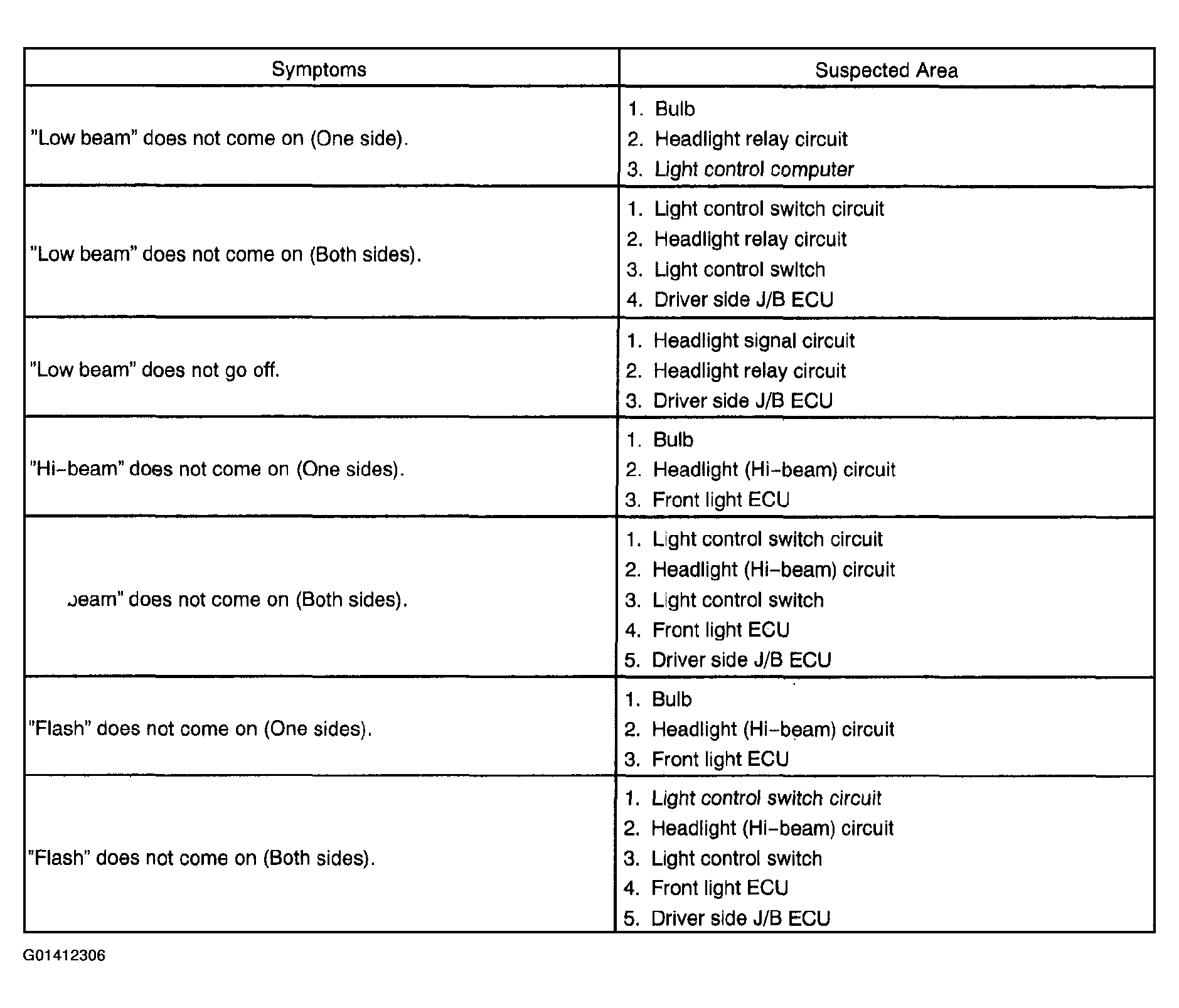

   Fig 1: Headlamp System Symptom Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. TAILLAMP SYSTEM

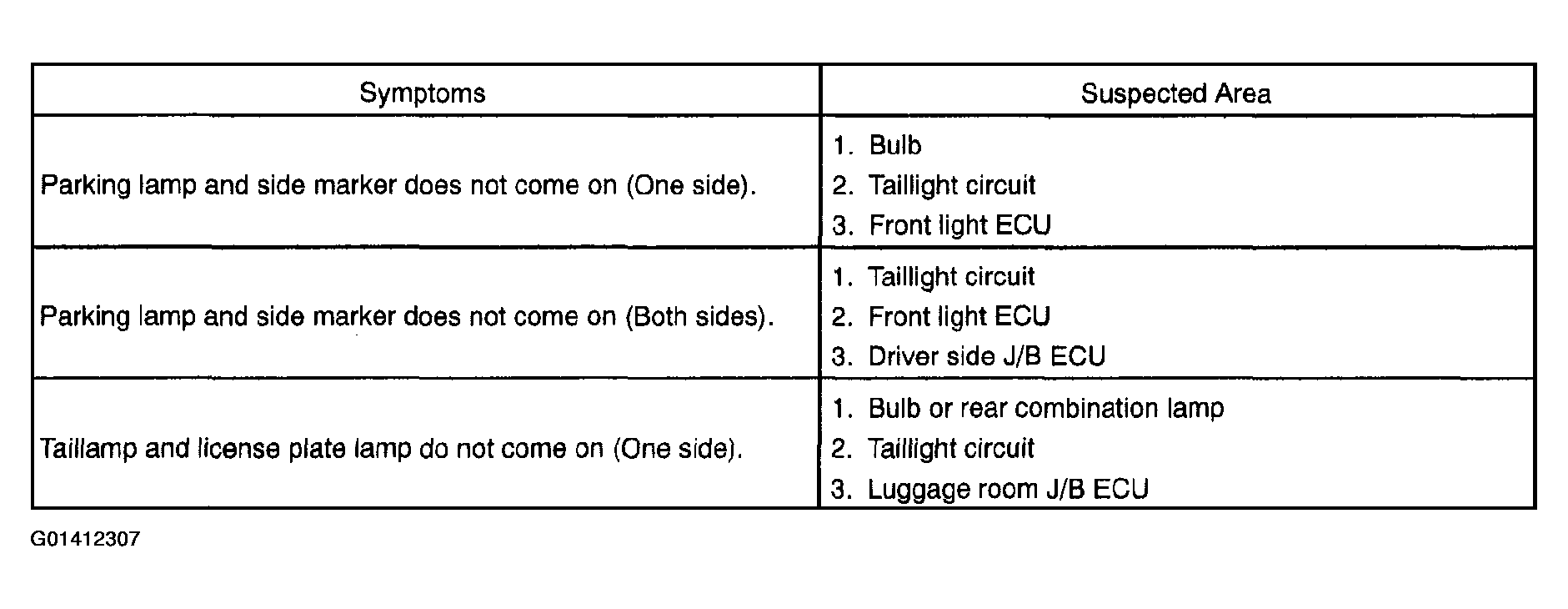

   Fig 2: Tail lamp System Symptom Chart (1 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   Fig 3: Tail lamp System Symptom Chart (2 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. AUTOMATIC LIGHT CONTROL SYSTEM
   Fig 4: Automatic Light Control System Symptom Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. LIGHT AUTO TURN OFF SYSTEM
   Fig 5: Light Auto Turn Off System Symptom Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. FOG LAMP SYSTEM

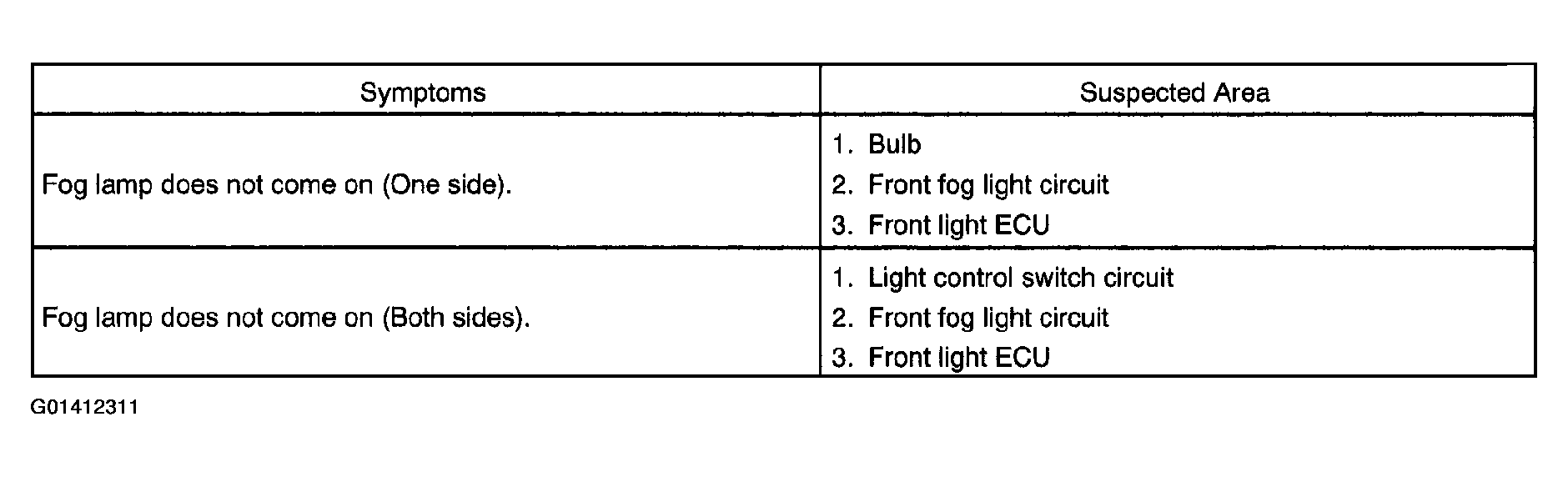

   Fig 6: Fog Lamp System Symptom Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. TURN SIGNAL AND HAZARD WARNING SYSTEM

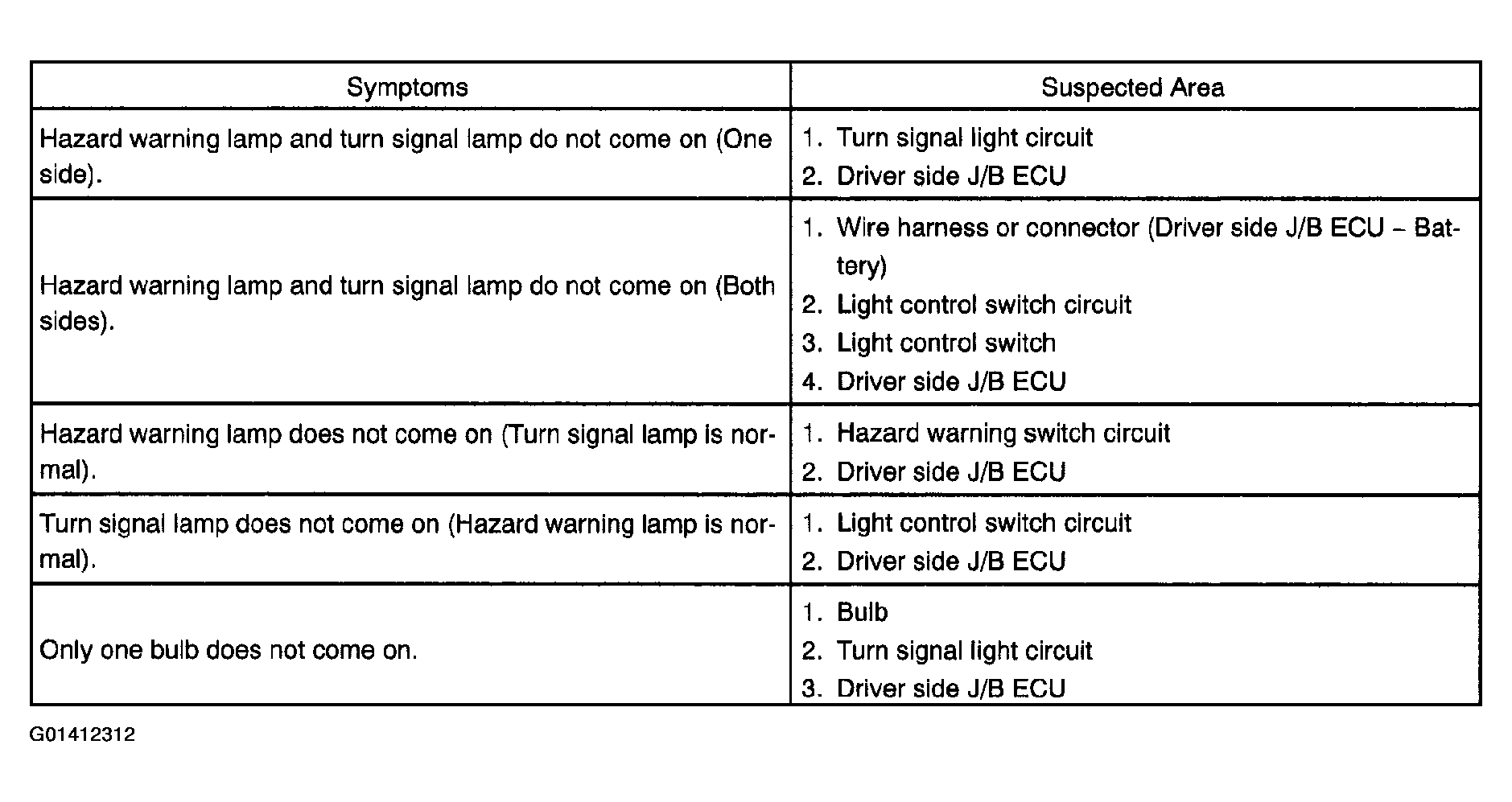

   Fig 7: Turn Signal And Hazard Warning System Symptom Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. STOP LAMP SYSTEM

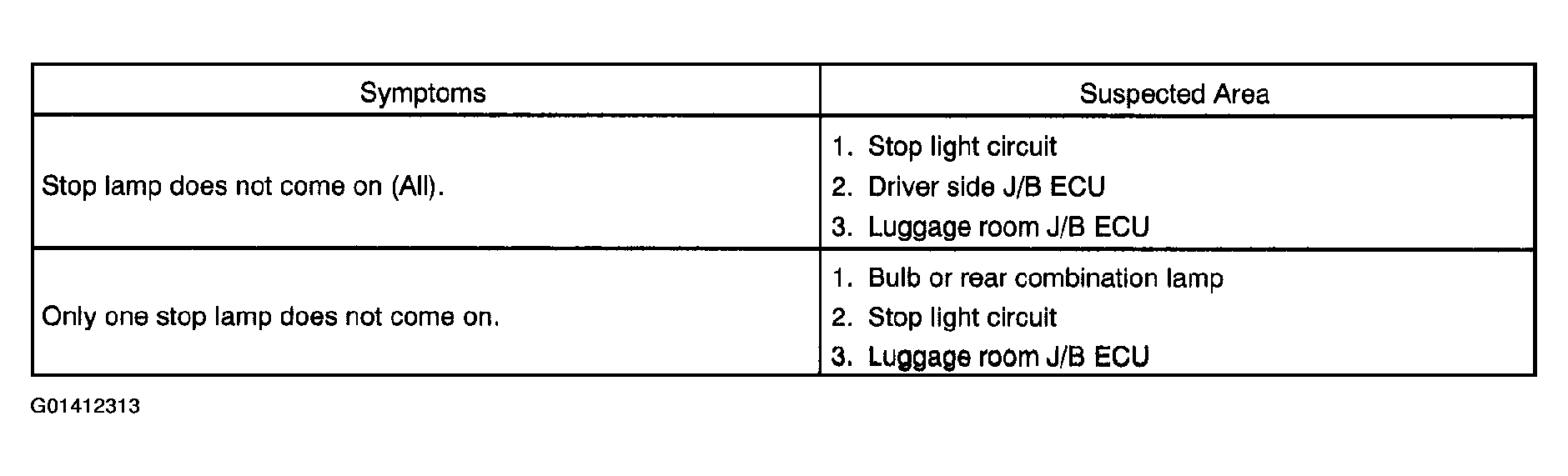

   Fig 8: Stop Lamp System Symptom Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. BACK UP LAMP SYSTEM

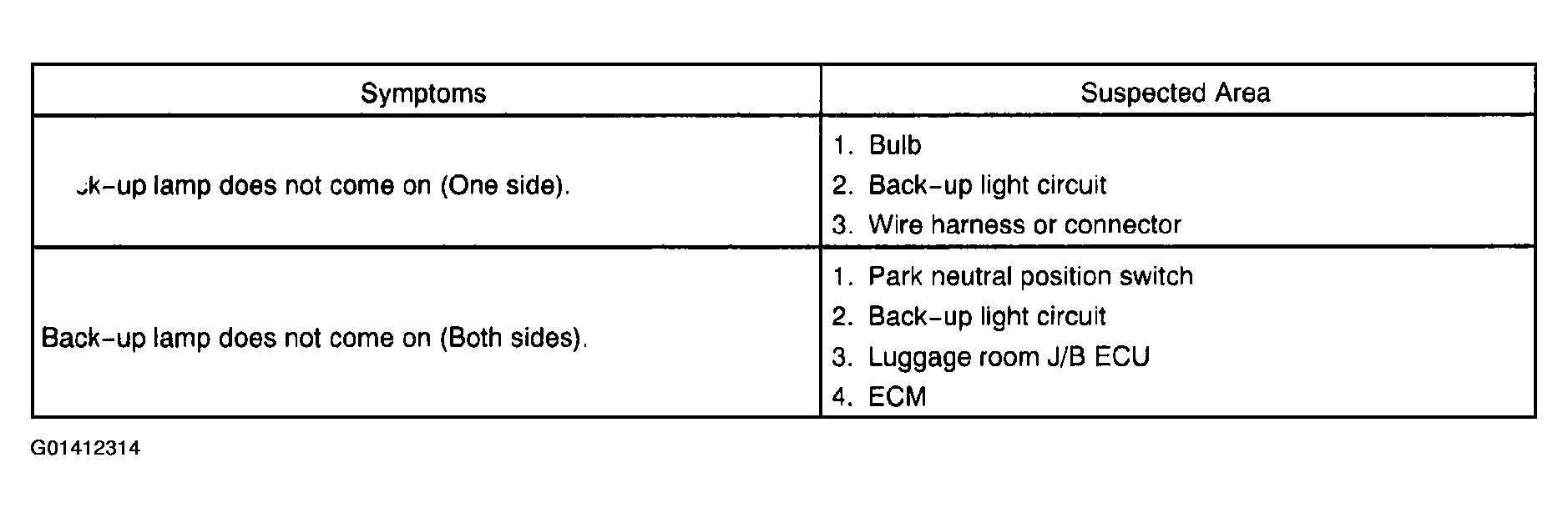

   Fig 9: Back-Up Lamp System Symptom Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. ILLUMINATED ENTRY SYSTEM

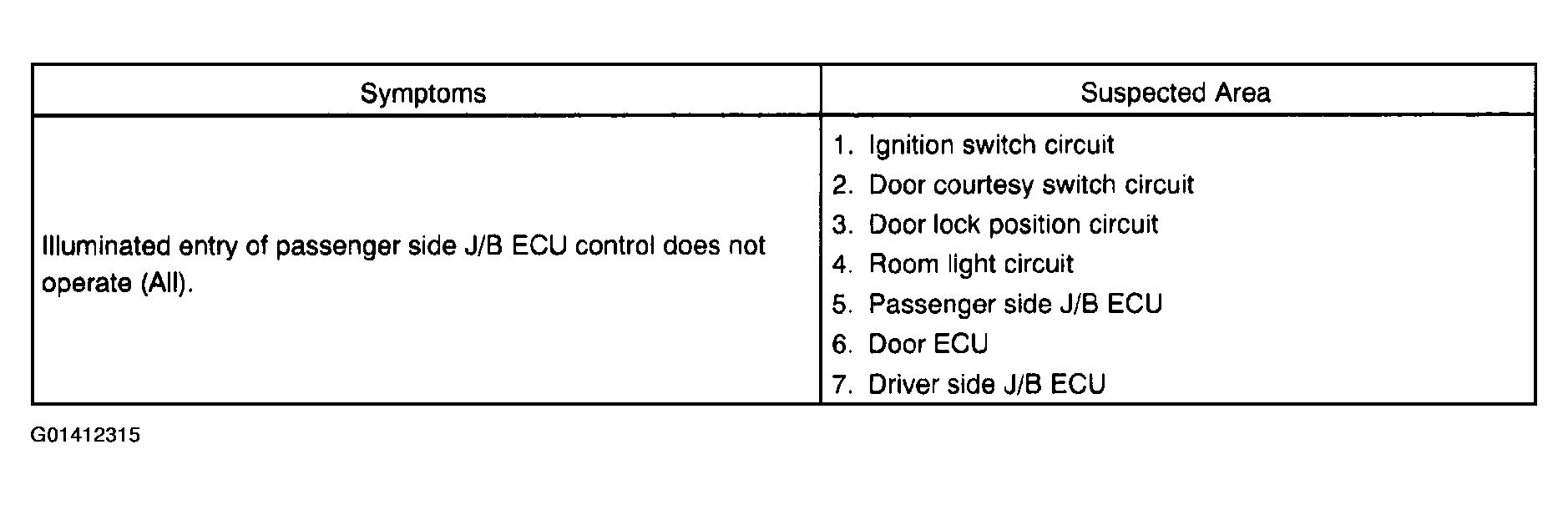

   Fig 10: Illuminated Entry System Symptom Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. STEP ILLUMINATION SYSTEM

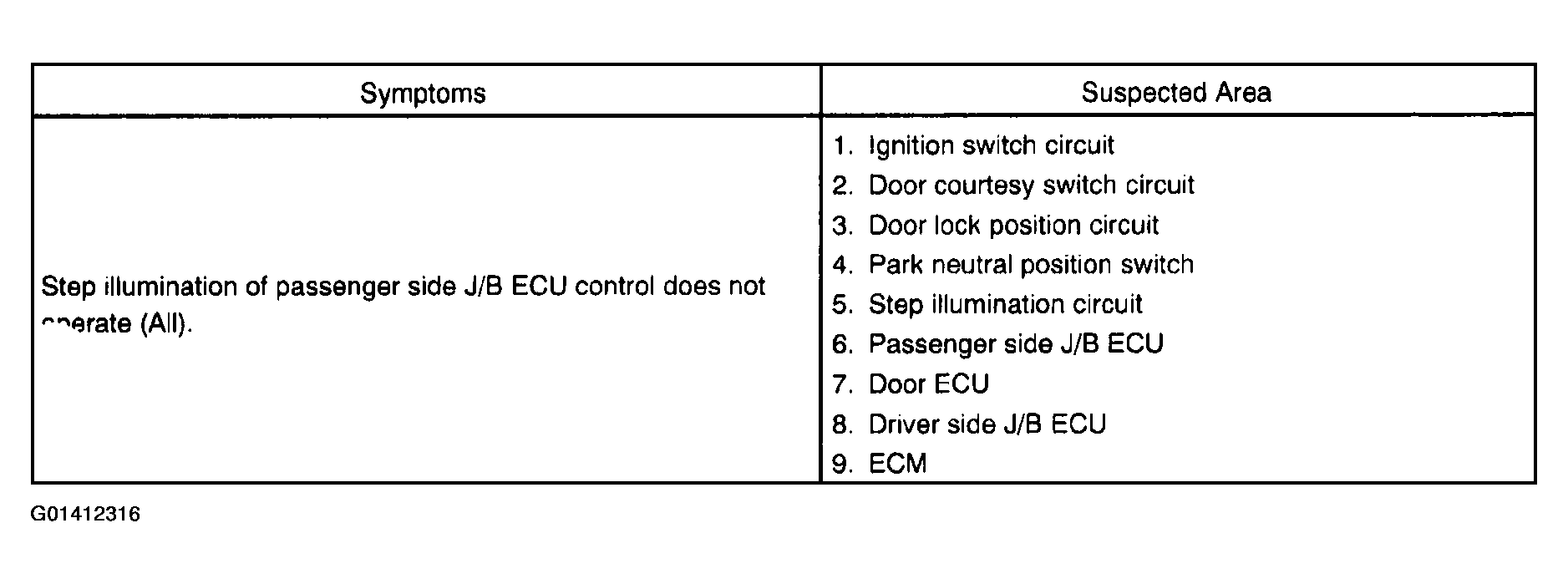

    Fig 11: Step Illumination System Symptom Chart

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
11. BUCKLE ILLUMINATION SYSTEM
    Fig 12: Buckle Illumination System Symptom Chart

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
12. INSTRUMENT PANEL ILLUMINATION SYSTEM
    Fig 13: Instrument Panel Illumination System Symptom Chart

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
13. LUGGAGE ROOM LIGHT SYSTEM
    Fig 14: Luggage Room Light System Symptom Chart

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
14. AFS

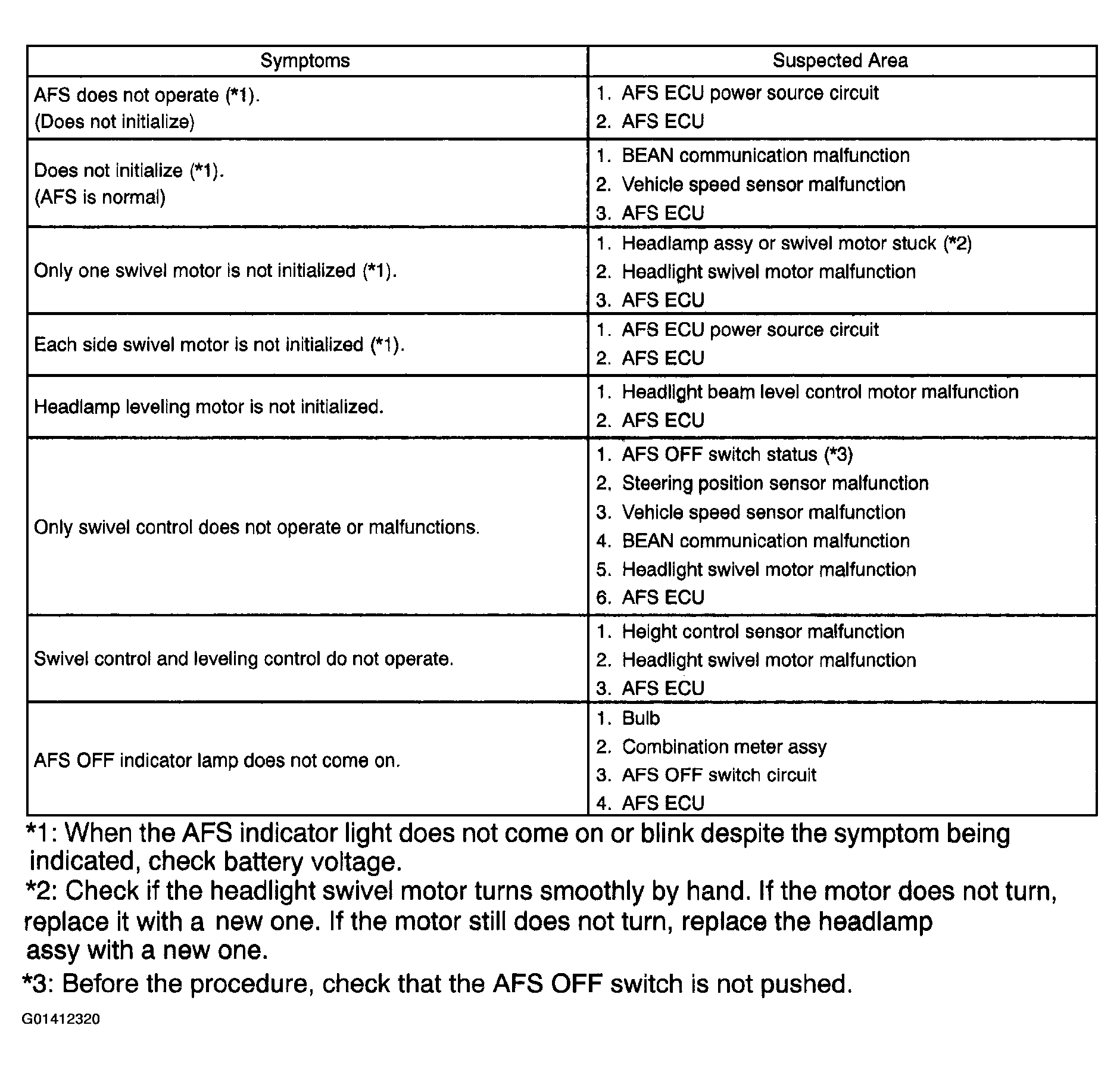

    Fig 15: AFS System Symptom Chart

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
15. OTHERS

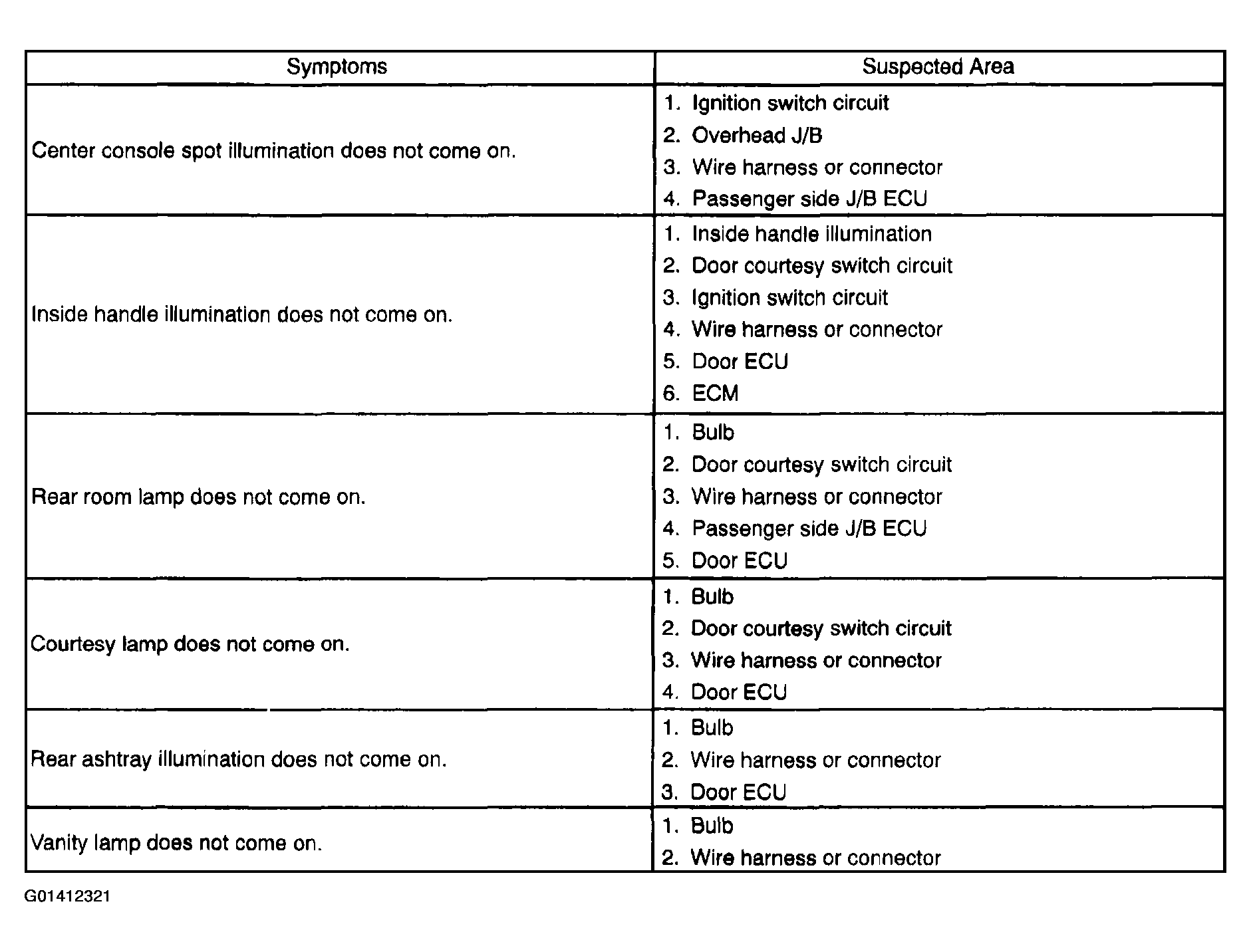

    Fig 16: Others System Symptom Chart

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
