Section 249 (Smart Key System - Diagnosis): Location
WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

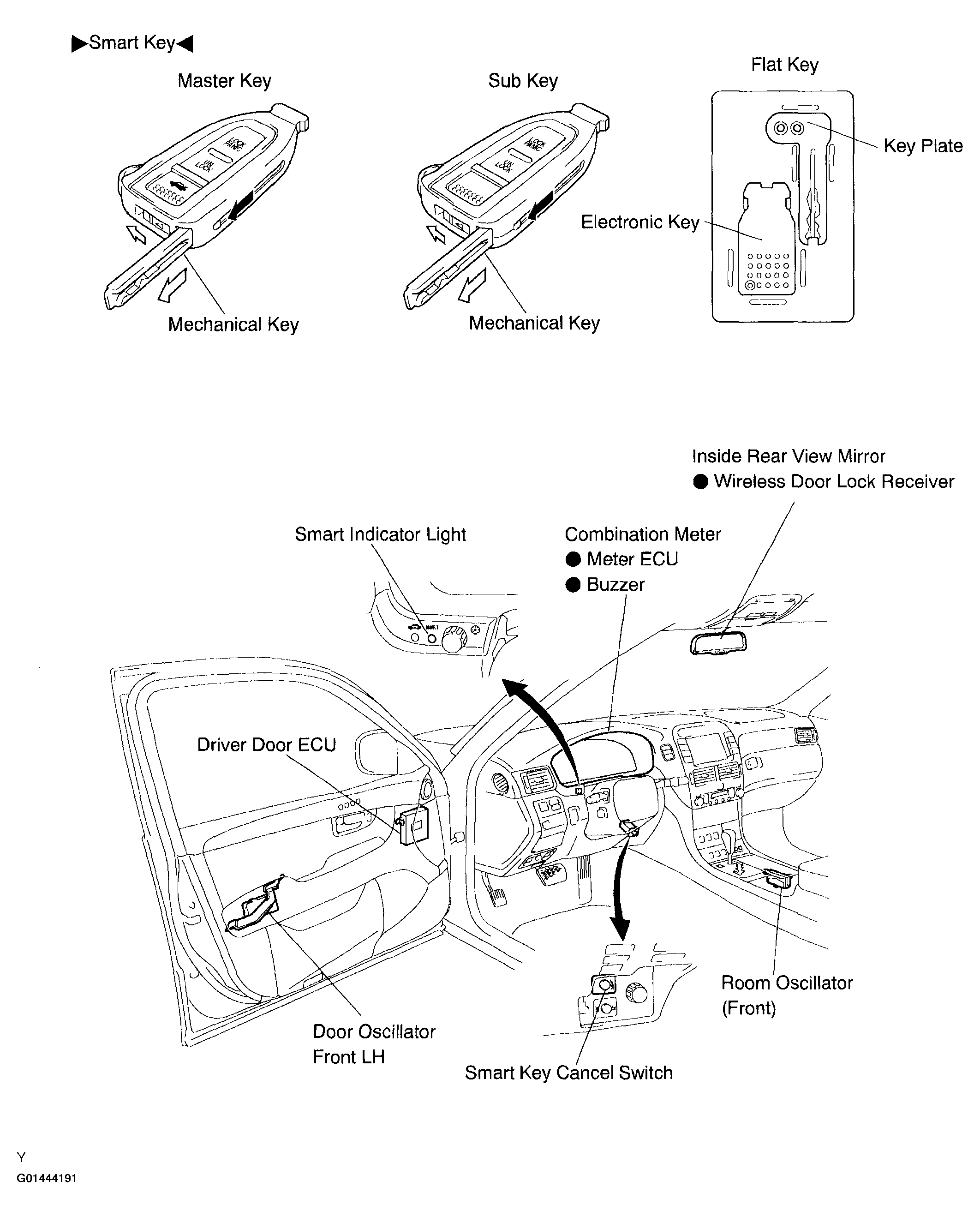

Fig 1: Locating Smart Key System Components (1 Of 2)
