Section 298 (LEXUS Navigation System - Diagnosis): Location

WARNING: This page is about a different car, the 2004 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

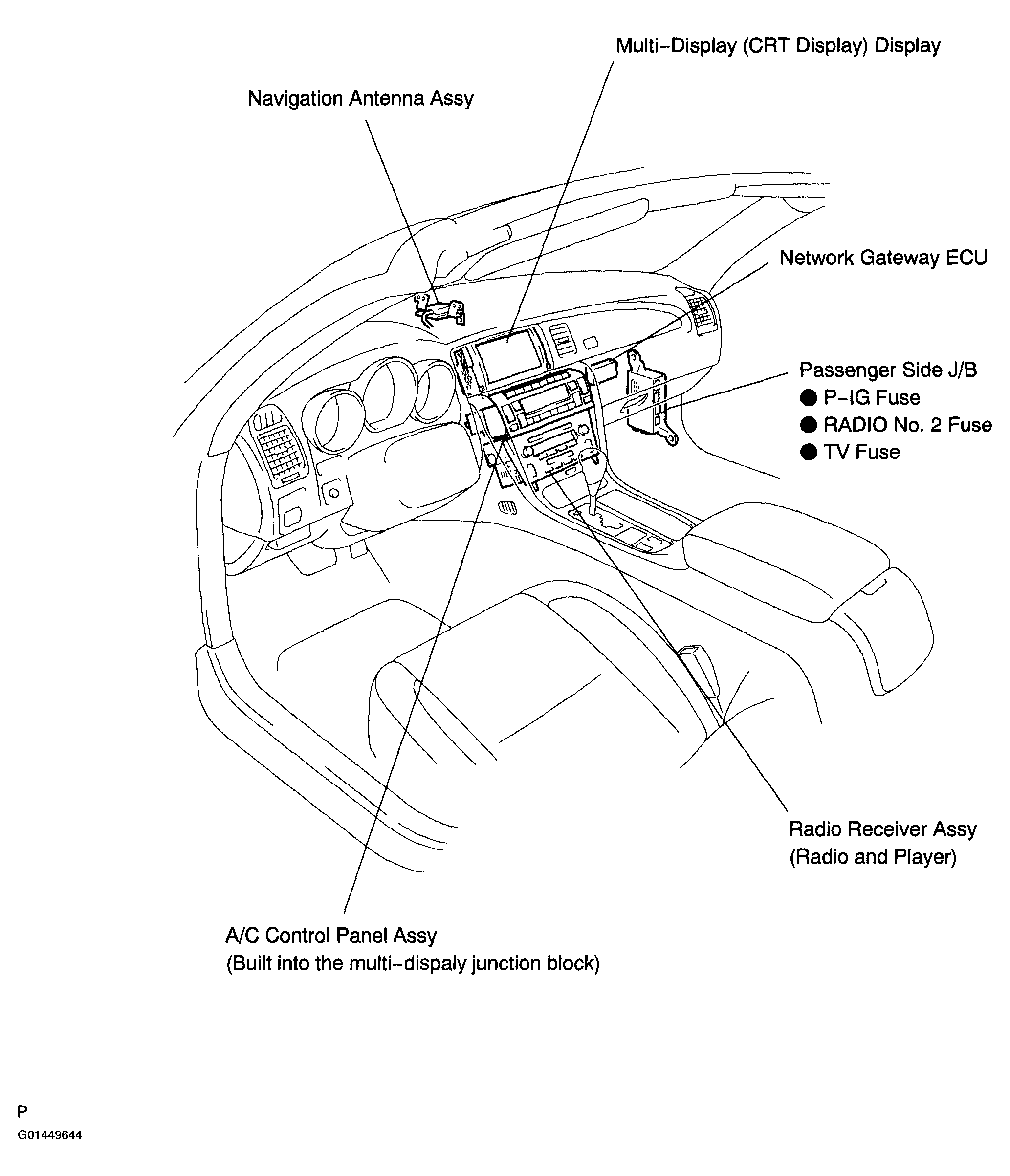

Fig 1: Identifying Lexus Navigation System Components (1 Of 2)
G01449644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

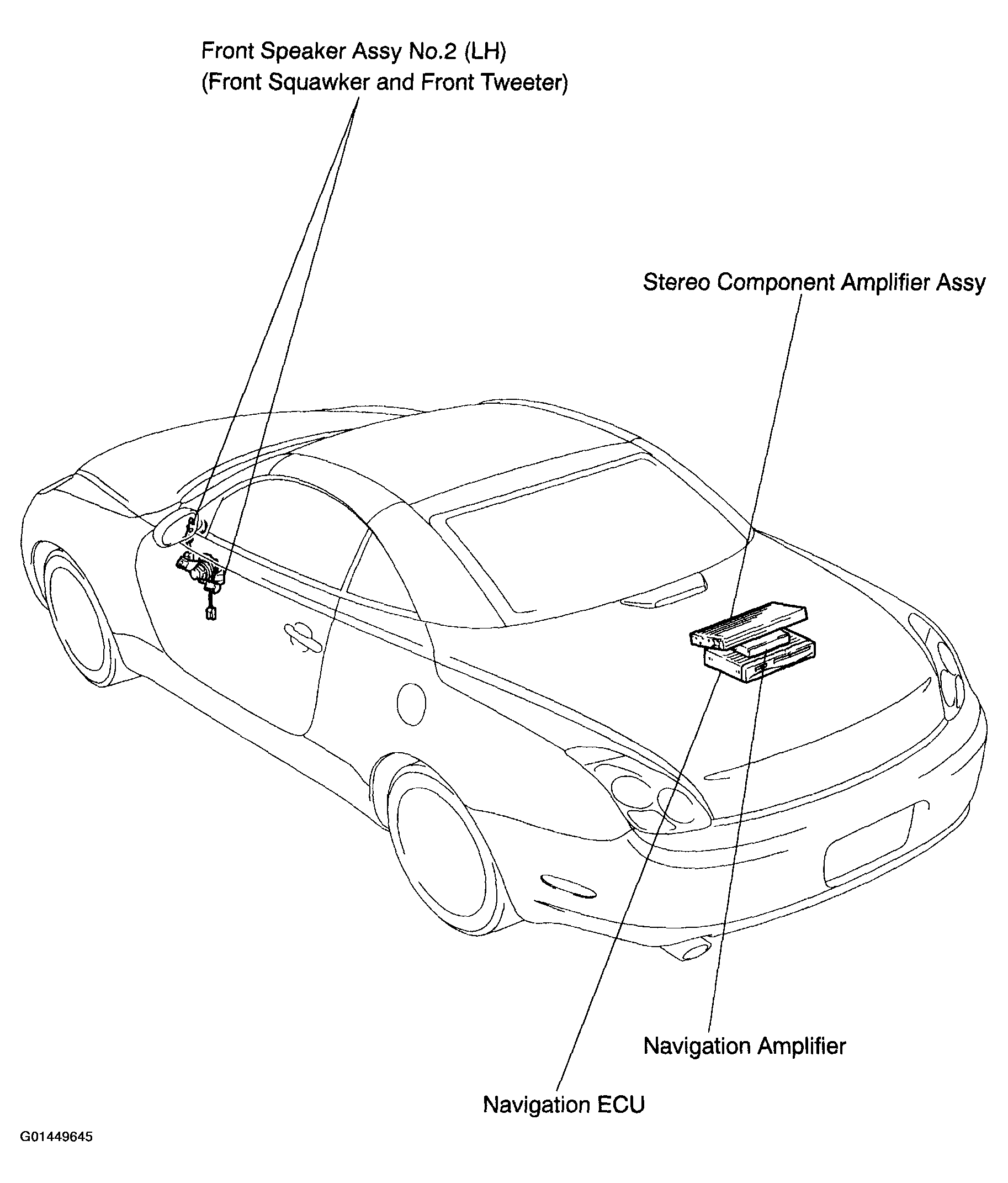

Fig 2: Identifying Lexus Navigation System Components (2 Of 2)
G01449645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
