Terminals Of Ecu
WARNING: This page is about a different car, the 2003 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.
Multi-display:

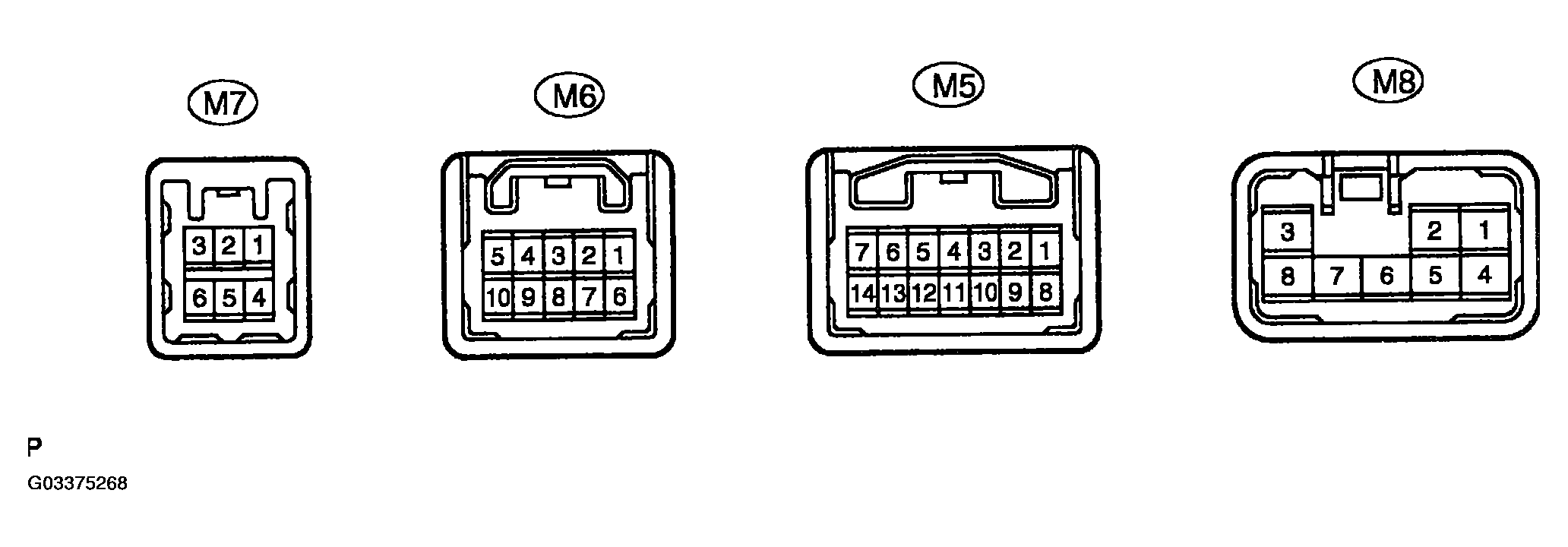

ECU CONNECTOR REFERENCE CHART
| Symbols (Terminals No.) | Wiring Color | Condition | STD Voltage (V) |
|---|---|---|---|
| M8-1 - M8-6 (+B1 - GND1) | L-W - W-B | Always | 10 - 14 V |
| M8-2 - M8-6 (IG - GND1) | B-W - W-B | Ignition switch OFF or ACC | Below 1 V |
| Ignition switch ON | 10 - 14 V | ||
| M8-4 - M8-6 (ACC - GND1) | GR - W-B | Ignition switch OFF | Below 1 V |
| Ignition switch ACC or ON | 10 - 14 V | ||
| M8-6 - Body ground (GND1 - Body ground) | W-B - Body ground | Always | Below 1 V |
| M5-3 (TX+) | P | See "Service Check Mode" under PRE-CHECK | - |
| M5-4 (TX3+) | P-L | See "Service Check Mode" under PRE-CHECK | - |
| M5-5 - M8-6 (SPD - GND1) | V - W-B | See "Vehicle Signal Check Mode" | - |
| M5-7 - M8-6 (LP - GND1) | G-R - W-B | Security indicator OFF | Below 1 V |
| Security indicator ON | 10 - 14 V | ||
| M5-10 (TX-) | L | See "Service Check Mode" under PRE-CHECK | - |
| M5-11 (TX3-) | P-B | See "Service Check Mode" under PRE-CHECK | - |
| M5-13 - M8-6 (PKB - GND1) | R-W - W-B | See "Vehicle Signal Check Mode" | - |
| M5-14 - M8-6 (TC - GND1) | P-W - W-B | Ignition switch OFF and connect terminals TC and CG of DLC3. | Below 1 V |
| M6-1 - M6-6 (VR - VG) | L - Shielded | Ignition switch OFF | Below 1 V |
| M6-2 - M6-6 (R - VG) | LG - Shielded | Navigation map is switched | Pulse generation *1 |
| M6-3 - M6-6 (B - VG) | R - Shielded | Navigation map is switched | Pulse generation *2 |
| M6-6 - M8-6 (VG - GND1) | Shielded - W-B | Ignition switch OFF | Below 1 V |
| M6-7 - M6-6 (G - VG) | W-Shielded | Navigation map is switched | Pulse generation |
| M6-8 - M6-6 (SYNC - VG) | G - Shielded | Navigation display is displayed | Pulse generation *1 |
| M7-3 - M8-6 (NTSC - GND1) | R - W-B | Ignition switch ON and DVD displayed | Pulse generation *3 |
| M7-5 - M8-6 (SG - GND1) | Shielded - W-B | Ignition switch OFF | Below 1 V |
| M7-6 - M8-6 (SGD1 - GND1) | R-W - W-B | Ignition switch OFF | Below 1 V |
ECU CONNECTOR REFERENCE CHART
| Terminal No. (Symbols) | Problem symptom when open circuit is detected. | Problem symptom when short circuit is detected. |
|---|---|---|
| M8-1 - M8-6 (+B1 - GND1) | Navigation system does not operate. | Navigation system does not operate. |
| M8-2 - M8-6 (IG - GND1) | Navigation system does not operate. | Navigation system does not operate. |
| M8-4 - M8-6 (ACC - GND1) | Navigation system does not operate. | Navigation system does not operate. |
| M8-6 - Body ground (GND1 - Body ground) | Navigation system does not operate. | Navigation system is normal. |
| M5-3 (TX+) | Screen is in disorder. | Screen is in disorder. |
| M5-4 (TX3+) | DVD screen is in disorder. | DVD screen is in disorder. |
| M5-5 - M8-6 (SPD - GND1) | All switch operation is available during driving. | All switch operation is available during driving. |
| M5-7 - M8-6 (PBEW - GND1) | Passenger seat belt warning does not come on. | Passenger seat belt warning remains lit. |
| M5-10 (TX-) | Screen is in disorder. | Screen is in disorder. |
| M5-11 (TX3-) | DVD screen is in disorder. | DVD screen is in disorder. |
| M5-13 - M8-6 (PKB - GND1) | The system cannot enter diagnosis system mode. | Navigation system is normal. |
| M5-14 - M8-6 (TC-GND1) | Navigation system is normal. | The system cannot exit service check mode. |
| M6-1 - M6-6 (VR - VG) | Screen noise or other types of noise occur. | Screen noise or other types of noise occur. |
| M6-2 - M6-6 (R - VG) | Screen color turns to blue. | Screen color turns to blue. |
| M6-3 - M6-6 (B - VG) | Screen color turns to yellow. | Screen color turns to yellow. |
| M6-6 - M8-6 (VG - GND1) | Screen noise or other types of noise occur. | Navigation system is normal. |
| M6-7 - M6-6 (G - VG) | Screen color turns to red-purple. | Screen color turns to red-purple. |
| M6-8 - M6-6 (SYNC - VG) | Synchronous pulse fluctuates rapidly in map screen. | Synchronous pulse fluctuates slowly in map screen. |
| M7-3 - M8-6 (NTSC - GND1) | DVD screen is in disorder. | DVD screen is in disorder. |
| M7-5 - M8-6 (SG - GND1) | Screen noise or other types of noise occur. | Screen noise or other types of noise occur. |
| M7-6 - M8-6 (SGD1 - GND1) | Screen noise or other types of noise occur. | Screen noise or other types of noise occur. |

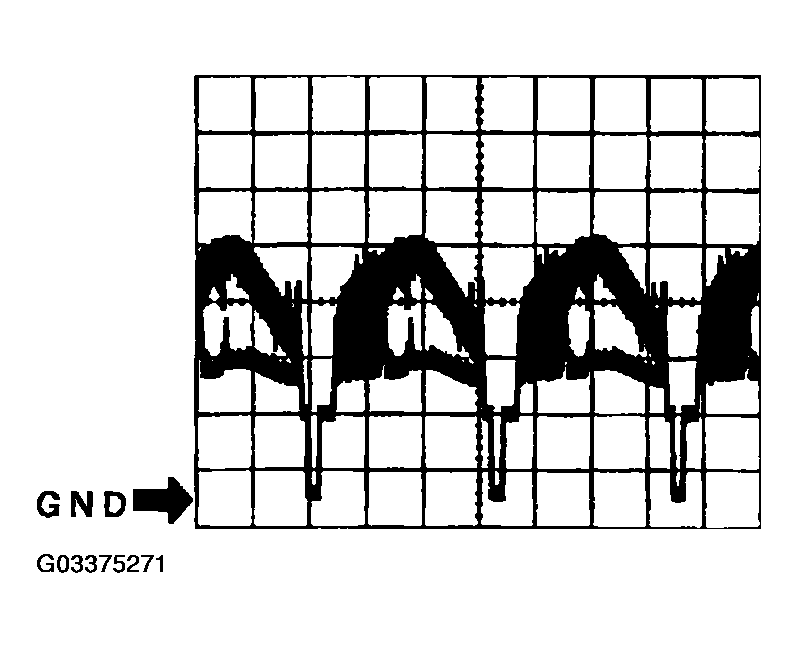

- *1: Oscilloscope wave
Terminal to be measured: SYNC - GND1
Setting for measurement: 500 mV/DIV10 MUEs/DIV
Condition: Navigation display is displayed.

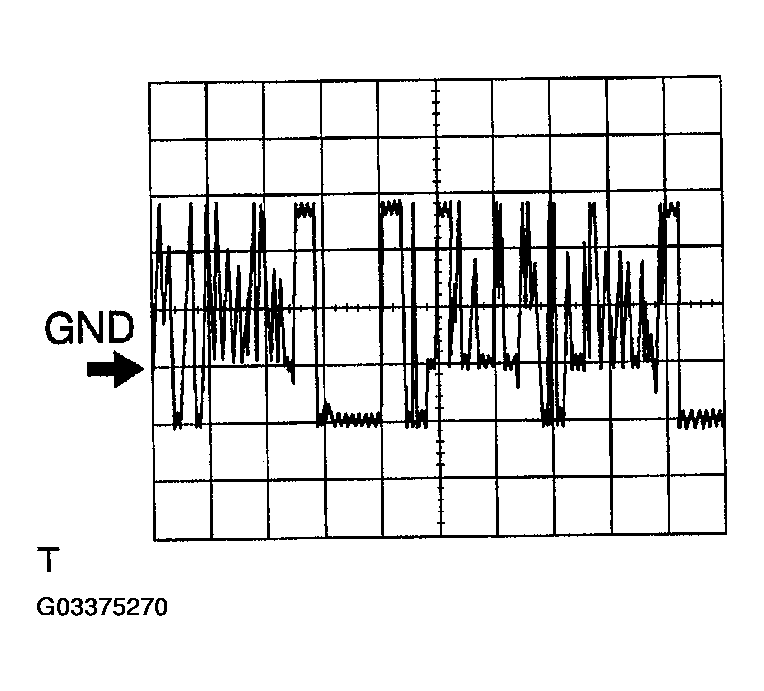

- *2: Oscilloscope wave
Terminal to be measured: R, G, B - GND1
Setting for measurement: 200 mV/DIV10 MUEs/DIV
Condition: Navigation map is switched.
- *3 Oscilloscope wave
Terminal to be measured: NTSC - SGD1
Setting for measurement: 0.2 mV/DIV, 0.2 MUEs/DIV
Condition: Ignition switch ON and DVD displayed.

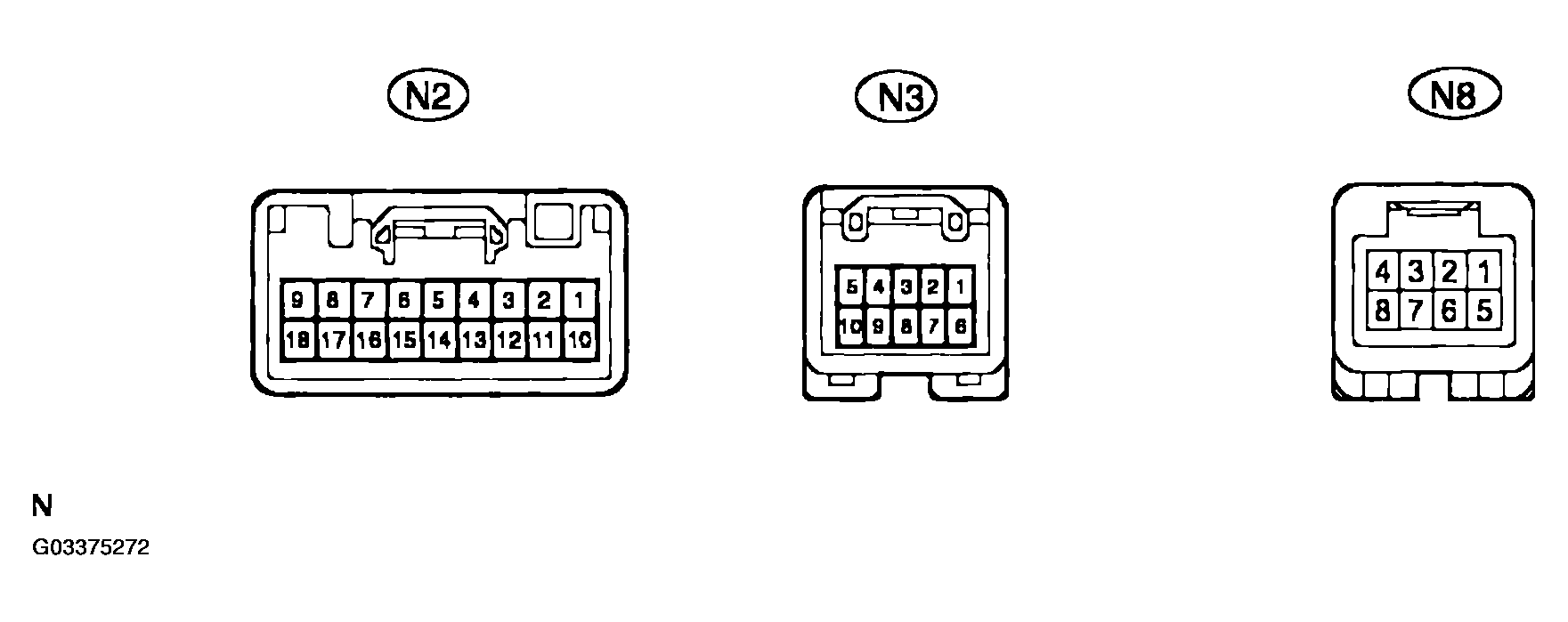

Navigation ECU
ECU CONNECTOR REFERENCE CHART
| Symbols (Terminals No.) | Wiring Color | Condition | STD Voltage (V) |
|---|---|---|---|
| N2-1 - N2-17 (AUI+ - GND) | P - W-B | Audio system is sounding | A waveform synchronized with sounds is output |
| N2-2 (AUO+) | P | Sound quality test | - |
| N2-5 - N2-17 (SPD - GND) | Y-R - W-B | See "Vehicle Signal Check Mode" | - |
| N2-9 - N2-17 (+B - GND) | L-Y - W-B | Always | 10 - 14 V |
| N2-10 - N2-17 (AUI--GND) | V | Audio system is sounding | A waveform synchronized with sounds is output |
| N2-11 (AUO-) | V | Sound quality test | - |
| N2-14 (REV) | R-B | See "Vehicle Signal Check Mode" | - |
| N2-15 - N2-17 (MUTE - GND) | G-R - W-B | Navigation voice sounding | Below 1 V |
| N2-17 - Body ground (GND - Body ground) | W-B - Body ground | Always | Below 1 V |
| N2-18 - N2-17 (ACC - GND) | GR - W-B | Ignition switch OFF | Below 1 V |
| Ignition switch ACC or ON | 10 - 14 V | ||
| N3-1 - N3-6 (VR - VG) | Y - Shielded | Ignition switch OFF | Below 1 V |
| N3-2 - N3-6 (R - VG) | LG - Shielded | Navigation map is switched | Pulse generation *2 |
| N3-3 - N3-6 (B - VG) | R - Shielded | Navigation map is switched | Pulse generation *2 |
| N3-5 (TX+) | L | See "Service Check Mode" under PRE-CHECK | - |
| N3-6 - N2-17 (VG - GND) | Shielded - W-B | Ignition switch OFF | Below 1 V |
| N3-7 - N3-6 (G - VG) | W - Shielded | Navigation map is switched | Pulse generation *2 |
| N3-8 - N3-6 (SYNC - VG) | G - Shielded | Navigation display is displayed | Pulse generation *1 |
| N3-10 (TX-) | L-B | See "Service Check Mode" under PRE-CHECK | - |
| N8-3 - N2-17 (MIC+ - GND) | Y - W-B | Ignition switch OFF | Below 1 V |
| N8-4 - N2-17 (MACC - GND) | LG - W-B | Ignition switch ACC | 5 V |
| N8-5 - N2-17 (MIC- -GND) | BR - W-B | Ignition switch OFF | Below 1 V |
| N8-6 - N2-17 (SGND - GND) | R - W-B | Ignition switch OFF | Below 1 V |
| N8-7 - N2-17 (SNSE - GND) | W-B - W-B | Ignition switch OFF | Below 1 V |
ECU CONNECTOR REFERENCE CHART
| Terminal No. (Symbols) | Problem symptom when open circuit is detected. | Problem symptom when short circuit is detected. |
|---|---|---|
| N2-1 - N2-17 (AUI+ - GND) | Driver side speaker does not sound. | Driver side speaker does not sound. |
| N2-2 (AUO+) | Navigation voice does not sound. | Navigation voice does not sound. |
| N2-5 - N2-17 (SPD - GND) | Navigation operation is available even when the vehicle is in motion, or a cursor on present site does not move. | Navigation operation is available even when the vehicle is in motion, or a cursor on present site does not move. |
| N2-9 - N2-17 (+B - GND) | Map screen does not appear. | Map screen does not appear. |
| N2-10 - N2-17 (AUI - GND) | Driver side speaker does not sound. | Driver side speaker does not sound. |
| N2-11 (AUO-) | Navigation voice does not sound. | Navigation voice does not sound. |
| N2-14 (REV) | Moving direction of the vehicle is different from that of the cursor. | Moving direction of the vehicle is different from that of the cursor. |
| N2-15 - N2-17 (MUTE - GND) | Noise occurs when navigation phrase is changed. | Speaker does not sound. |
| N2-17 - Body ground (GND - Body ground) | Audio system is normal. | Audio system is normal. |
| N2-18 - N2-17 (ACC-GND) | Navigation system does not operate. | Fuse is blown. |
| N3-1 - N3-6 (VR - VG) | Screen noise or other types of noise occurs. | Screen noise or other types of noise occurs. |
| N3-2 - N3-6 (R - VG) | Screen color turns to blue. | Screen color turns to blue. |
| N3-3 - N3-6 (B - VG) | Screen color turns to yellow. | Screen color turns to yellow. |
| N3-5 (TX+) | Screen is in disorder. | Screen is in disorder. |
| N3-6 - N2-17 (VG - GND) | Screen noise or other types of noise occur. | Navigation sysytem does not operate. |
| N3-7 - N3-6 (G - VG) | Screen color turns to red-purple | Screen color turns to red-purple. |
| N3-8 - N3-6 (SYNC - VG) | Synchronous pulse fluctuates rapidly in map screen. | Synchronous pulse fluctuates slowly in map screen. |
| N8-3 - N2-17 (MIC+ - GND) | Voice from cellular phone cannot be heard. Voice cannot be recognized. | Voice from cellular phone cannot be heard. Voice cannot be recognized. |
| N8-4 - N2-17 (MACC - GND) | Voice from cellular phone cannot be heard. Voice cannot be recognized. | Voice from cellular phone cannot be heard. Voice cannot be recognized. |
| N8-5 - B4-17 (MIC- -GND) | Voice from cellular phone cannot be heard. Voice cannot be recognized. | Voice from cellular phone cannot be heard. Voice cannot be recognized. |
| N8-6 - N2-17 (SGND - GND) | Voice cannot be recognized. | Voice cannot be recognized. |
| N8-7 - N2-17 (SNSE - GND) | Voice cannot be recognized. | Voice cannot be recognized. |
- *1: Oscilloscope wave
Terminal to be measured: SYNC - GND1
Setting for measurement: 500mV/DIV 10 MUEs/DIV
Condition: Navigation display is displayed

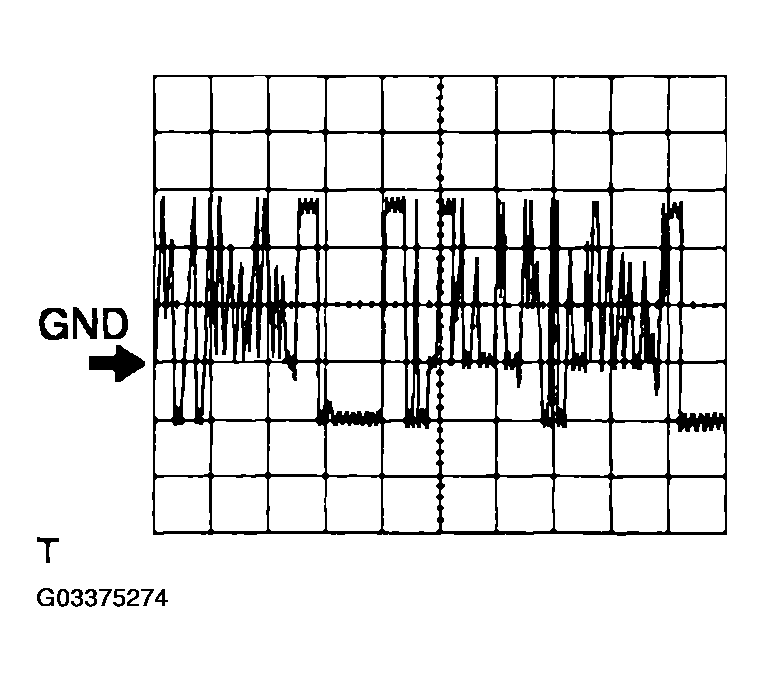

- *2: Oscilloscope wave
Terminal to be measured: R, G, B - GND1
Setting for measurement: 200mV/DIV 10 MUEs/DIV
Condition: Navigation map is switched.

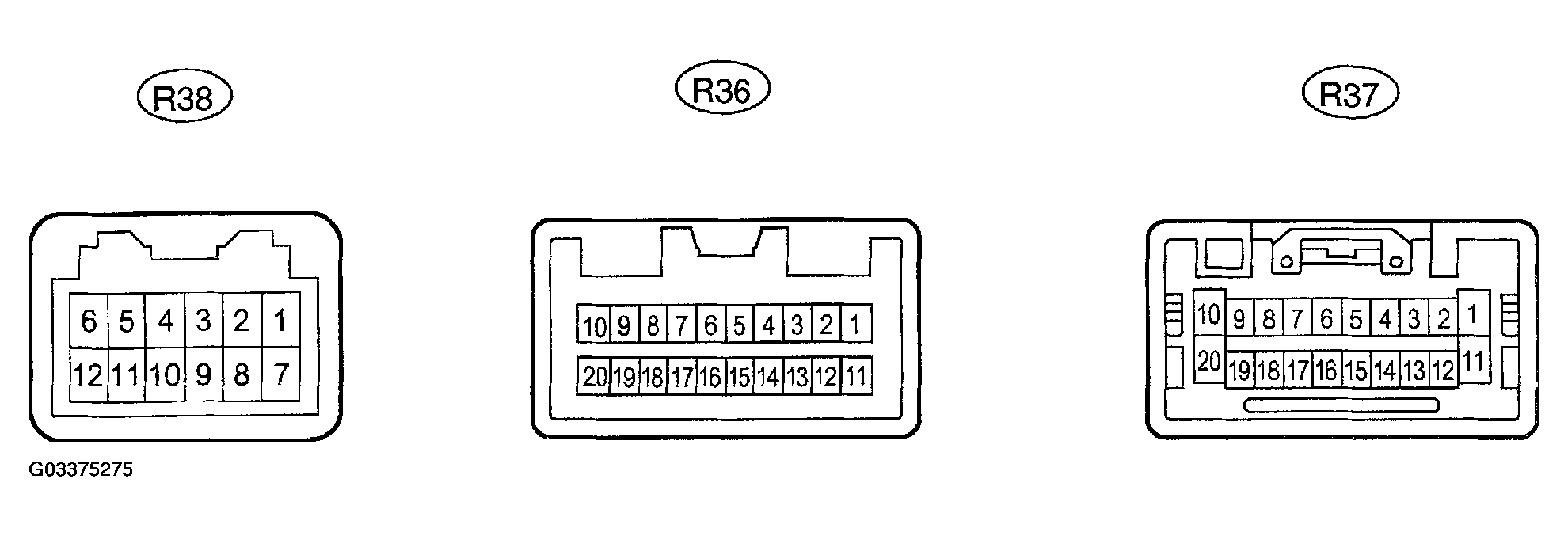

Radio receiver assembly
RADIO RECEIVER ASSEMBLY REFERENCE CHART
| Symbols (Terminal No.) | Condition | STD Voltage (V) | Problem symptom when open circuit is detected. |
| Problem symptoms when short circuit is detected. | |||
| BU <--> GND (R37-1 <--> R37-20) | Always | 10 - 14 V | Audio system does not operate. |
| ILL+ <--> GND (R37-2 <--> R37-20) | Light control switch TAIL | 10 - 14 V | Audio head unit illumination does not come on. |
| TX+ (R37-5) | AVC-LAN Communication circuit | - | Audio system does not operate. |
| MUTE <--> GND (R37-7 <--> R37-20) | - | - | - |
| R+ <--> GND (R37-8 <--> R37-20) | Always | 10 - 14 V | Sound from right speaker is small |
| L+ <--> GND (R37-9 <--> R37-20) | Always | 10 - 14 V | Sound from left speaker is small |
| ACC <--> GND (R37-11 <--> R37-20) | Ignition switch ACC | 10 - 14 V | Audio system does not operate. |
| ILL- <--> GND (R37-12 <--> R37-20) | Light control switch TAIL | Below 0.5 V | Audio head unit illumination does not come on. |
| ANT <--> GND (R37-13 <--> R2-20) | Radio switch ON | 10 - 14 V | Antenna does not extend. |
| TX- (R37-15) | AVC-LAN Communication circuit | - | Audio system does not operate. |
| R- <--> GND (R37-19 <--> R37-20) | Always | 10 - 14 V | Sound from right side speaker is small. |
| L- <--> GND (R37-19 <--> R37-20) | Always | 10 - 14 V | Sound from left side speaker is small. |
| GND <--> Body ground (R37-20 <--> Body ground) | Always | Continuity | Audio system is normal. |
| TX+ (R36-9) | AVC-LAN Communication circuit | - | Navigation system does not operate. |
| TX- (R36-10) | AVC-LAN Communication circuit | - | Navigation system does not operate. |
| R+ (R38-2) | - | - | Sound from right side speaker is small |
| R- (R38-3) | - | - | Sound from right side speaker is small |
| L+ (R38-4) | - | - | Sound from left side speaker is small |
| L- (R38-5) | - | - | Sound from left side speaker is small |
| MUTE (R38-6) | - | - | Pop sound etc. |
| Speaker does not sound | |||
| TX+ (R38-9) | AVC-LAN communication circuit | - | Audio system does not operate. |
| TX- (R38-10) | AVC-LAN communication circuit | - | Audio system does not operate. |

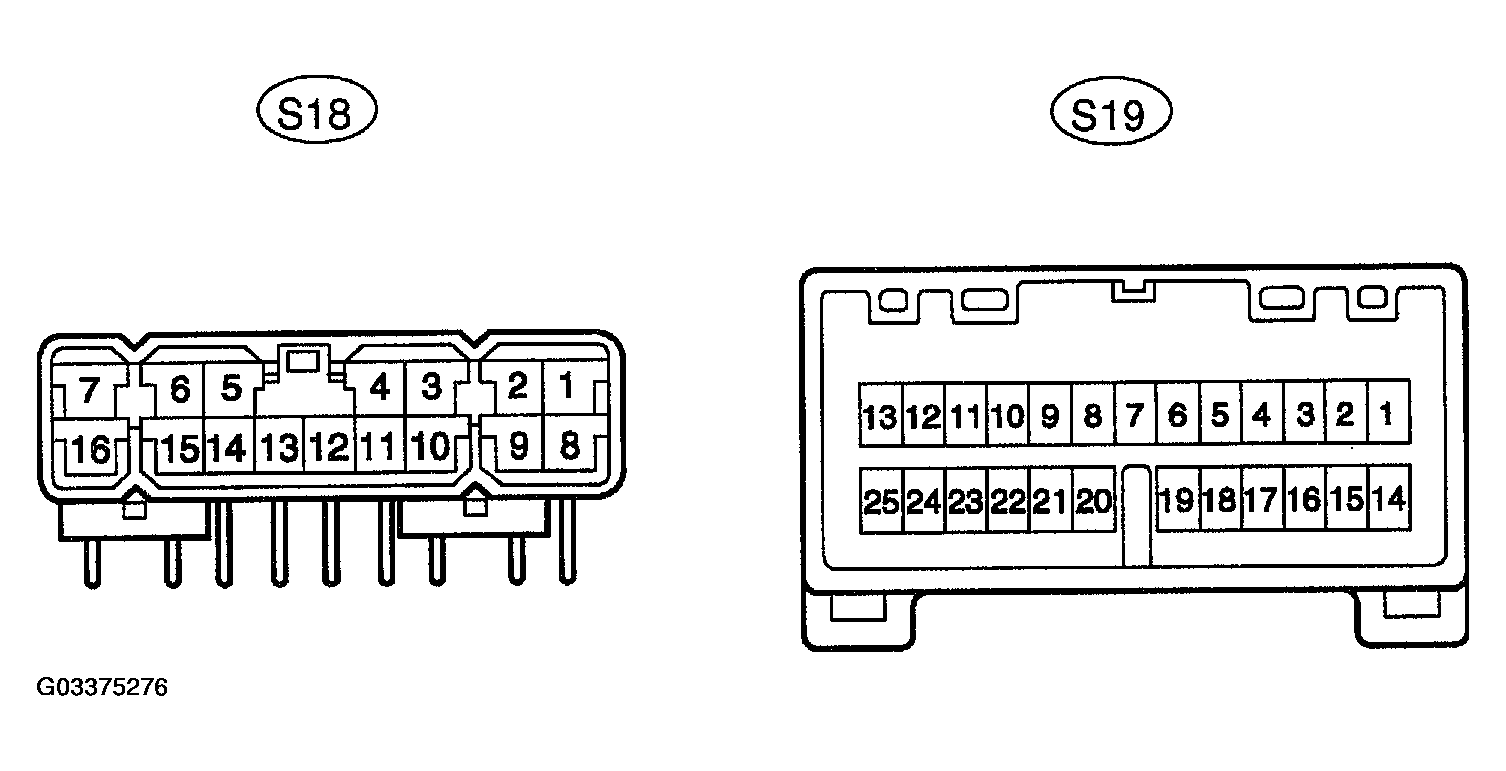

Stereo component amplifier
STEREO COMPONENT AMPLIFIER REFERENCE CHART
| Symbols (Terminal No.) | Condition | STD Voltage (V) | Problem symptom when open circuit is detected. |
|---|---|---|---|
| FR+ <--> E (S18-1 <--> S18-12) | Radio switch ON | 5 - 7 V | RH side speaker does not sound. |
| FL+ <--> E (S18-2 <--> S18-12) | Radio switch ON | 5 - 7 V | LH side speaker does not sound. |
| RR+ <--> E (S18-3 <--> S18-12) | Radio switch ON | 5 - 7 V | Rear RH side speaker does not sound. |
| RL+ <--> E (S18-4 <--> S18-12) | Radio switch ON | 5 - 7 V | Rear LH side speaker does not sound. |
| WFR+ <--> E (S18-5 <--> S18-12) | Radio switch ON | 5 - 7 V | Woofer speaker does not sound. |
| WFL+ <--> E (S18-6 <--> S18-12) | Radio switch ON | 5 - 7 V | Woofer speaker does not sound. |
| +B <--> E (S18-7 <--> S18-12) | Always | 10 - 14 V | All speaker does not sound |
| FR- <--> E (S18-8 <--> S18-12) | Radio switch ON | 5 - 7 V | RH side speaker does not sound. |
| FL- <--> E (S18-9 <--> S18-12) | Radio switch ON | 5 - 7 V | LH side speaker does not sound. |
| RR- <--> E (S18-10 <--> S18-12) | Radio switch ON | 5 - 7 V | Rear RH side speaker does not sound. |
| RL- <--> E (S18-11 <--> S18-12) | Radio switch ON | 5 - 7 V | Rear LH side speaker does not sound. |
| E <--> Body ground (S18-12 <--> Body ground) | Always | Continuity | - |
| GND2 <--> Body ground (S18-13 <--> Body ground) | Always | Continuity | - |
| WFR- <--> E (S18-14 <--> S18-12) | Radio switch ON | 5 - 7 V | Woofer speaker does not sound. |
| WFL- <--> E (S18-15 <--> S18-12) | Radio switch ON | 5 - 7 V | Woofer side speaker does not sound. |
| +B2 <--> GND2 (S18-16 <--> S18-13) | Always | 10 - 14 V | All speaker does not sound |
| MR+ <--> E (S19-1 <--> S18-12) | Always | 5 - 7 V | Sound from front RH speaker is small. |
| ML+ <--> E (S19-2 <--> S18-12) | Always | 5 - 7 V | Sound from front LH speaker is small. |
| TMUT <--> E (S19-3 <--> S18-12) | Radio switch ON | 5 - 7 V | Audio system does not operate. |
| BEEP (S19-4) | - | - | Beep does not sound. |
| TX+ (S19-5) | AVC-LAN communication circuit | - | Audio system does not operate. |
| N-MU <--> E (S19-9 <--> S18-12) | Radio switch ON | 5 - 7 V | Audio system does not operate. |
| R+ <--> E (S19-11 <--> S18-12) | Always | 10 - 14 V | Sound from RH speaker is small. |
| L+ <--> E (S19-12 <--> S18-12) | Always | 10 - 14 V | Sound from LH speaker is small. |
| SPD - E (S19-13 - S18-12) | - | - | - |
| MR- <--> E (S19-14 <--> S18-12) | Always | 5 - 7 V | Sound from front RH speaker is small. |
| ML- <--> E (S19-15 <--> S18-12) | Always | 5 - 7 V | Sound from front LH speaker is small. |
| TX- (S19-18) | AVC-LAN communication circuit | - | Audio system does not operate. |
| ACC <--> E (S19-20 <--> S18-12) | Ignition switch ACC | 10 - 14 V | Audio system does not operate. |
| MUTE <--> E (S19-21 <--> S18-12) | Radio switch ON | 5 - 7 V | Audio system does not operate. |
| SGND <--> E (S19-22 <--> S18-12) | - | - | - |
| R- <--> E (S19-23 <--> S18-12) | Always | 10 - 14 V | Sound from RH speaker is small. |
| L- <--> E (S19-24 <--> S18-12) | Always | 10 - 14 V | Sound from LH speaker is small. |
DVD auto changer:
DVD AUTO CHANGER REFERENCE CHART
| Symbols (Terminal No.) | Condition | STD Voltage (V) | Problem symptom when open circuit is detected. |
|---|---|---|---|
| ACC <--> GND (D32-1 <--> D32-20) | Ignition switch ACC | 10 - 14 V | DVD auto changer does not operate. |
| TXM+ (D32-3) | AVC-LAN communication circuit | - | Audio system does not operate. |
| CDR+ (D32-5) | - | - | Sound from right side speaker is small. |
| CDL+ (D32-6) | - | - | Sound from left side speaker is small. |
| NTSC (D32-9) | - | - | DVD auto changer does not displayed. |
| +B <--> GND (D32-10 <--> D32-20) | Always | 10 - 14 V | DVD auto changer does not operate. |
| MUTE <--> GND (D32-11 <--> D32-20) | DISC switch ON | 5 - 7 V | Pop sound etc. |
| Speaker does not sound | |||
| TXM- (D32-13) | AVC-LAN communication circuit | - | Audio system does not operate. |
| CDR- (D32-15) | - | - | Sound from right side speaker is small. |
| CDL- (D32-16) | - | - | Sound from left side speaker is small. |
Gateway ECU:
GATEWAY ECU CONNECTOR REFERENCE CHART
| Symbols (Terminals No.) | Wiring Color | Condition | STD Voltage (V) |
|---|---|---|---|
| IG <--> GND (G5-2 <--> G5-14 | B-W <--> W-B | Ignition switch ON. | 10 - 14 V |
| MPD1 (G5-4) | B | Communication circuit (Gateway ECU and Center ECU) | - |
| GTX+ (G5-5) | P-L | AVC-LAN communication circuit | - |
| CG <--> Body ground (G5-7 <--> Body ground) | BR <--> Body ground | Always | Continuity |
| BATT <--> GND (G5-8 <--> G5-14) | L-W <--> W-B | Always | 10 - 14 V |
| MPD2 (G5-11) | P-B | Communication circuit (Gateway ECU and Center ECU) | - |
| GTX- (G5-12) | P-B | AVC-LAN communication circuit | - |
| GND <--> Body ground (G5-14 <--> Body ground) | W-B <--> Body ground | Always | Continuity |
