System Diagram: Notes

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

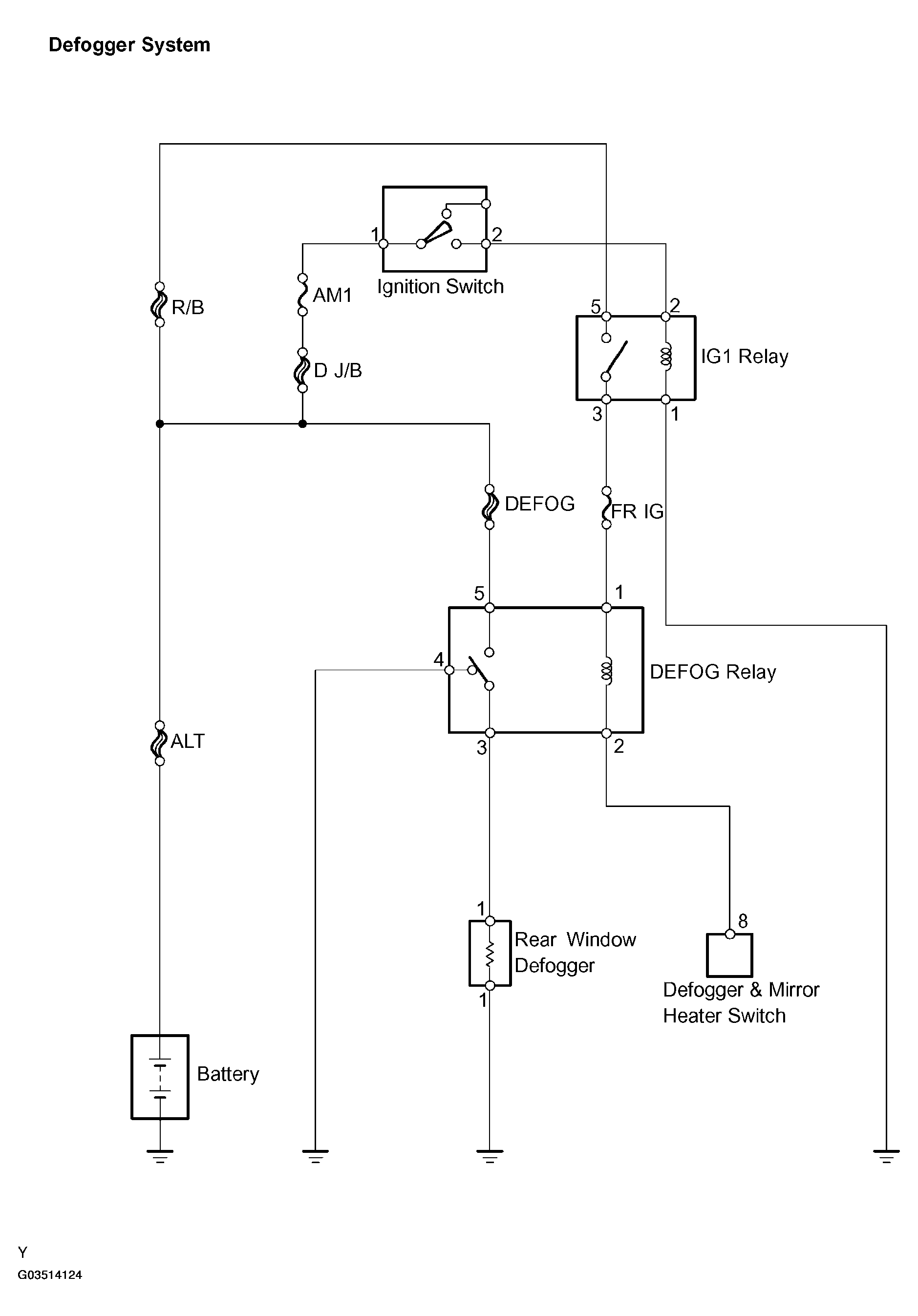

Fig 1: Window Defogger System Diagram (1 Of 2)
G03514124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Window Defogger System Diagram (2 Of 2)
G03514125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
